Product Details | RETAINING RING

5325-00-298-6563 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.

Part Alternates: MS1662462, MS16624-62, M1200BWPC10, M1212, N900P62, A3116826, AEA9621M, C2619REV2PCSP1712, C5502PCSP1712, S4700H3103823REV4PC145, S4700H3124871REV4PC145, S4700H3124873REV3PC145, SH62STPA, SK3931A, SP1712, TA510062, TA5100-62, TRUARC510062STL, TRUARC5100-62STL, MILR21248, D3210162, D32101-62, LCU1466S4700255196PC145, LCU1466S4700-255196PC145, 6014878, 601487-8, 641005, 641-005, 6652122, 7HE472, 80005, 98510062, 98-5100-62, 9L112A, 101746, 117488M, 11DCS275PC145, 11HCS221PC145, 11HCS223PC145, 11HCS225PC145, 11HCS237PC145, 274273, 310062, 3100-62 , 3621005P72, 362-1005P72, 3R4120, 484 768, 484768, 50027S3402925935PC112A, 510062, 5100-62, 510062S, 5100-62S, 510262, 5102-62, 5162, 51-62, 5325-00-298-6563, 00-298-6563, 5325002986563, 002986563

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-298-6563

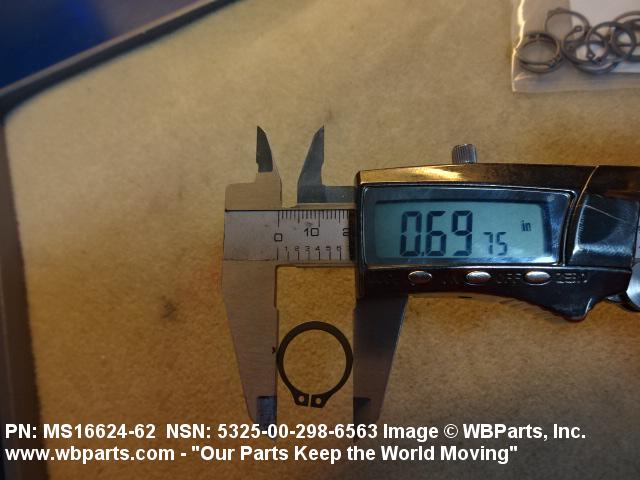

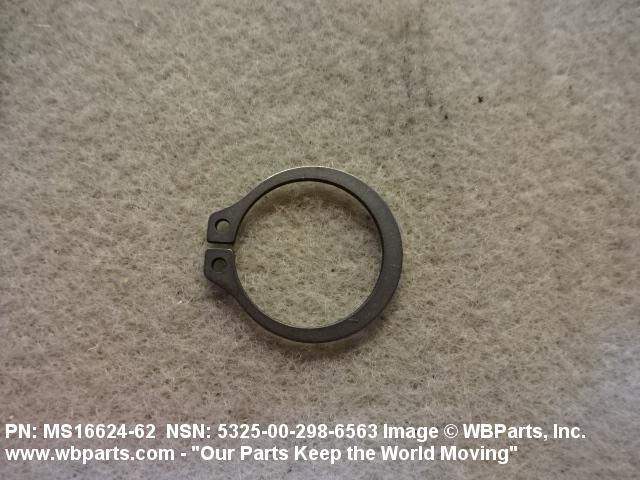

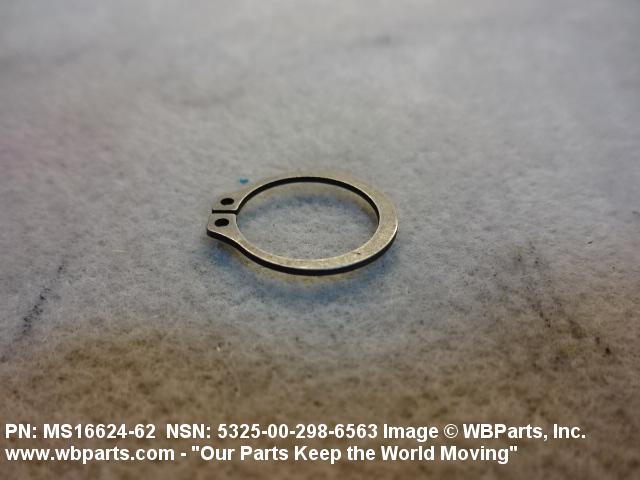

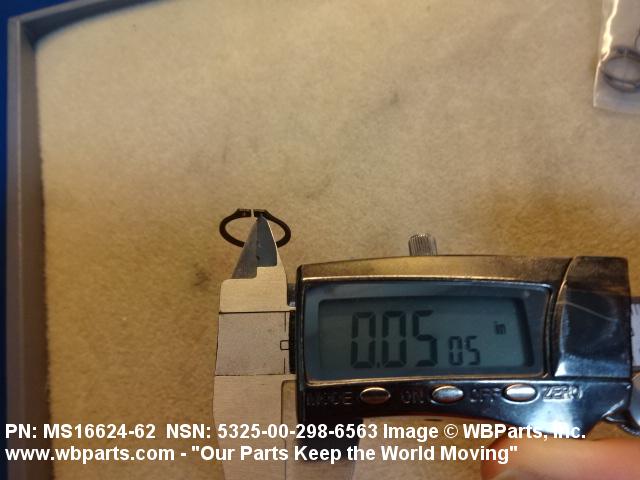

Drawings & Photos | NSN 5325-00-298-6563


Demand History | NSN 5325-00-298-6563

Part Number Request Date QTY Origin
510062 2024-09-248 4 United States
MS1662462 2024-05-145 1 US
484768 2021-03-78 1 United States
MS1662462 2020-10-290 120 Hong Kong
510062 2020-01-03 50 US
SH62STPA 2020-01-03 50 US
MS1662462 2018-03-65 20 Hong Kong
5325-00-298-6563 2017-04-118 20 DIBBS
5325-00-298-6563 2017-04-109 20 DIBBS
510062 2016-01-28 20 United States
641005 2015-10-292 1 US
5325-00-298-6563 2015-06-181 4 United States
5325-00-298-6563 2014-04-118 194 DIBBS
5100-62 2013-08-229 72 Canada
5325-00-298-6563 2013-07-185 194 DIBBS
5325-00-298-6563 2013-05-144 190 DIBBS
MILR21248 2013-04-112 5 MX
5325-00-298-6563 2013-03-81 199 DIBBS
5325-00-298-6563 2012-12-338 181 DIBBS
5325-00-298-6563 2012-06-170 100 DIBBS
510062 2011-03-63 1 UK
MILR21248 2011-02-47 24 us
510062 2010-11-326 6 United States

Cross Reference | NSN 5325-00-298-6563

Part Number Cage Code Manufacturer
101746 0B6Z5 OMATECH SERVICE LTD
117488M 64104 DRESSER, INC. DIV DRESSER WAUKESHA
11DCS275PC145 04579 AURORA PUMP A UNIT OF GENERAL SIGNAL CORP
11DCS275PC145 43491 GENERAL SIGNAL CORP
11HCS221PC145 04579 AURORA PUMP A UNIT OF GENERAL SIGNAL CORP
11HCS221PC145 43491 GENERAL SIGNAL CORP
11HCS223PC145 04579 AURORA PUMP A UNIT OF GENERAL SIGNAL CORP
11HCS223PC145 43491 GENERAL SIGNAL CORP
11HCS225PC145 04579 AURORA PUMP A UNIT OF GENERAL SIGNAL CORP
11HCS225PC145 43491 GENERAL SIGNAL CORP
11HCS237PC145 04579 AURORA PUMP A UNIT OF GENERAL SIGNAL CORP
11HCS237PC145 43491 GENERAL SIGNAL CORP
274273 24617 GENERAL MOTORS CORP
274273 97907 TEREX CORP
274273 K4285 TEREX EQUIPMENT LTD
3100-62 07382 ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP
3100-62 97464 TRUARC CO LLC
362-1005P72 99687 RAYTHEON CO EQUIPMENT DEVELOPMENT LAB
3R4120 11083 CATERPILLAR INC. DBA CATERPILLAR
484 768 77294 PIPER AIRCRAFT INC.
50027S3402925935PC112A 80064 NAVAL SHIP SYSTEMS COMMAND
51-62 80265 MARATHON STEEL CO SUB OF MARATHON MFG CO
5100-62 07382 ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP
5100-62 50870 ARNOLD A. SEMLER, INC. DBA ASSOCIATED INDUSTRIES
5100-62 60817 TRIUMPH/MAGNA MIXER CO
5100-62 66503 WOODWARD, INC. DBA WOODWARD
5100-62 79136 TRUARC COMPANY LLC DBA WALDES TRUARC
5100-62S 04579 AURORA PUMP A UNIT OF GENERAL SIGNAL CORP
5100-62S 43491 GENERAL SIGNAL CORP
5102-62 04579 AURORA PUMP A UNIT OF GENERAL SIGNAL CORP
5102-62 43491 GENERAL SIGNAL CORP
601487-8 13174 PARKER HANNIFIN CORP HOSE PRODUCTS DIV
641-005 04522 CLAUSING CORP
6652122 05228 PTI TECHNOLOGIES INC.
7HE472 45152 OSHKOSH CORPORATION
80005 21924 RENNER MFG CO
98-5100-62 79410 LIBERTY VENTURES INTI LLC
9L112A 60817 TRIUMPH/MAGNA MIXER CO
A3116826 80064 NAVAL SHIP SYSTEMS COMMAND
AEA9621M 82796 COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE
C2619REV2PCSP1712 24785 VICKERS INC
C5502PCSP1712 24785 VICKERS INC
D32101-62 10988 CNH INDUSTRIAL AMERICA LLC
LCU1466S4700-255196PC145 80064 NAVAL SHIP SYSTEMS COMMAND
M1200BWPC10 12763 DYNALEC CORPORATION
M1200BWPC10 20049 THE ELECTRIC TACHOMETER CORP.
M1212 12763 DYNALEC CORPORATION
M1212 20049 THE ELECTRIC TACHOMETER CORP.
MILR21248 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS16624-62 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N900P62 09172 GENERAL ELECTRIC CO MATERIALS INFORMATION SERVICES
S4700H3103823REV4PC145 80064 NAVAL SHIP SYSTEMS COMMAND
S4700H3124871REV4PC145 80064 NAVAL SHIP SYSTEMS COMMAND
S4700H3124873REV3PC145 80064 NAVAL SHIP SYSTEMS COMMAND
SH62STPA 36NS5 MOTION INDUSTRIES, INC. DBA MOTION INDUSTRIES
SK3931A 57533 STEEGO CORP
SP1712 24785 VICKERS INC
TA5100-62 98182 H.E.F. CORPORATION
TRUARC5100-62STL 60817 TRIUMPH/MAGNA MIXER CO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-298-6563

Technical Data | NSN 5325-00-298-6563

Characteristic Specifications
MATERIAL STEEL FED FED STD 66 FS-1066 TO FS-1090
STRENGTH RATING NOT RATED
MATERIAL HARDNESS RATING 66.0 ROCKWELL SUPERFICIAL 30-N MINIMUM AND 71.0 ROCKWELL SUPERFICIAL 30-N MAXIMUM
CASEHARDENING INDICATOR NOT CASEHARDENED
RING STYLE A41 EXTERNAL

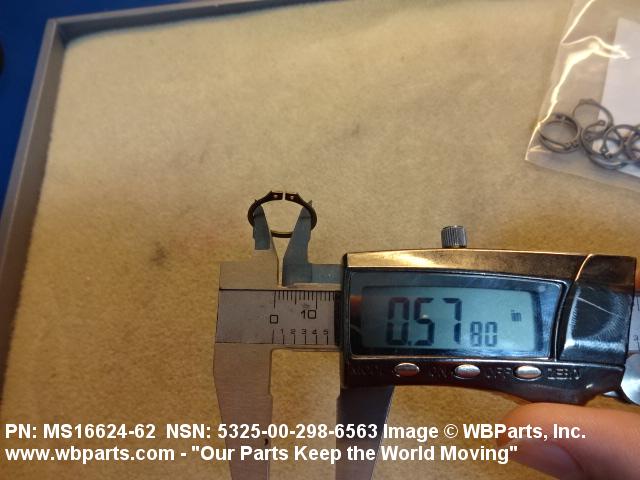

INSIDE DIAMETER 0.579 INCHES NOMINAL
CROSS-SECTIONAL SHAPE STYLE D4 RECTANGULAR

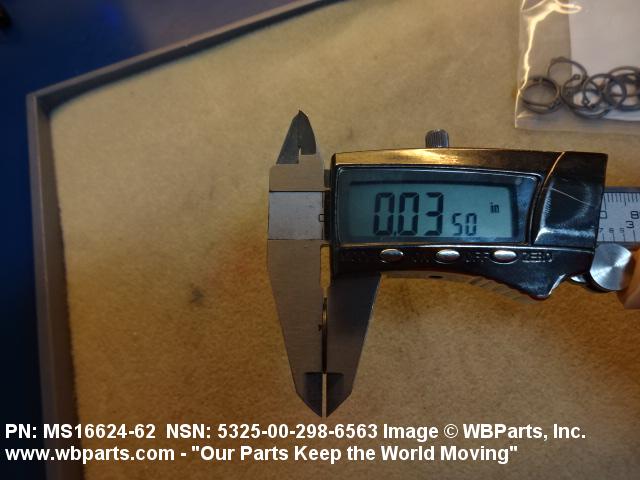

MAJOR THICKNESS 0.035 INCHES NOMINAL
USAGE DESIGN EXTERNAL
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MILR21248
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS16624-62

Restrictions/Controls & Freight Information | NSN 5325-00-298-6563

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 095190 HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating Q 70.0
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5325-00-298-6563

Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
HD : Each
Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
HD : Each
Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Combat Essentiality Code5Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management CodeBAll CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code2ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification CodeKReserved
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityZNonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
HD : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
HD : Each
