Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-291-8351 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: 2500B2, 5325-00-291-8351, 00-291-8351, 5325002918351, 002918351
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-291-8351 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

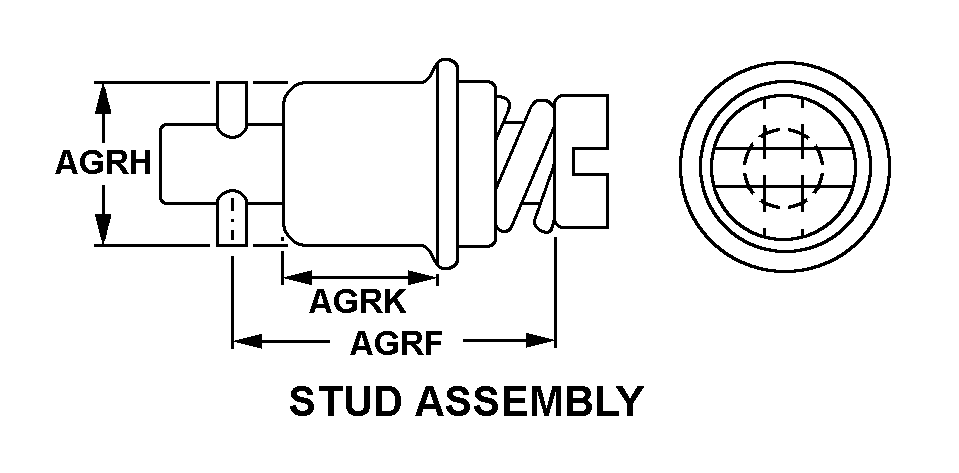

Drawings & Photos | NSN 5325-00-291-8351
Cross Reference | NSN 5325-00-291-8351
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2500B2 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-291-8351
Technical Data | NSN 5325-00-291-8351
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| TURNLOCK STUD HEAD STYLE | 3 FLAT FILLISTER |
| DIAMETER | 0.240 INCHES NOMINAL |
| STUD HEAD HEIGHT | 0.066 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | 1 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.443 INCHES MINIMUM AND 0.453 INCHES MAXIMUM |
| EYELET OUTSIDE DIAMETER | 0.265 INCHES MINIMUM AND 0.271 INCHES MAXIMUM |
| EYELET LENGTH | 0.265 INCHES NOMINAL |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | 0.040 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| MANUFACTURERS CODE | 71286 |
| DESIGN CONTROL REFERENCE | 2500B2 |
