NSN 5325-00-290-8240 BACS21ED7W, BACS21X7W, CFN 4002-7W
Product Details | TURNLOCK FASTENER STUD ASSEMBLY

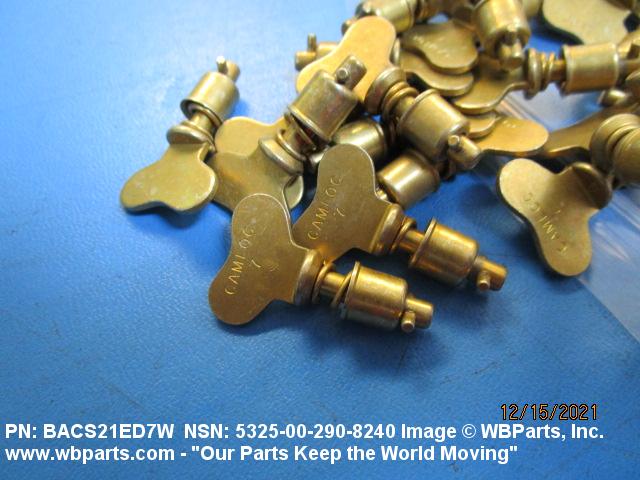

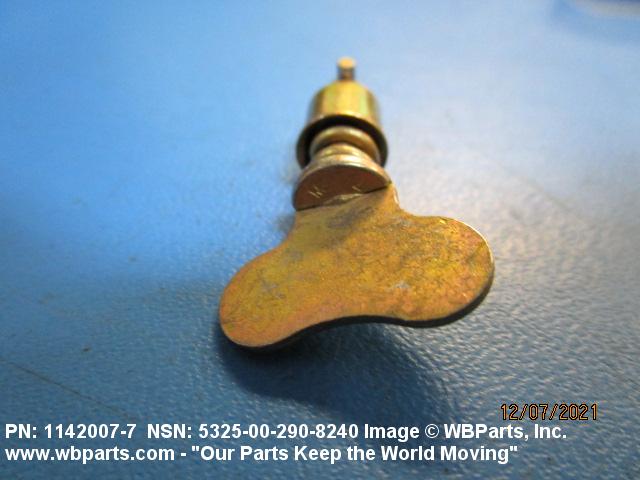

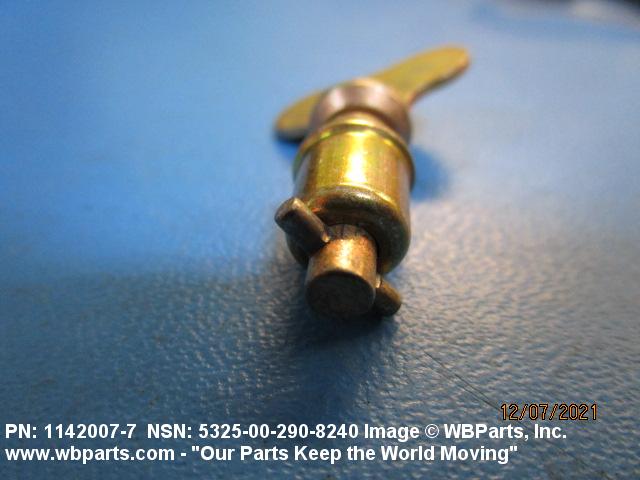

5325-00-290-8240 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: BACS21ED7W, BACS21X7W, CFN 4002-7W, CFN40027W, 11420077, 1142007-7, 40027W, 4002-7W, 53557, 8743897, 8821203, 5325-00-290-8240, 00-290-8240, 5325002908240, 002908240
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-290-8240 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-00-290-8240
Demand History | NSN 5325-00-290-8240
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-290-8240 | 2024-03-61 | 5 | US |
| 1142007-7 | 2022-03-89 | 1996 | DIBBS |
| 4002-7W | 2022-03-89 | 1996 | DIBBS |
| 1142007-7 | 2022-02-46 | 160 | DIBBS |
| 4002-7W | 2022-02-46 | 160 | DIBBS |
| 1142007-7 | 2022-02-33 | 2725 | DIBBS |
| 4002-7W | 2022-02-33 | 2725 | DIBBS |
| 11420077 | 2021-11-323 | 175 | Malaysia |
| 11420077 | 2021-11-306 | 2500 | United States |
| 5325-00-290-8240 | 2021-08-231 | 175 | Malaysia |
| 5325-00-290-8240 | 2021-06-160 | 25 | Malaysia |
| 40027W | 2021-06-159 | 25 | Malaysia |
| 40027W | 2020-09-267 | 21 | United States |
| 40027W | 2020-08-231 | 50 | United States |
| 5325-00-290-8240 | 2016-07-197 | 1418 | DIBBS |
| 5325-00-290-8240 | 2016-07-189 | 1418 | DIBBS |
| 5325-00-290-8240 | 2013-09-259 | 250 | United States |
| 5325-00-290-8240 | 2010-07-196 | 310 | United States |
| 5325-00-290-8240 | 2009-04-112 | 1918 | DIBBS |
| 5325-00-290-8240 | 2008-08-219 | 25 | US |
| 5325-00-290-8240 | 2008-05-127 | 1225 | DIBBS |
| 5325-00-290-8240 | 2008-01-28 | 768 | DIBBS |
Cross Reference | NSN 5325-00-290-8240
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1142007-7 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| 4002-7W | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 4002-7W | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 53557 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 8743897 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 8821203 | 19203 | PICATINNY ARSENAL |
| BACS21ED7W | 81205 | THE BOEING COMPANY DBA BOEING |
| BACS21X7W | 81205 | THE BOEING COMPANY DBA BOEING |
| CFN 4002-7W | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
