Product Details | RETAINING RING
5325-00-286-9391 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: 2484166, 887164, 5325-00-286-9391, 00-286-9391, 5325002869391, 002869391
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-286-9391 | 07623 ( RING, RETAINING ) |
Drawings & Photos | NSN 5325-00-286-9391
Demand History | NSN 5325-00-286-9391
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-286-9391 | 2016-08-228 | 84 | DIBBS |
| 5325-00-286-9391 | 2015-09-266 | 100 | DIBBS |
| 5325-00-286-9391 | 2015-09-250 | 100 | DIBBS |
| 2484166 | 2013-09-255 | 4 | Singapore |
| 5325-00-286-9391 | 2011-10-304 | 40 | DIBBS |
| 5325-00-286-9391 | 2011-09-245 | 20 | DIBBS |
| 5325-00-286-9391 | 2011-02-48 | 40 | DIBBS |
| 5325-00-286-9391 | 2010-07-204 | 16 | DIBBS |
| 5325-00-286-9391 | 2009-09-267 | 30 | DIBBS |
| 5325-00-286-9391 | 2009-09-259 | 30 | DIBBS |
| 5325-00-286-9391 | 2009-07-210 | 12 | DIBBS |
| 5325-00-286-9391 | 2009-05-150 | 12 | DIBBS |
| 5325-00-286-9391 | 2008-10-282 | 6 | DIBBS |
| 5325-00-286-9391 | 2008-08-218 | 6 | DIBBS |
| 5325-00-286-9391 | 2008-07-212 | 25 | DIBBS |
Cross Reference | NSN 5325-00-286-9391
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2484166 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 887164 | 3H889 | PARKER-HANNIFIN CORPORATION DBA FLUID SYSTEMS DIVISION |
| 887164 | 59211 | PARKER-HANNIFIN CORPORATION DBA CUSTOMER SUPPORT MILITARY |
| 887164 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| 887164 | 99551 | GOODRICH CORPORATION DIV POWER TRANSMISSION SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-286-9391
Related Products | NSN 5325-00-286-9391
Technical Data | NSN 5325-00-286-9391
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL,MIL MIL-S-7947 TYPE DESIGNATOR,ANY ACCEPTABLE |
| SURFACE TREATMENT | CADMIUM PLATED |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | 43.0 ROCKWELL C MINIMUM AND 48.0 ROCKWELL C MAXIMUM |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A17 INTERNAL STEPPED |

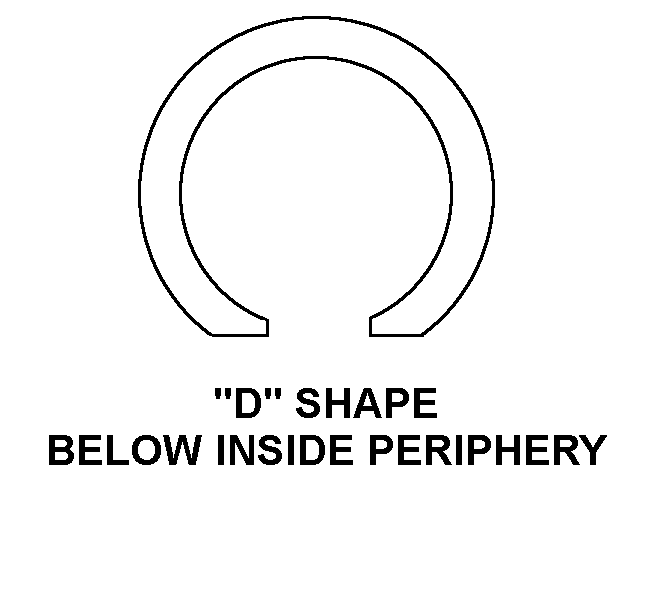

| END STYLE | C6 D SHAP BELOW INSIDE PERIPHERY |
| INSIDE DIAMETER | 4.064 INCHES NOMINAL |
| OUTSIDE DIAMETER | 4.250 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | D6 ROUNDED CORNERS |
| MAJOR THICKNESS | 0.063 INCHES NOMINAL |
| USAGE DESIGN | INTERNAL |
| MANUFACTURERS CODE | 99551 |
| DESIGN CONTROL REFERENCE | 887164 |
