NSN 5325-00-285-6247 00-285-6247, 002856247
Product Details | SNAP FASTENER SOCKET
5325-00-285-6247 A component of a FASTENER, SNAP; which is designed as a receptacle for a STUD, SNAP FASTENER. It may be furnished with CAP, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER.
Part Alternates: 5325-00-285-6247, 00-285-6247, 5325002856247, 002856247
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-285-6247 | 16559 ( SOCKET, SNAP FASTENER ) |

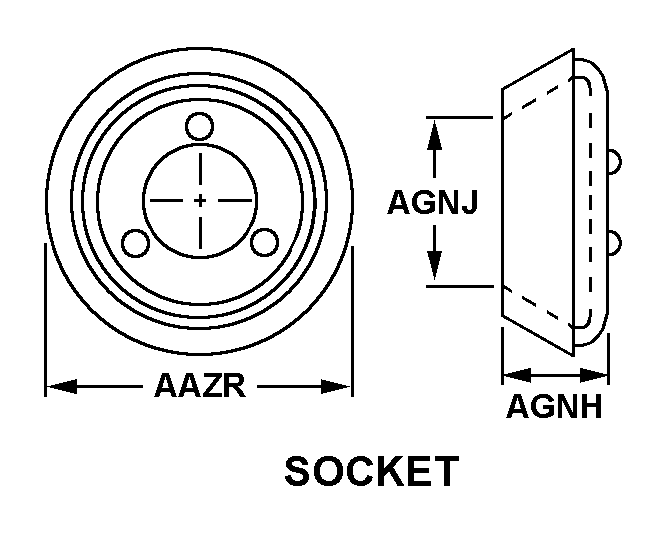

Drawings & Photos | NSN 5325-00-285-6247
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-285-6247
Technical Data | NSN 5325-00-285-6247
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BARREL |
| SNAP FASTENER SOCKET STYLE | 1 SOCKET |
| MAJOR DIAMETER | 0.206 INCHES MINIMUM AND 0.218 INCHES MAXIMUM |
| SOCKET OVERALL HEIGHT | 0.575 INCHES MINIMUM AND 0.585 INCHES MAXIMUM |
| OPENING DIAMETER | 0.440 INCHES MINIMUM AND 0.455 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5325-00-285-6247
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
