NSN 5325-00-282-7447 XX78318, XX-78318, 50
Product Details | TURNBUTTON FASTENER STUD
5325-00-282-7447 A fastening device, oval in shape, the top half of which, after having been inserted through a SOCKET, TURNBUTTON FASTENER, must be turned to act as a retainer. May include a CLINCH PLATE, TURNBUTTON FASTENER. For items furnished with SOCKET, TURNBUTTON FASTENER see FASTENER, TURNBUTTON.
Part Alternates: XX78318, XX-78318, 50, 5325-00-282-7447, 00-282-7447, 5325002827447, 002827447
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-282-7447 | 16498 ( STUD, TURNBUTTON FASTENER ) |
Drawings & Photos | NSN 5325-00-282-7447
Demand History | NSN 5325-00-282-7447
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-282-7447 | 2018-11-318 | 1 | DIBBS |
| 5325-00-282-7447 | 2017-06-169 | 6 | DIBBS |
| 5325-00-282-7447 | 2016-05-126 | 1 | DIBBS |
| 5325-00-282-7447 | 2016-04-118 | 1 | DIBBS |
| 5325-00-282-7447 | 2014-07-202 | 2 | DIBBS |
| 50 | 2008-09-255 | 20 | Argentina |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-282-7447
Related Products | NSN 5325-00-282-7447
Technical Data | NSN 5325-00-282-7447
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL AND BRASS BODY AND STEEL SPRING PIN |
| SURFACE TREATMENT | ENAMEL OVERALL |
| SOCKET ACCOMMODATED QUANTITY | 2 |

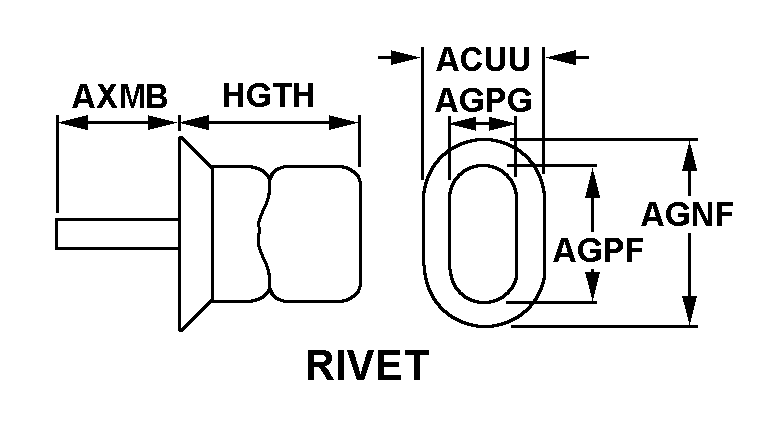

| TURNBUTTON STUD STYLE | 3 RIVET |
| BASE WIDTH | 0.547 INCHES NOMINAL |
| BASE LENGTH | 0.781 INCHES NOMINAL |
| BUTTON WIDTH | 0.531 INCHES NOMINAL |
| BUTTON THICKNESS | 0.312 INCHES NOMINAL |
| END LENGTH | 0.188 INCHES NOMINAL |
| HEIGHT | 0.875 INCHES NOMINAL |
| FABRICATION METHOD | STAMPED |
Restrictions/Controls & Freight Information | NSN 5325-00-282-7447
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-282-7447
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
