NSN 5325-00-281-6536 4F2200, 00-281-6536, 002816536
Product Details | RETAINING RING
5325-00-281-6536 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: 4F2200, 5325-00-281-6536, 00-281-6536, 5325002816536, 002816536
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-281-6536 | 07623 ( RING, RETAINING ) |

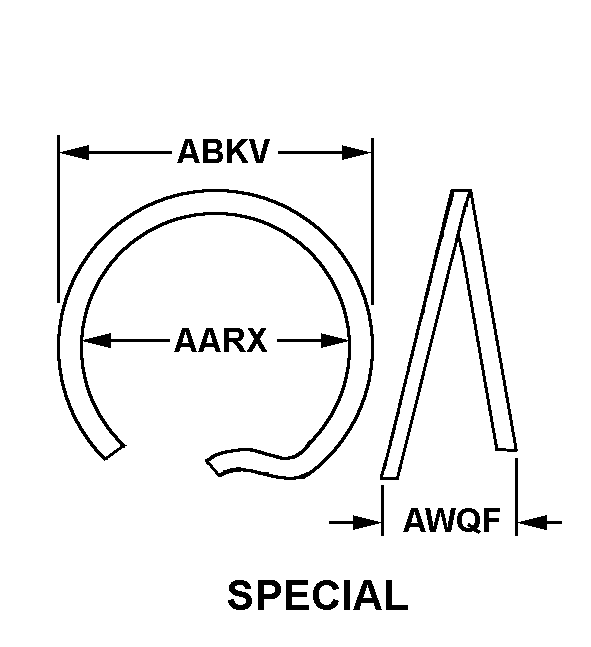

Drawings & Photos | NSN 5325-00-281-6536
Cross Reference | NSN 5325-00-281-6536
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4F2200 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-281-6536
Technical Data | NSN 5325-00-281-6536
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STRENGTH RATING | 200000.0 POUNDS PER SQUARE INCH MINIMUM TENSILE |
| MATERIAL HARDNESS RATING | 42.0 ROCKWELL C MINIMUM AND 50.0 ROCKWELL C MAXIMUM |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A75 SPECIAL |
| INSIDE DIAMETER | 4.500 INCHES MINIMUM AND 4.626 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 4.677 INCHES MINIMUM AND 4.802 INCHES MAXIMUM |
| END PLAY TAKEUP | 0.625 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | D1 ROUND |
| MATERIAL DIAMETER | 0.177 INCHES NOMINAL |
| USAGE DESIGN | EXTERNAL |
