NSN 5325-00-281-4378 49348, 00-281-4378, 002814378
Product Details | TRIM SPRING TENSION FASTENER
5325-00-281-4378 A fastening device which may have a finished or unfinished cap. It is specifically designed to fasten a trim panel, molding, or the like, to another surface by means of resilient prongs which are pressed into a hole and retained by the holding action of the prongs against the edges of the hole. Excludes BUTTON, PLUG.
Part Alternates: 49348, 5325-00-281-4378, 00-281-4378, 5325002814378, 002814378
Hardware and Abrasives | Fastening Devices
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 01 JAN 1963 | 00-281-4378 | 18517 ( FASTENER, SPRING TENSION, TRIM ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-281-4378
Related Products | NSN 5325-00-281-4378
Technical Data | NSN 5325-00-281-4378
Characteristic | Specifications |
---|---|
MATERIAL | COPPER ALLOY CAP STEEL STUD |
SURFACE TREATMENT | CADMIUM OVERALL |

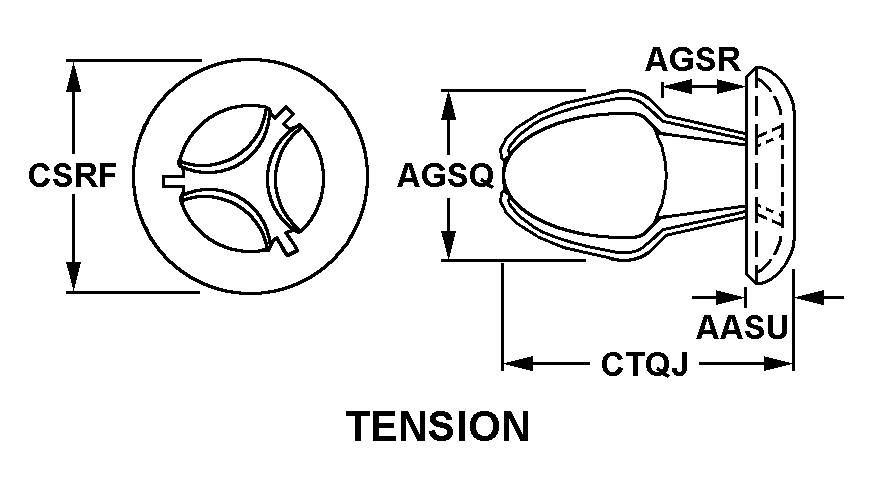

FASTENER STYLE | BH7 TENSION |
HEAD HEIGHT | 0.109 INCHES NOMINAL |
LARGEST PRONG WIDTH | 0.255 INCHES NOMINAL |
LENGTH FROM HEAD TO SHOULDER | 0.125 INCHES NOMINAL |
FASTENER OUTSIDE DIAMETER | 0.516 INCHES NOMINAL |
FASTENER OVERALL LENGTH | 0.391 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5325-00-281-4378
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 094560 | FASTENERS BOX/PAIL/TUB NOI STEEL |
Less than car load rating | ||
Less than truck load rating | U | 50.0 |
Water commodity Code | 713 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-281-4378
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
