NSN 5325-00-276-6343 MS3548923, MS35489-23, MS3548923S

Product Details | NONMETALLIC GROMMET

5325-00-276-6343 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.

Part Alternates: MS3548923, MS35489-23, MS3548923S, MS35489-23S, MILG3036, RC26, 10119081 , 101873, 20F57D37, 3010139, 33G1724, 5325PL0729172 , 5325-00-276-6343, 00-276-6343, 5325002766343, 002766343

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-276-6343	33729 ( GROMMET, NONMETALLIC )

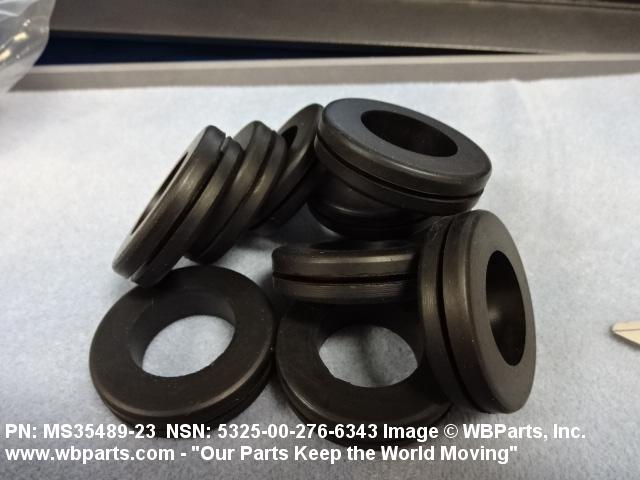

Drawings & Photos | NSN 5325-00-276-6343

Part Number	Request Date	QTY	Origin
MS3548923	2021-04-111	50	Taiwan
5325-00-276-6343	2019-02-34	1440	DIBBS
5325-00-276-6343	2018-11-305	459	DIBBS
MS3548923	2018-09-268	10	US
5325-00-276-6343	2018-01-17	1352	DIBBS
5325-00-276-6343	2018-01-07	1352	DIBBS
5325-00-276-6343	2017-11-317	2485	DIBBS
5325-00-276-6343	2017-06-173	2485	DIBBS
5325-00-276-6343	2017-04-116	515	DIBBS
5325-00-276-6343	2017-04-108	515	DIBBS
5325-00-276-6343	2016-12-346	610	DIBBS
5325-00-276-6343	2016-08-222	533	DIBBS
5325-00-276-6343	2014-08-227	100	US
MS3548923	2014-03-73	35	us
MS3548923	2014-03-73	70	us
MS3548923	2014-03-73	105	us
MS35489-23	2012-12-346	5	US
MS3548923	2012-12-339	5	US
MS3548923	2012-12-339	5	US
MS3548923	2012-11-335	5	United States
MS3548923	2012-11-335	5	United States
5325-00-276-6343	2012-06-180	2400	DIBBS
5325-00-276-6343	2011-10-276	1079	DIBBS
5325-00-276-6343	2011-01-31	1	DIBBS
MS3548923	2010-12-361	25	United States
5325-00-276-6343	2008-12-343	5110	DIBBS
5325-00-276-6343	2008-09-248	100	DIBBS
5325-00-276-6343	2008-05-148	5331	DIBBS

Cross Reference | NSN 5325-00-276-6343

Part Number	Cage Code	Manufacturer
101873	81795	ALLIANZ SWEEPER COMPANY
20F57D37	27315	MORRIS MATERIAL HANDLING, INC.
3010139	001JK	EMBRAER S/A
3010139	FB459	EMBRAER AVIATION INTERNATIONAL
3010139	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
33G1724	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
33G1724	53711	NAVAL SEA SYSTEMS COMMAND
5325002766343	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5325PL0729172	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
MILG3036	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS35489&23S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35489-23	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35489-23S	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
RC26	77969	RUBBERCRAFT CORPORATION OF CALIFORNIA, LTD

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-276-6343

Compare

Related Products | NSN 5325-00-276-6343

5325-00-276-6344, 5325-00-276-6349, 5325-00-276-6352, 5325-00-276-7761, 5325-00-276-7762

Technical Data | NSN 5325-00-276-6343

Characteristic	Specifications
MATERIAL	RUBBER SYNTHETIC OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM D2000 BG515A14B24C3E036F19Z ASSN STD SINGLE MATERIAL RESPONSE OVERALL
COLOR	BLACK OVERALL
GROMMET STYLE	1 ROUND

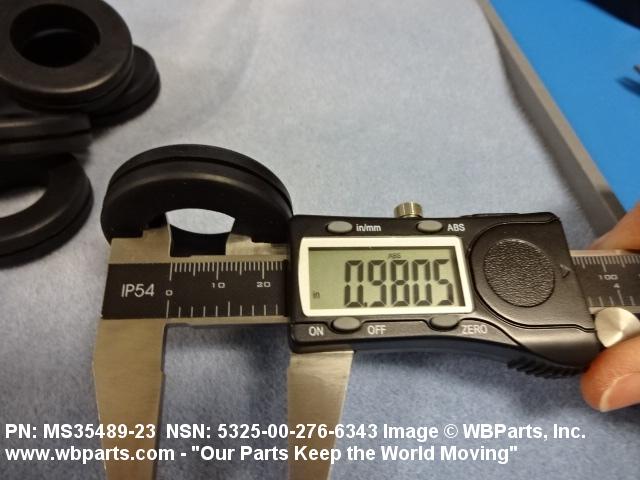

HOLE DIAMETER	0.984 INCHES MINIMUM AND 1.016 INCHES MAXIMUM

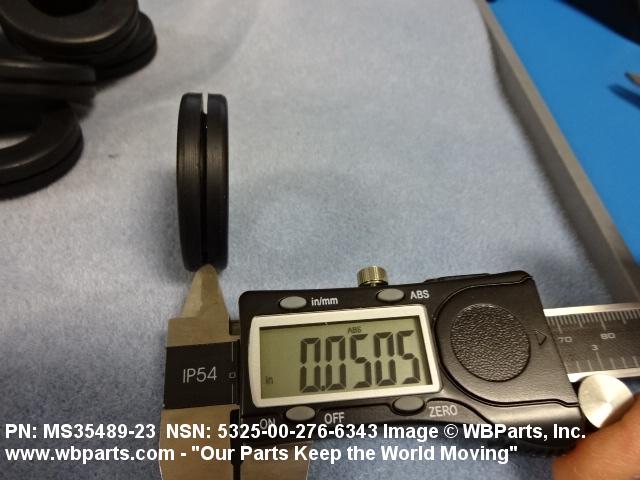

GROOVE WIDTH	0.047 INCHES MINIMUM AND 0.079 INCHES MAXIMUM

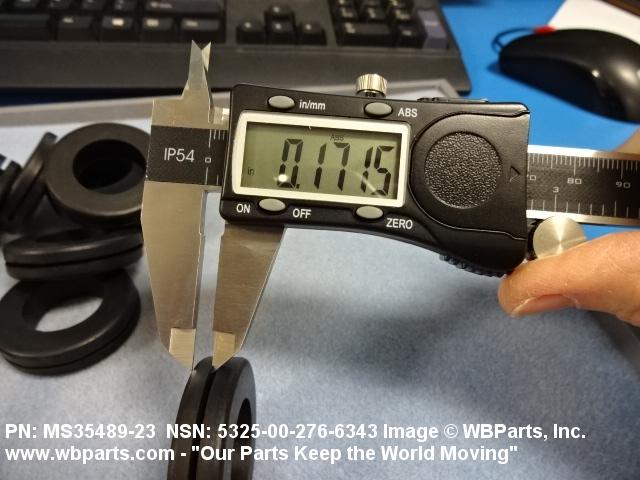

FLANGE THICKNESS	0.157 INCHES MINIMUM AND 0.219 INCHES MAXIMUM

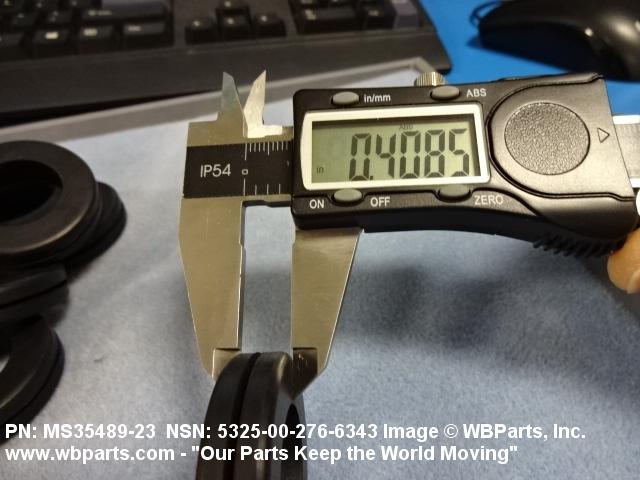

OVERALL HEIGHT	0.407 INCHES MINIMUM AND 0.469 INCHES MAXIMUM

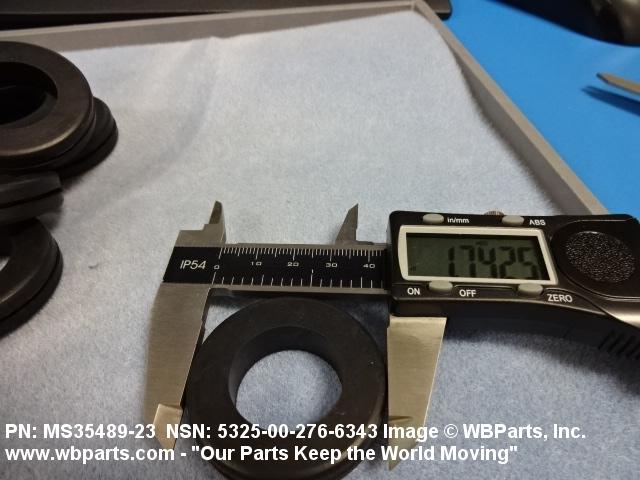

LARGE FLANGE OUTSIDE DIAMETER	1.719 INCHES MINIMUM AND 1.781 INCHES MAXIMUM
GROOVE OUTSIDE DIAMETER	1.359 INCHES MINIMUM AND 1.391 INCHES MAXIMUM
GROMMET CONSTRUCTION TYPE	SOLID
NONMETALLIC HARDNESS RATING	NOT RATED
FEATURES PROVIDED	COOLANT RESISTANT AND OIL RESISTANT
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MILG3036
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS35489-23

Restrictions/Controls & Freight Information | NSN 5325-00-276-6343

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	S	60 months
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	156600	PLASTIC/RUBBER ARTICLE VIZ:
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-00-276-6343

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	S	60 months
Purchasing	QTY UOM	1 PG : Package

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	S	60 months
Purchasing	QTY UOM	1 PG : Package

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	S	60 months
Purchasing	QTY UOM	1 PG : Package

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	S	60 months
Purchasing	QTY UOM	1 PG : Package
