Product Details | RETAINING RING

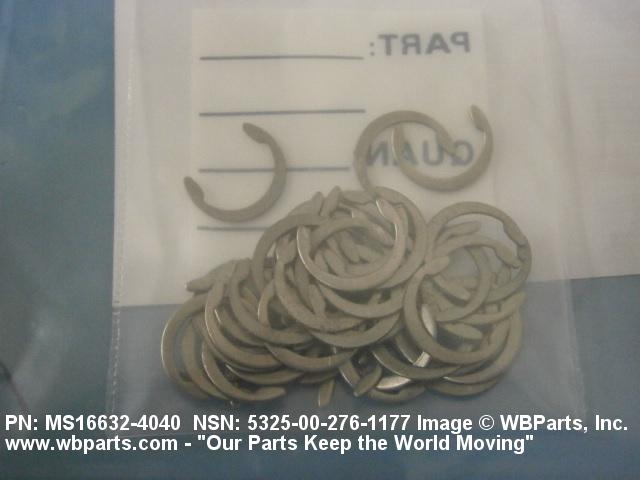

5325-00-276-1177 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.

Part Alternates: MS166324040, MS16632-4040, 200040SS2, 2000-40-SS2, 510340H, 5103-40H, 5325-00-276-1177, 00-276-1177, 5325002761177, 002761177

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1961 00-276-1177

Drawings & Photos | NSN 5325-00-276-1177


Demand History | NSN 5325-00-276-1177

Part Number Request Date QTY Origin
5325-00-276-1177 2014-07-187 962 DIBBS
5325-00-276-1177 2013-10-275 193 DIBBS
5325-00-276-1177 2013-09-260 193 DIBBS
MS166324040 2011-12-362 28 United States
5325-00-276-1177 2008-12-347 550 DIBBS
510340H 2008-05-142 1000 US

Cross Reference | NSN 5325-00-276-1177

Part Number Cage Code Manufacturer
2000-40-SS2 07382 ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP
2000-40-SS2 97464 TRUARC CO LLC
5103-40H 07382 ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP
5103-40H 79136 TRUARC COMPANY LLC DBA WALDES TRUARC
MS16632-4040 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-276-1177

Technical Data | NSN 5325-00-276-1177

Characteristic Specifications
MAJOR THICKNESS 0.025 INCHES NOMINAL
INSIDE DIAMETER 0.359 INCHES NOMINAL
CASEHARDENING INDICATOR NOT CASEHARDENED
CROSS-SECTIONAL SHAPE STYLE RECTANGULAR
SURFACE TREATMENT PASSIVATED, QQ-P-35
MATERIAL HARDNESS RATING 82.0 ROCKWELL SUPERFICIAL 15-N MINIMUM AND 86.0 ROCKWELL SUPERFICIAL 15-N MAXIMUM
USAGE DESIGN EXTERNAL
RING STYLE C
MATERIAL STEEL, AMS 5520
