NSN 5325-00-264-2246 FX1015583, FX10-1558-3, FX1015583P
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-264-2246 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: FX1015583, FX10-1558-3, FX1015583P, FX10-1558-3P, 11069896-1, 41310001, 4131-0001, 5325-00-264-2246, 00-264-2246, 5325002642246 , 110698961, 002642246
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 JAN 1968 | 00-264-2246 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

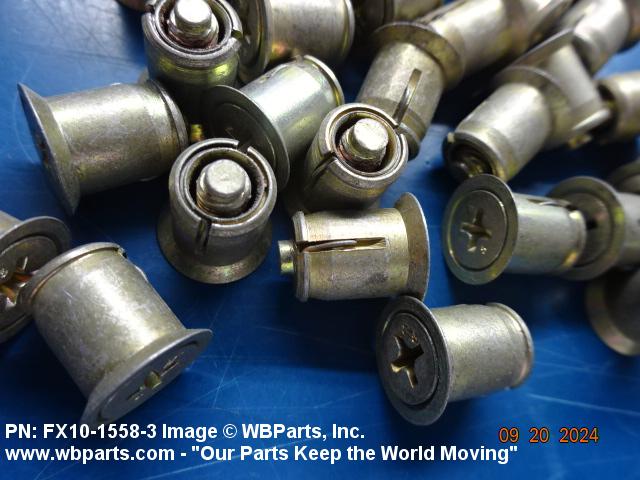

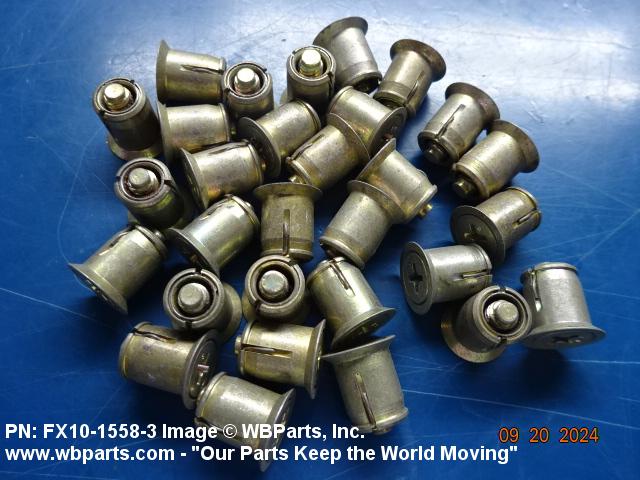

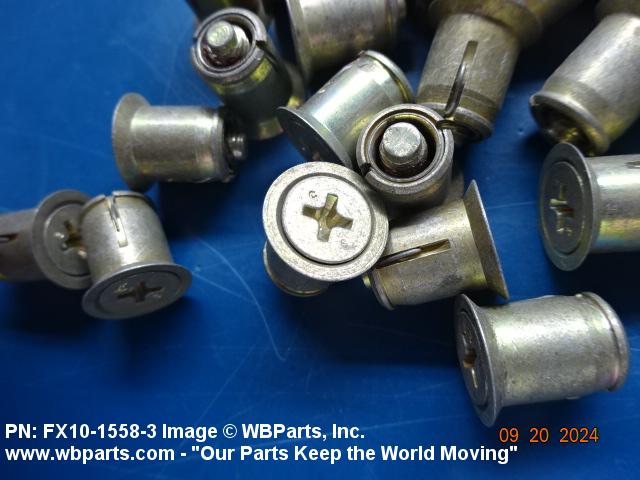

Drawings & Photos | NSN 5325-00-264-2246
Demand History | NSN 5325-00-264-2246
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-264-2246 | 2024-10-291 | 20 | us |
| 5325-00-264-2246 | 2024-08-241 | 30 | us |
| FX10-1558-3P | 2024-01-18 | 400 | DIBBS |
| FX10-1558-3P | 2023-11-333 | 167 | DIBBS |
| FX10-1558-3P | 2023-11-318 | 167 | DIBBS |
| FX10-1558-3P | 2022-04-108 | 290 | DIBBS |
| FX10-1558-3P | 2022-04-95 | 290 | DIBBS |
| FX10-1558-3P | 2021-07-192 | 101 | DIBBS |
| FX10-1558-3P | 2021-02-46 | 90 | DIBBS |
| FX10-1558-3P | 2020-11-313 | 150 | DIBBS |
| 5325-00-264-2246 | 2020-08-225 | 2 | US |
| 5325-00-264-2246 | 2019-12-349 | 40 | us |
| FX10-1558-3P | 2014-06-157 | 50 | United States |
| 5325-00-264-2246 | 2011-06-157 | 1210 | DIBBS |
| 5325-00-264-2246 | 2011-04-112 | 1060 | DIBBS |
| 5325-00-264-2246 | 2009-07-191 | 1160 | DIBBS |
| 5325-00-264-2246 | 2009-05-134 | 2747 | DIBBS |
| 5325-00-264-2246 | 2008-11-316 | 1291 | DIBBS |
| 5325-00-264-2246 | 2008-07-189 | 986 | DIBBS |
| 5325-00-264-2246 | 2008-05-140 | 1154 | DIBBS |
| 5325-00-264-2246 | 2008-02-35 | 710 | DIBBS |
| FX1015583P | 2007-07-197 | 25 | us |
Cross Reference | NSN 5325-00-264-2246
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11069896-1 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 4131-0001 | 19397 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 4131-0001 | 63409 | TREMETRICS INC DIV OF FINNIGAN |
| FX10-1558-3 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| FX10-1558-3P | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-264-2246
Related Products | NSN 5325-00-264-2246
Technical Data | NSN 5325-00-264-2246
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 EJECTOR SPRING STEEL GROMMET STEEL COMP 4037 STUD |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-423 FED SPEC SINGLE MATERIAL RESPONSE EJECTOR SPRING MIL-S-5626 FED SPEC SINGLE MATERIAL RESPONSE GROMMET ASTM A 322 ASSN STD 1ST MATERIAL RESPONSE OR ASTM A331 ASSN STD 2ND MATERIAL RESPONSE STUD |
| SURFACE TREATMENT | PASSIVATE EJECTOR SPRING CADMIUM AND CHROMATE GROMMET CADMIUM AND CHROMATE STUD |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE EJECTOR SPRING QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE GROMMET QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE STUD |
| TURNLOCK STUD HEAD STYLE | 1 FLAT COUNTERSUNK |
| DIAMETER | 0.373 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| STUD ASSEMBLY STYLE | 15 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.550 INCHES NOMINAL |
| EYELET OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |
| EYELET LENGTH | 0.490 INCHES NOMINAL |
| SECURING DEVICE TYPE | RING |
| DRIVE TYPE | CROSS RECESS |
| MATERIAL ACCOMMODATED THICKNESS | 0.291 INCHES MINIMUM AND 0.360 INCHES MAXIMUM |
| SPECIAL FEATURES | FLOATING TYPE |
| MANUFACTURERS CODE | 29372 |
| DESIGN CONTROL REFERENCE | FX10-1558-3P |
Restrictions/Controls & Freight Information | NSN 5325-00-264-2246
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-264-2246
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
