NSN 5325-00-263-5915 MS166244031, MS16624-4031, A85131
Product Details | RETAINING RING
5325-00-263-5915 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: MS166244031, MS16624-4031, A85131, A851-31, PT809S4103248399ALT3PC69, PT809S4103-248399ALT3PC69, 907766K35, 289544, 28954-4, 31712369, 3171-23-69, 510031H, 5100-31H, 510031W, 5100-31W, 5325-00-263-5915, 00-263-5915, 5325002635915, 002635915
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-263-5915 | 07623 ( RING, RETAINING ) |

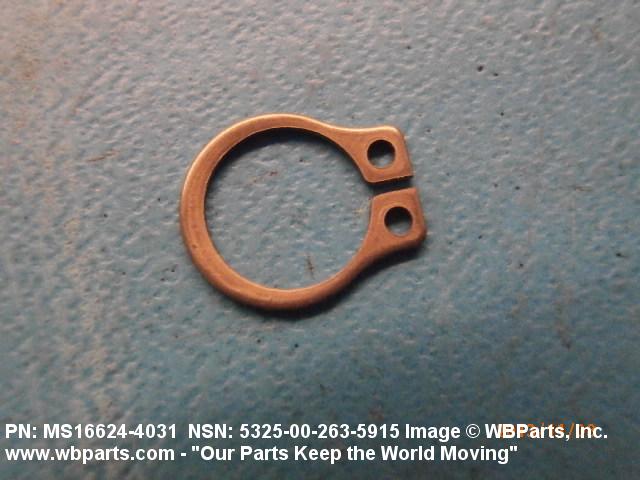

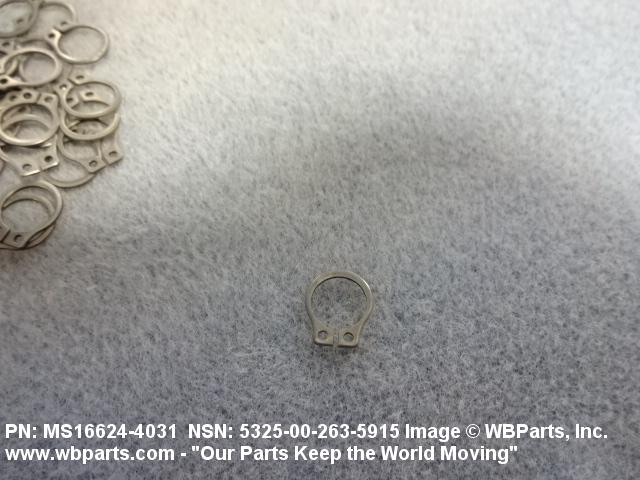

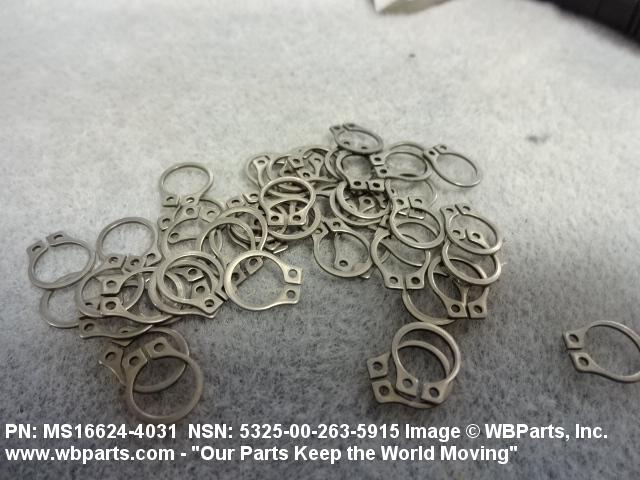

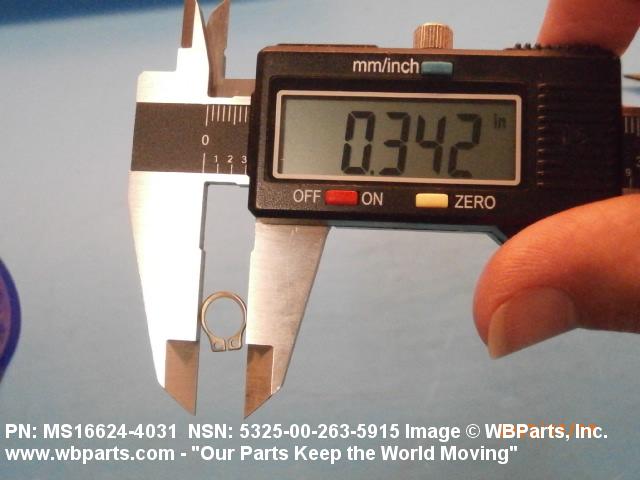

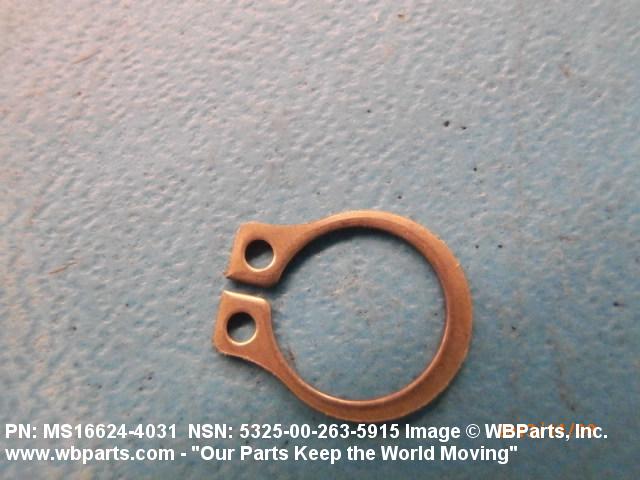

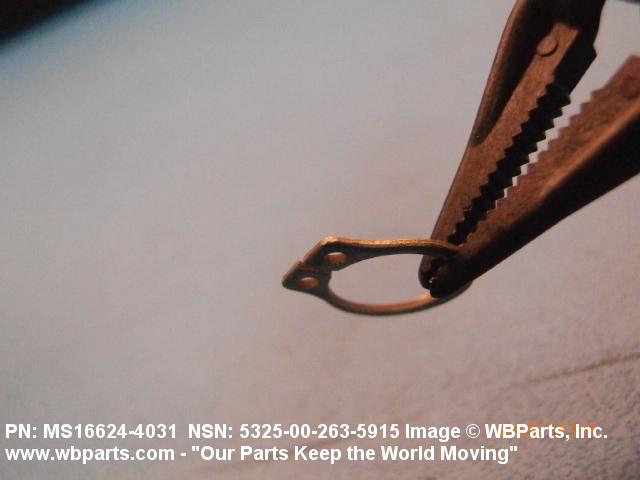

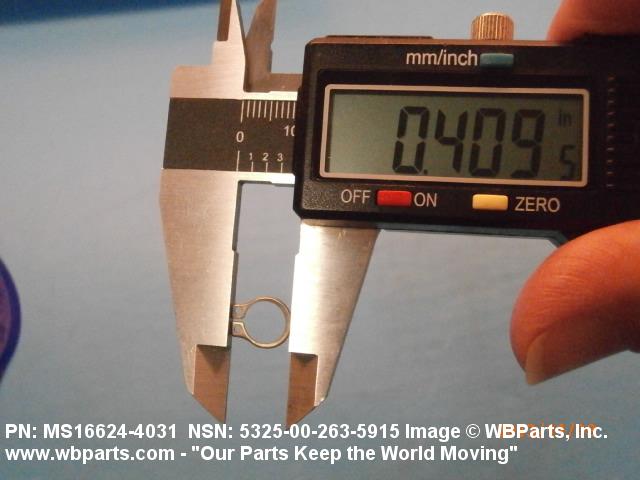

Drawings & Photos | NSN 5325-00-263-5915
Demand History | NSN 5325-00-263-5915
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-263-5915 | 2024-05-152 | 100 | Taiwan |
| MS166244031 | 2022-04-97 | 9 | Czech Republic |
| 5325-00-263-5915 | 2022-03-85 | 12 | TW |
| 5325-00-263-5915 | 2022-03-85 | 100 | TW |
| 5325-00-263-5915 | 2021-11-333 | 18819 | US |
| 5325-00-263-5915 | 2021-11-332 | 18819 | DIBBS |
| MS166244031 | 2020-11-324 | 1 | China |
| MS166244031 | 2018-05-142 | 35 | TH |
| MS166244031 | 2013-11-308 | 10 | Turkey |
| MS16624-4031 | 2013-10-297 | 10 | US |
| MS16624-4031 | 2013-07-200 | 95 | |
| MS166244031 | 2013-04-94 | 10 | Turkey |
| MS16624-4031 | 2012-11-310 | 50 | |
| MS166244031 | 2012-04-110 | 50 | United States |
| MS16624-4031 | 2011-04-95 | 160 | United States |
| 5325-00-263-5915 | 2011-02-42 | 100 | US |
| 5325-00-263-5915 | 2010-11-327 | 9000 | DIBBS |
| 5325-00-263-5915 | 2009-08-222 | 8676 | DIBBS |
| 510031H | 2009-05-135 | 10 | United Kingdom |
| 5325-00-263-5915 | 2009-04-120 | 10 | US |
| 5325-00-263-5915 | 2009-04-111 | 4482 | DIBBS |
Cross Reference | NSN 5325-00-263-5915
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 28954-4 | 11599 | TRIUMPH ENGINE CONTROL SYSTEMS, LLC |
| 3171-23-69 | 96169 | ELECTRIC BOAT CORPORATION |
| 5100-31H | 79136 | TRUARC COMPANY LLC DBA WALDES TRUARC |
| 5100-31W | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 5365002635915 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 907766K35 | 06840 | BENDIX CORP THE |
| 907766K35 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| A851-31 | 72314 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| MS16624-4031 | 0ZBE8 | TRIMAN INDUSTRIES INC |
| MS16624-4031 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS16624-4031 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS16624-4031 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| PT809S4103-248399ALT3PC69 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-263-5915
Technical Data | NSN 5325-00-263-5915
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AMS 5520 |
| SURFACE TREATMENT | PASSIVATED, QQ-P-35 |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | 63.0 ROCKWELL SUPERFICIAL 30-N MINIMUM AND 69.5 ROCKWELL SUPERFICIAL 30-N MAXIMUM |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A41 EXTERNAL |

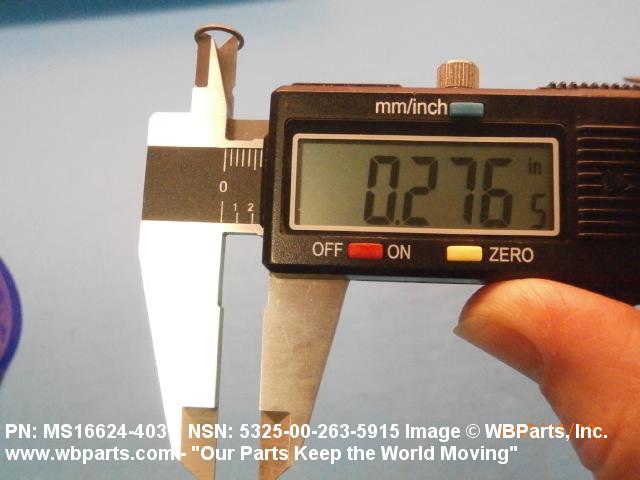

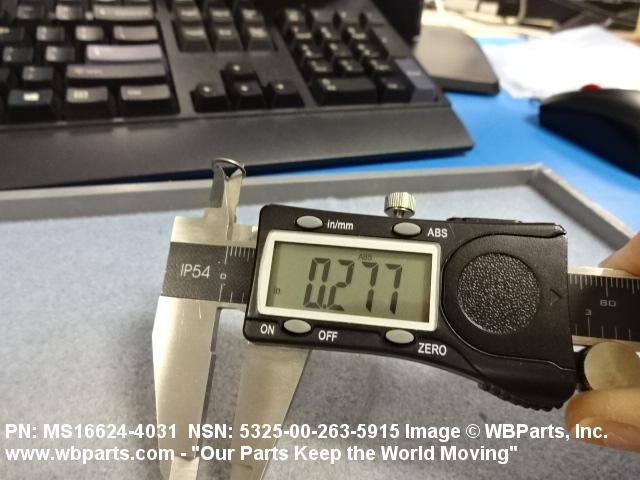

| INSIDE DIAMETER | 0.276 INCHES MINIMUM AND 0.283 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | D4 RECTANGULAR |

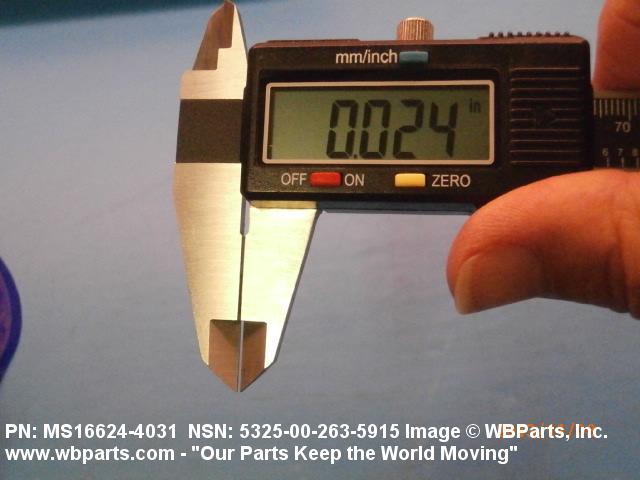

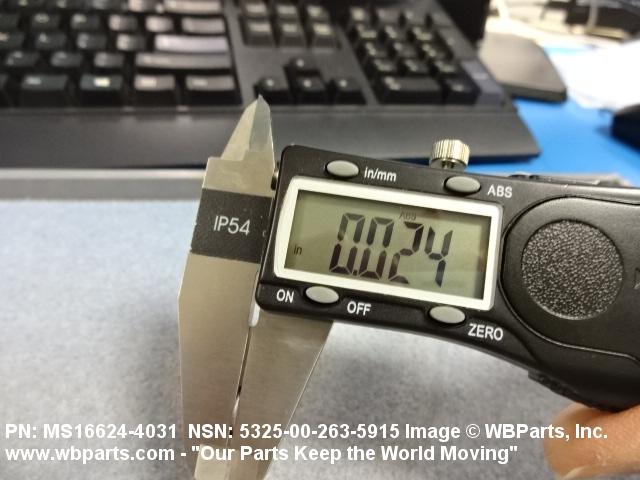

| MAJOR THICKNESS | 0.023 INCHES MINIMUM AND 0.027 INCHES MAXIMUM |
| USAGE DESIGN | EXTERNAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16624-4031 |
Restrictions/Controls & Freight Information | NSN 5325-00-263-5915
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
