NSN 5325-00-244-2557 FD4015, 8438509, 00-244-2557
Product Details | POSITIVE LOCK STUD
5325-00-244-2557 A quick disconnecting item with a circumferential groove at one end that is inserted into a RECEPTACLE, POSITIVE LOCK for positive fastening.
Part Alternates: FD4015, 8438509, 5325-00-244-2557, 00-244-2557, 5325002442557 , 002442557
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 FEB 1969 | 00-244-2557 | 18014 ( STUD, POSITIVE LOCK ) |

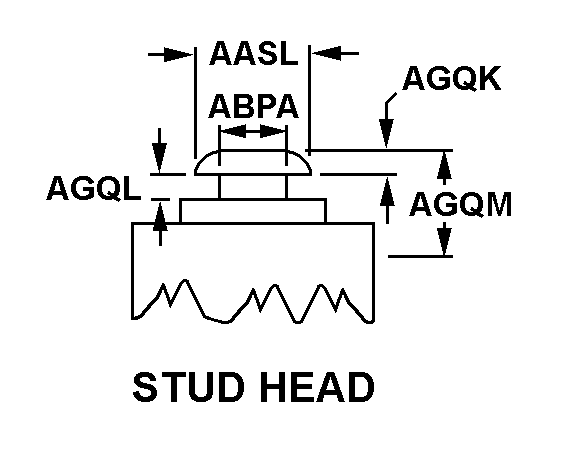

Drawings & Photos | NSN 5325-00-244-2557
Demand History | NSN 5325-00-244-2557
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-244-2557 | 2024-08-219 | 155 | DIBBS |
| 5325-00-244-2557 | 2021-06-172 | 28 | DIBBS |
| 5325-00-244-2557 | 2021-06-161 | 28 | DIBBS |
| 5325-00-244-2557 | 2020-10-293 | 76 | DIBBS |
| 5325-00-244-2557 | 2020-10-281 | 76 | DIBBS |
| 5325-00-244-2557 | 2014-07-194 | 200 | DIBBS |
| 5325-00-244-2557 | 2013-06-172 | 530 | United States |
| 5325-00-244-2557 | 2010-05-134 | 66 | DIBBS |
| 5325-00-244-2557 | 2008-08-228 | 88 | DIBBS |
| 5325-00-244-2557 | 2008-06-172 | 135 | DIBBS |
