NSN 5325-00-241-7421 A6T110X906, GS520AD12A, 26012011024906
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-241-7421 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: A6T110X906, GS520AD12A, 26012011024906, 2601-20-110-24906, 5325-00-241-7421, 00-241-7421, 5325002417421, 002417421
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 JUN 1969 | 00-241-7421 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-00-241-7421
Cross Reference | NSN 5325-00-241-7421
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2601-20-110-24906 | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| A6T110X906 | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| A6T110X906 | 72974 | LAND ELECTRONIC SUPPLY INC |
| GS520AD12A | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-241-7421
Technical Data | NSN 5325-00-241-7421
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 1100 GROMMET STEEL COMP 1118 STUD |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/1 H14 FED SPEC SINGLE MATERIAL RESPONSE GROMMET AISI ASSN STD SINGLE MATERIAL RESPONSE STUD |
| SURFACE TREATMENT | CADMIUM GROMMET |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 1 CL 2 FED SPEC SINGLE TREATMENT RESPONSE THONG |

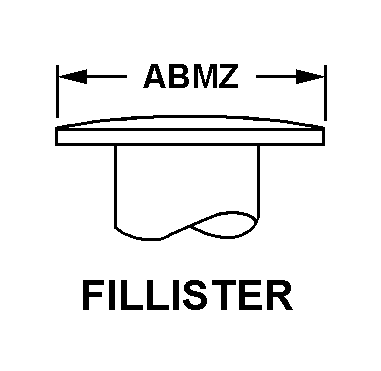

| TURNLOCK STUD HEAD STYLE | 2 FILLISTER |
| DIAMETER | 0.625 INCHES NOMINAL |

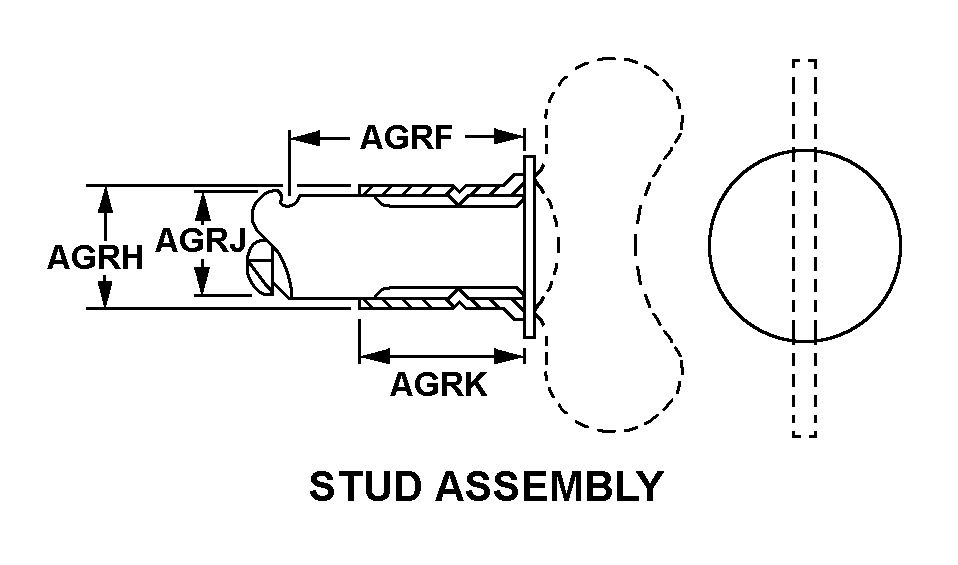

| STUD ASSEMBLY STYLE | 20 STUD ASSEMBLY |
