NSN 5325-00-232-2058 VF106TYPE1STYLE7SIZEMH, 00-232-2058, 002322058
Product Details | INTERLOCKING SLIDE FASTENER
5325-00-232-2058 Limited to items commonly known as "zipper.
Part Alternates: VF106TYPE1STYLE7SIZEMH, 5325-00-232-2058, 00-232-2058, 5325002322058, 002322058
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-232-2058 | 03537 ( FASTENER, SLIDE, INTERLOCKING ) |

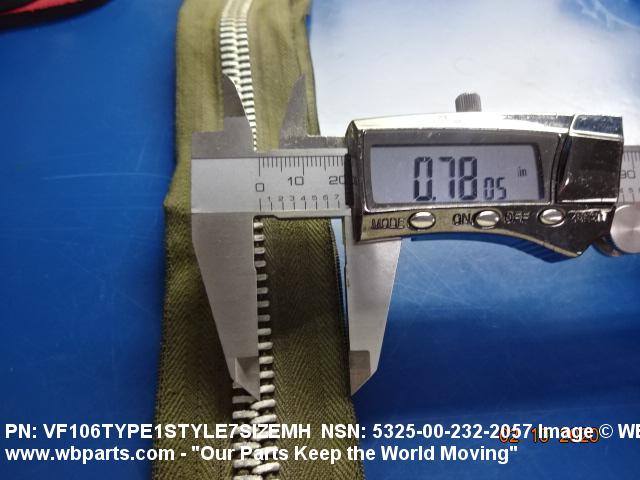

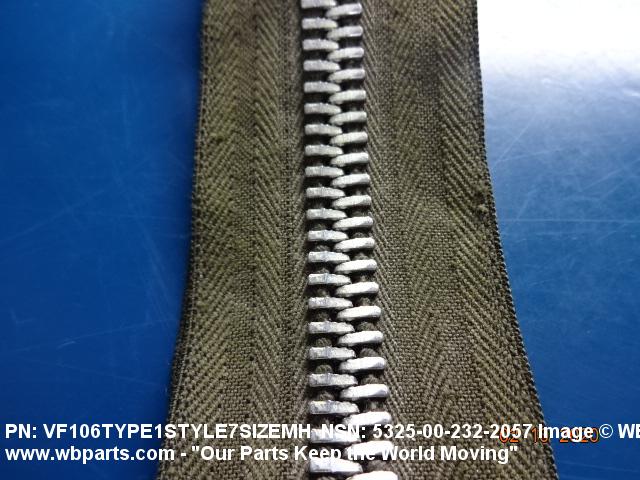

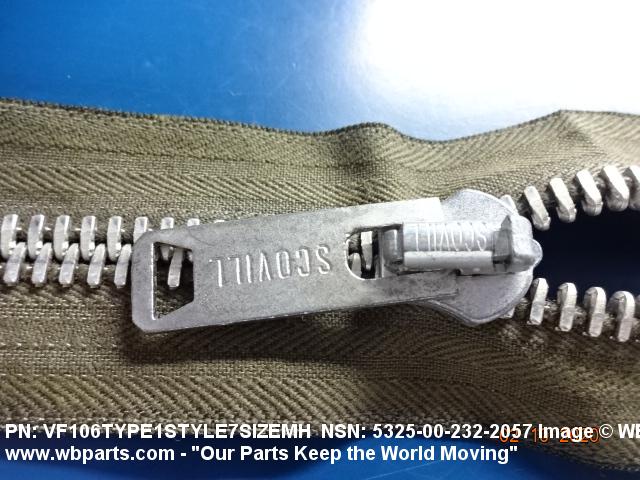

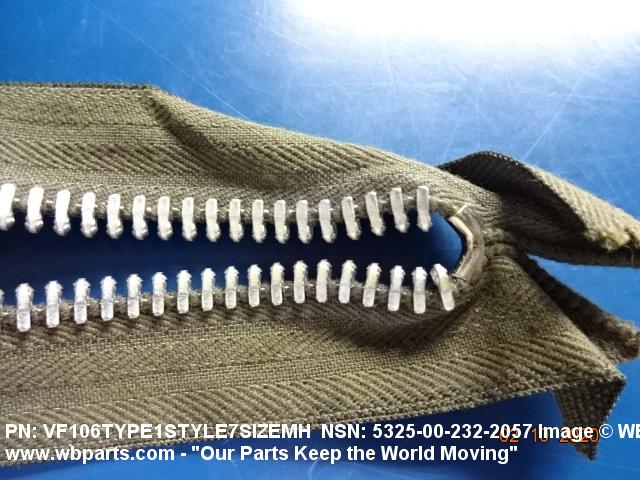

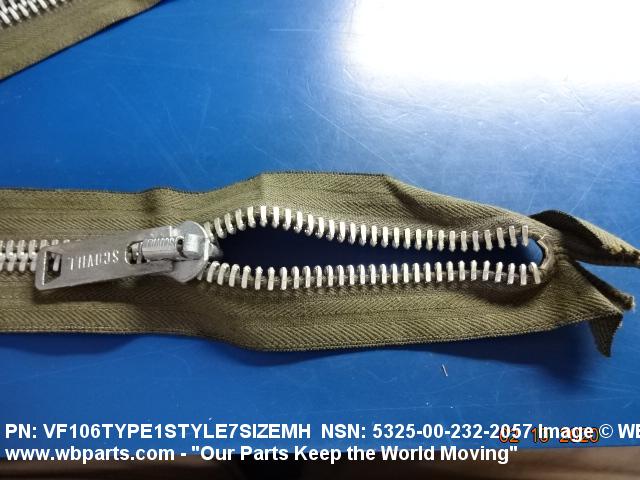

Drawings & Photos | NSN 5325-00-232-2058
Cross Reference | NSN 5325-00-232-2058
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| VF106TYPE1STYLE7SIZEMH | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-232-2058
Related Products | NSN 5325-00-232-2058
Technical Data | NSN 5325-00-232-2058
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OR COPPER ALLOY OR PLASTIC OR STEEL OVERALL |
| PERFORMANCE TYPE | MEDIUM HEAVY DUTY |
| PERIPHERAL CONTOUR | STRAIGHT |
| COLOR | GRAY, SLATE TAPE |
| STOP TYPE | CLOSED BOTTOM BRIDGE TOP |
| SLIDER QUANTITY | 1 |
| SLIDER REVERSIBILITY | NONREVERSIBLE |
| SLIDER PULL QUANTITY | 1 |
| SLIDER PULL TYPE | LONG TAB |
| LOCKING DEVICE TYPE | AUTOMATIC |
| LENGTH | 41.438 INCHES MINIMUM AND 42.250 INCHES MAXIMUM |
| FASTENER TAPE EXTENSION LENGTH | 0.750 INCHES NOMINAL AND 0.750 INCHES NOMINAL |
| TAPE ENVIRONMENTAL PROTECTION | MILDEW RESISTANT AND WATER RESISTANT |
| TAPE WIDTH | 0.719 INCHES MINIMUM AND 0.812 INCHES MAXIMUM |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 7 STYLE AND MH FORM |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | VF106TYPE1STYLE7SIZEMH |
Restrictions/Controls & Freight Information | NSN 5325-00-232-2058
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066460 | SLIDE (ZIPPERS) |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-232-2058
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
