NSN 5325-00-185-0012 MS3548935, MS35489-35, MS3548935X

Product Details | NONMETALLIC GROMMET

5325-00-185-0012 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.

Part Alternates: MS3548935, MS35489-35, MS3548935X, MS35489-35X, MS3549027, MS35490-27, MS3549029, MS35490-29, AA1189, A-A-1189 , AN931A47, AN931A4-7, AN931A471, AN931A47-1, K78229498, K7822949-8, K7822949P8, K7822949PT8, MILB3036, P250A5199, QQC40, QQ-C-40 , R14484064, R1448-4064, 946058-351, 01307, 0130-7, 1018981008, 1018981-008, 12Z1200230, 12Z12002-30, 16125, 16-125, 2010020000, 201-0020-000, 2Z84954, 2Z8495-4, 3591001P13, 359-1001P13, 41613135, 416131-35, 4913272-01, 53251850012, 6026-7055-8, 8027330, 86012344, 860123-44, 917B5991, 917B599-1, 944.87.31.039, 9448731039, 5330-00-181-0030 , 5325-00-185-0012, 00-185-0012, 5325001850012, 5330001810030, 602670558, 001850012, 946058351, 491327201

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-185-0012	33729 ( GROMMET, NONMETALLIC )

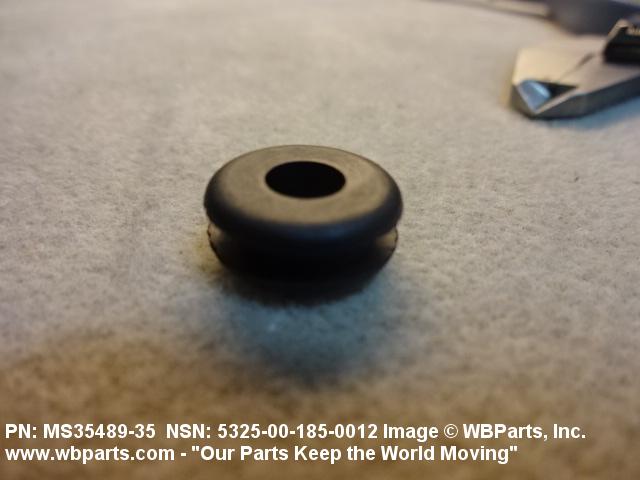

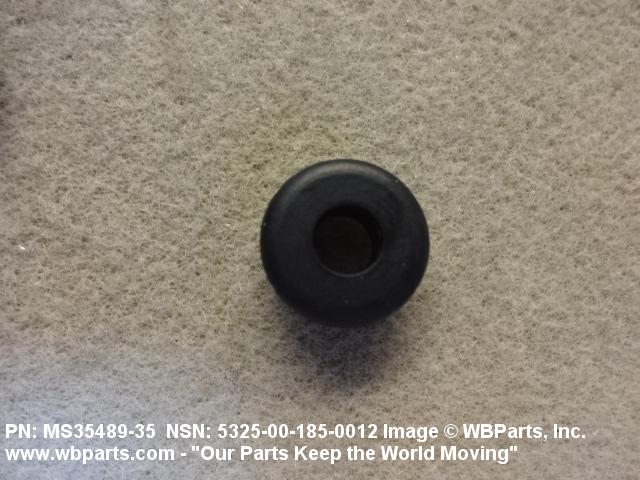

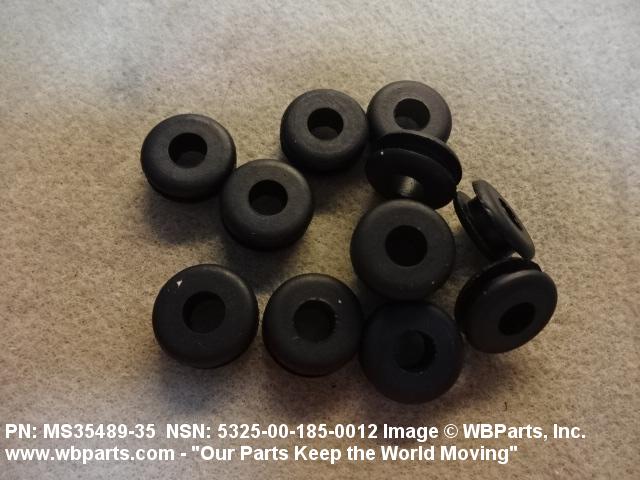

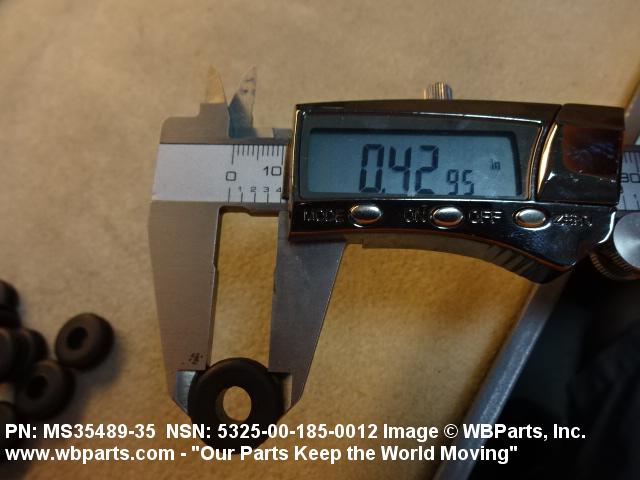

Drawings & Photos | NSN 5325-00-185-0012

Part Number	Request Date	QTY	Origin
5325-00-185-0012	2025-02-50	148	DIBBS
5325-00-185-0012	2025-02-41	121	DIBBS
5325-00-185-0012	2025-01-21	121	DIBBS
5325-00-185-0012	2025-01-14	30	DIBBS
5325-00-185-0012	2023-06-171	118	DIBBS
5325-00-185-0012	2023-04-96	120	DIBBS
AN931A47	2022-11-312	2	FR
5325-00-185-0012	2021-10-279	134	DIBBS
5325-00-185-0012	2021-09-269	133	DIBBS
MS3548935X	2021-08-242	100	United States
MS3548935	2021-04-111	50	Taiwan
5325-00-185-0012	2019-06-156	340	DIBBS
MS3548935	2019-03-70	12	United States
5325-00-185-0012	2018-11-312	232	DIBBS
5325-00-185-0012	2018-04-107	192	DIBBS
MS3548935	2018-01-31	12	United States
MS3548935	2017-04-116	3	United States
MS3548935	2017-01-26	12	United States
MS3548935	2016-11-326	4	United States
MS3548935	2016-10-285	100	us
5325-00-185-0012	2016-09-256	125	DIBBS
5325-00-185-0012	2015-09-271	323	DIBBS
MS35489-35	2014-04-106	10	Italy
5325-00-185-0012	2013-07-182	504	DIBBS
5325-00-185-0012	2013-06-165	352	DIBBS
5325-00-185-0012	2013-04-91	9	DIBBS
MS35489-35	2012-11-310	50
MS3548935	2012-05-150	100	Greece
5325-00-185-0012	2011-07-201	391	MANUAL
MS3548935	2009-06-167	100	United States

Cross Reference | NSN 5325-00-185-0012

Part Number	Cage Code	Manufacturer
0130-7	76301	BOEING COMPANY, THE DBA BOEING
1018981-008	05037	ANACOMP, INC.
1018981-008	0HBH2	LEXEL IMAGING SYSTEMS, INC.
12Z12002-30	94135	NAVAL ORDNANCE STANDARDS
16-125	77969	RUBBERCRAFT CORPORATION OF CALIFORNIA, LTD
201-0020-000	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
2Z8495-4	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
359-1001P13	49956	RAYTHEON COMPANY DBA RAYTHEON
416131-35	96214	RAYTHEON COMPANY DBA RAYTHEON
4913272-01	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
5325001850012	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
53251850012	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
6026-7055-8	1PQF4	L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING
6026-7055-8	20551	CAE-LINK CORP
6026-7055-8	36378	RAYTHEON TECHNICAL SERVICES COMPANY
8027330	18876	U S ARMY AVIATION AND MISSILE COMMAND
860123-44	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
860123-44	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
917B599-1	79500	WESTINGHOUSE ELECTRIC CORP
917B599-1	83843	SUNDSTRAND CORP ELECTRIC POWER SYSTEMS DIV
917B599-1	99167	HAMILTON SUNDSTRAND CORPORATION
944.87.31.039	S4080	PILATUS AIRCRAFT LTD
946058-351	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN931A4-7	81352	AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS
AN931A4-7	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN931A47-1	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
K7822949-8	79500	WESTINGHOUSE ELECTRIC CORP
K7822949-8	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
K7822949P8	79500	WESTINGHOUSE ELECTRIC CORP
K7822949PT8	79500	WESTINGHOUSE ELECTRIC CORP
MILB3036	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS35489-35	6K404	BASIC RUBBER AND PLASTICS CO.
MS35489-35	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35489-35X	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35490-27	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35490-29	6K404	BASIC RUBBER AND PLASTICS CO.
MS35490-29	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
P250A5199	00798	MUTRON CORP
R1448-4064	32657	DORER ENGINEERING INC DBA O J RODGERS COMPANY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-185-0012

Compare

Related Products | NSN 5325-00-185-0012

5325-00-265-9962, 5325-00-301-4923, 5325-00-375-8500, 5340-01-589-8103, 5340-01-589-8491

Technical Data | NSN 5325-00-185-0012

Characteristic	Specifications
MATERIAL	RUBBER SYNTHETIC OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM D2000 BG515A14B24C32E036F19Z ASSN STD SINGLE MATERIAL RESPONSE OVERALL
COLOR	BLACK OVERALL
GROMMET STYLE	1 ROUND

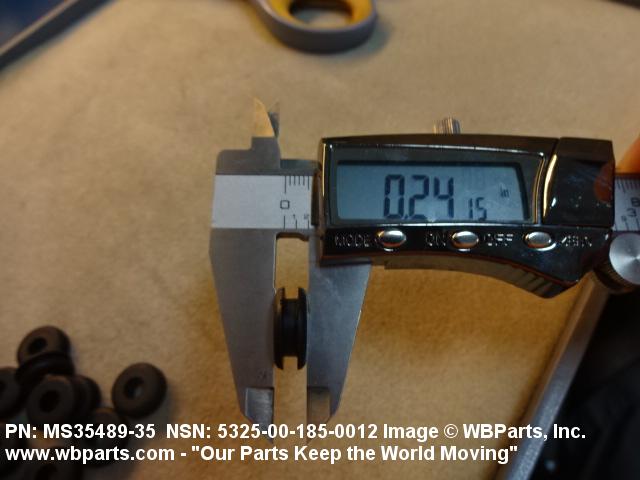

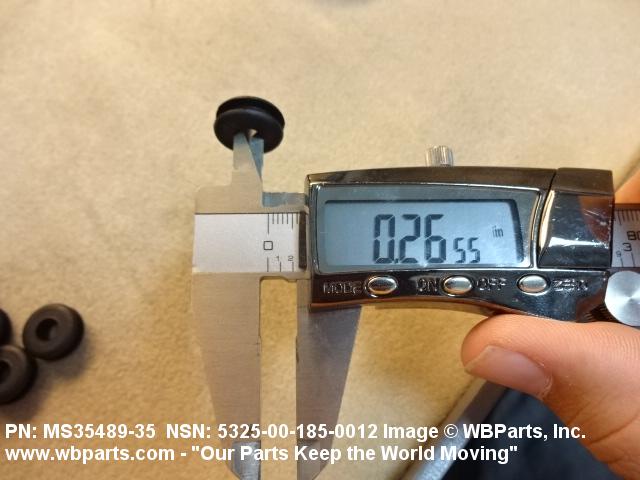

HOLE DIAMETER	0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM

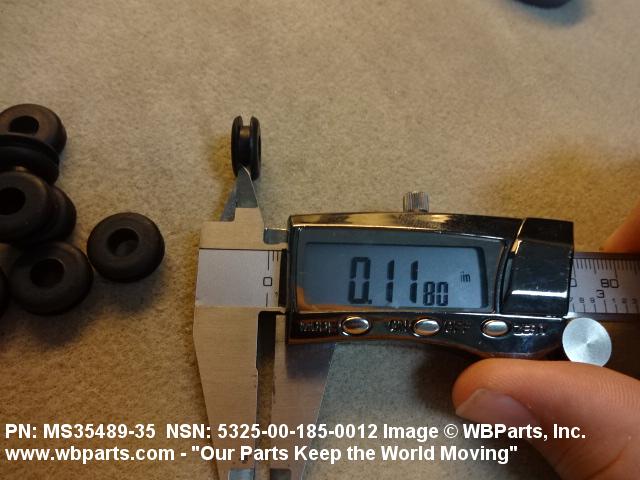

GROOVE WIDTH	0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM

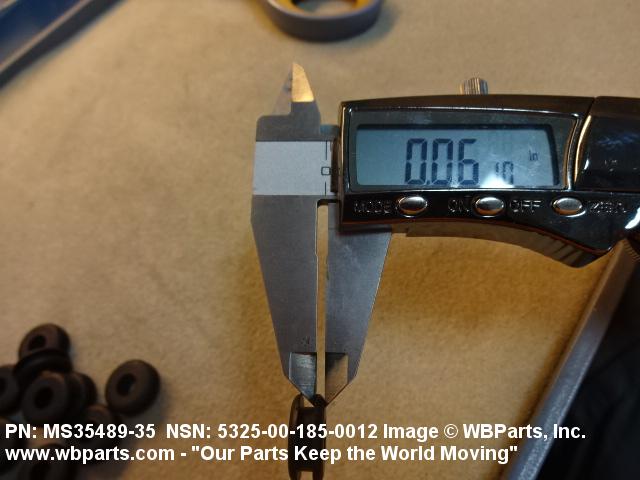

FLANGE THICKNESS	0.046 INCHES MINIMUM AND 0.078 INCHES MAXIMUM
OVERALL HEIGHT	0.094 INCHES MINIMUM AND 0.156 INCHES MAXIMUM

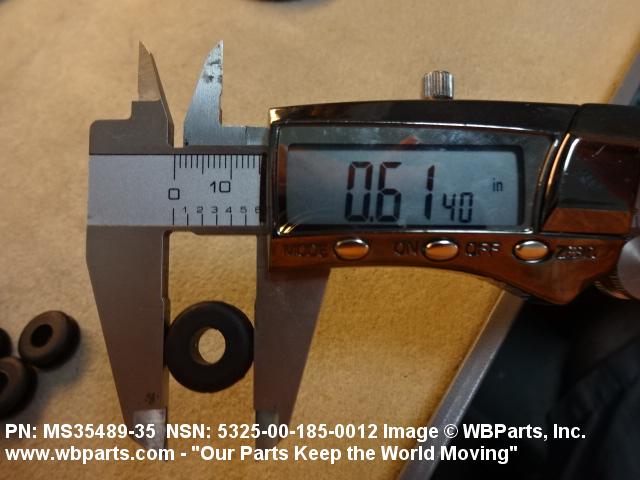

LARGE FLANGE OUTSIDE DIAMETER	0.594 INCHES MINIMUM AND 0.656 INCHES MAXIMUM
GROOVE OUTSIDE DIAMETER	0.422 INCHES MINIMUM AND 0.454 INCHES MAXIMUM
GROMMET CONSTRUCTION TYPE	SOLID
NONMETALLIC HARDNESS RATING	NOT RATED
FEATURES PROVIDED	COOLANT RESISTANT AND OIL RESISTANT
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MILB3036
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS35489-35

Restrictions/Controls & Freight Information | NSN 5325-00-185-0012

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	156600	PLASTIC/RUBBER ARTICLE VIZ:
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-00-185-0012

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Q	36 months
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Q	36 months
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Q	36 months
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Q	36 months
Purchasing	QTY UOM	1 HD : Each
