Product Details | NONMETALLIC GROMMET

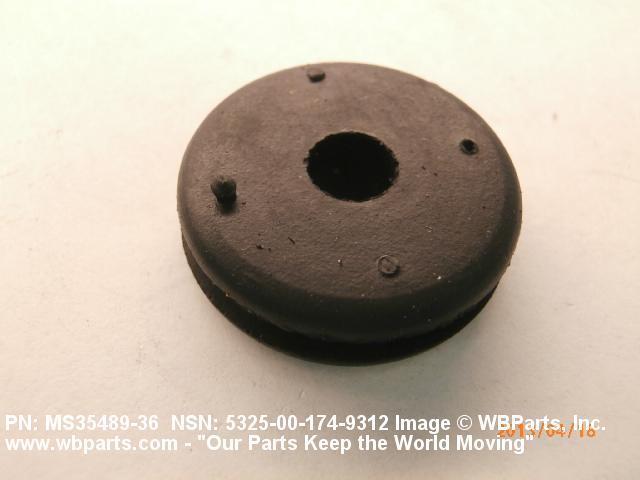

5325-00-174-9312 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: MS3548936, MS35489-36, AN931A412, AN931A4-12, MILG3036, 113055, 3762, 5325-00-174-9312, 00-174-9312, 5325001749312, 001749312
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-174-9312 | 33729 ( GROMMET, NONMETALLIC ) |

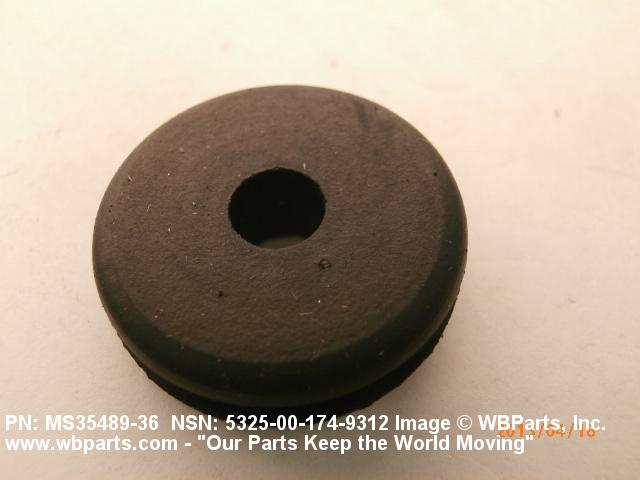

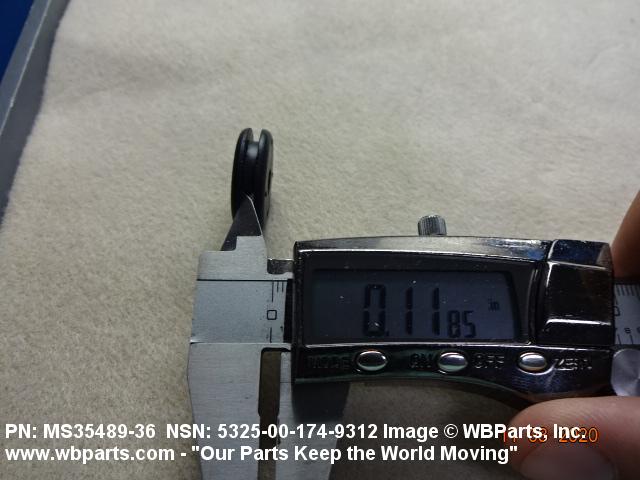

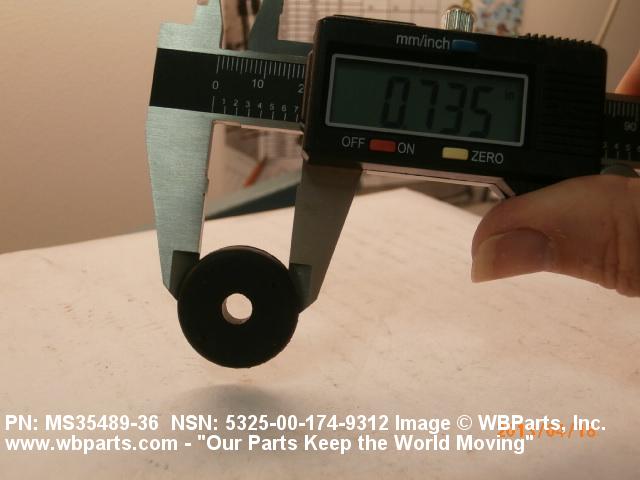

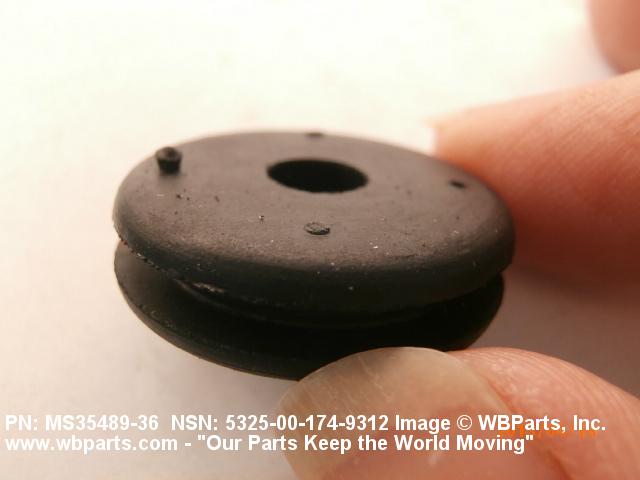

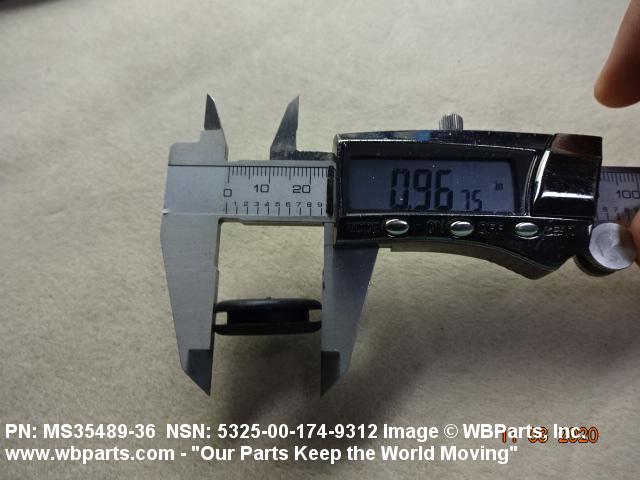

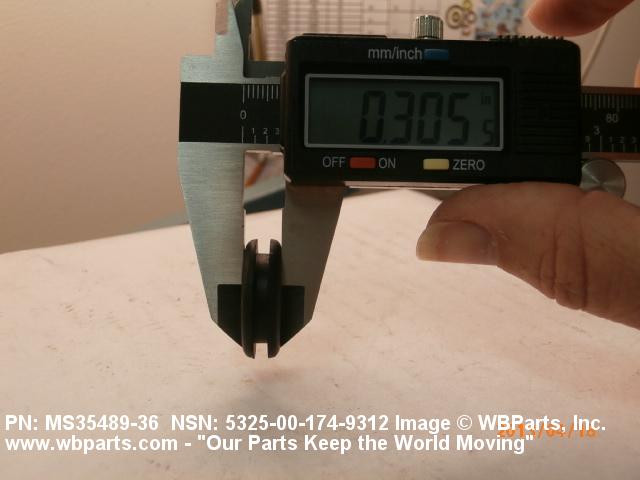

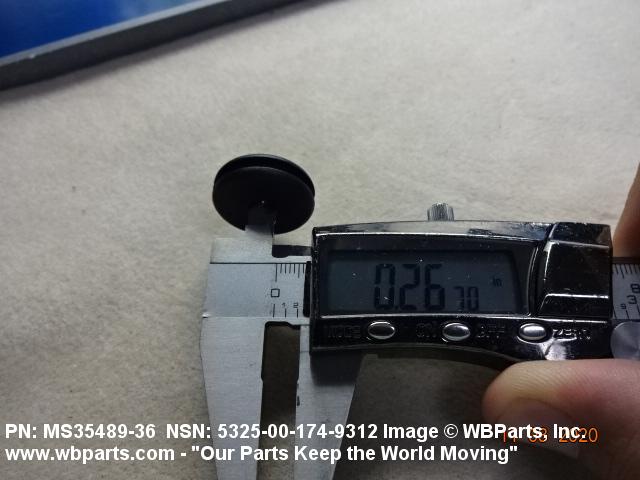

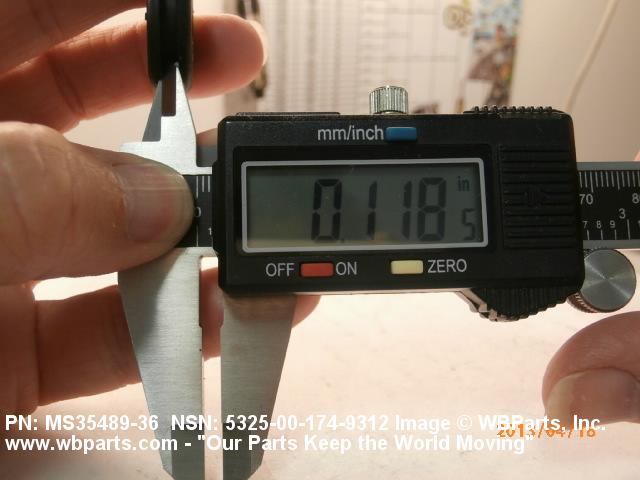

Drawings & Photos | NSN 5325-00-174-9312
Demand History | NSN 5325-00-174-9312
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-174-9312 | 2024-12-345 | 233 | DIBBS |
| 5325-00-174-9312 | 2024-09-266 | 233 | DIBBS |
| 5325-00-174-9312 | 2020-08-217 | 233 | DIBBS |
| 5325-00-174-9312 | 2017-10-282 | 295 | DIBBS |
| 5325-00-174-9312 | 2017-02-41 | 2 | United States |
| 5325-00-174-9312 | 2013-02-39 | 6 | Canada |
| 5325-00-174-9312 | 2012-03-62 | 1805 | DIBBS |
| 5325-00-174-9312 | 2011-11-311 | 725 | DIBBS |
| 5325-00-174-9312 | 2010-06-152 | 620 | DIBBS |
| MS3548936 | 2010-03-89 | 100 | Malaysia |
| 5325-00-174-9312 | 2009-12-338 | 473 | DIBBS |
| MS3548936 | 2009-11-327 | 24 | United States |
| 5325-00-174-9312 | 2009-03-89 | 209 | DIBBS |
Cross Reference | NSN 5325-00-174-9312
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 113055 | 73734 | FEDERAL SCREW PRODUCTS INC. |
| 3762 | 70485 | ATLANTIC INDIA RUBBER CO INC |
| AN931A4-12 | 81352 | AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS |
| AN931A4-12 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MILG3036 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS35489-36 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-174-9312
Related Products | NSN 5325-00-174-9312
Technical Data | NSN 5325-00-174-9312

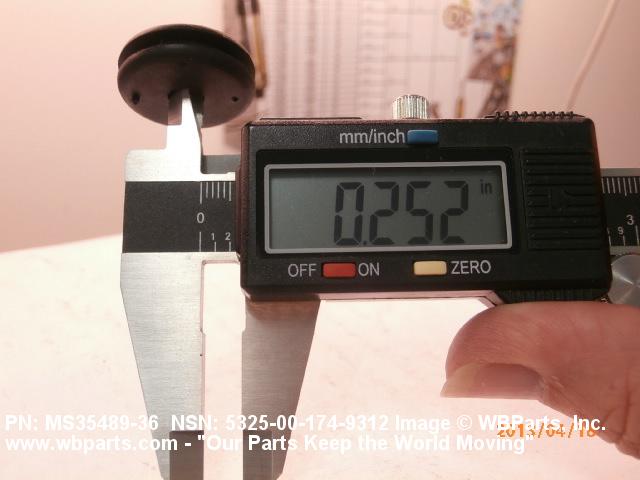

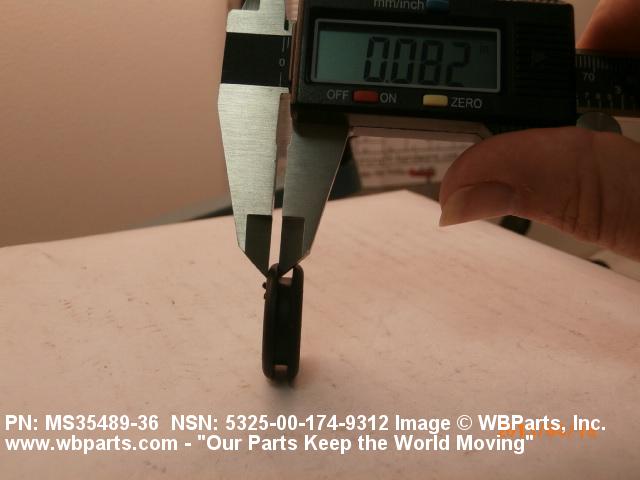

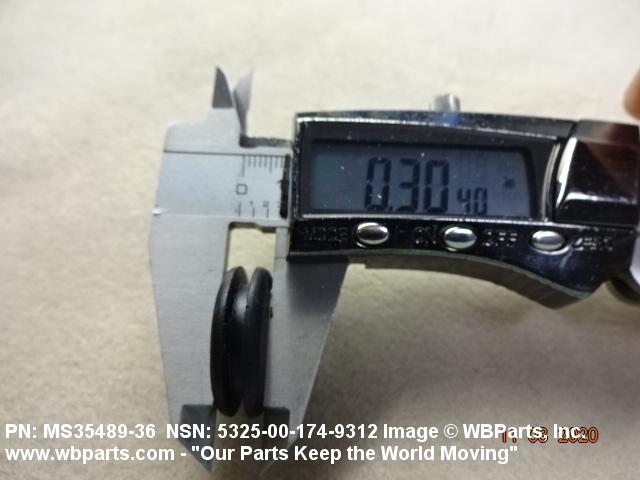

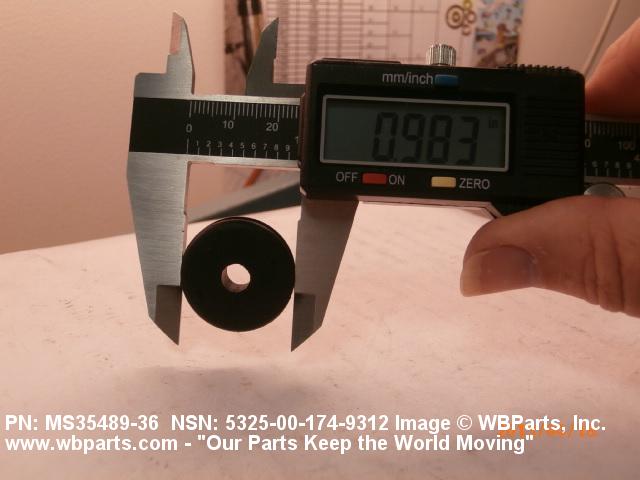

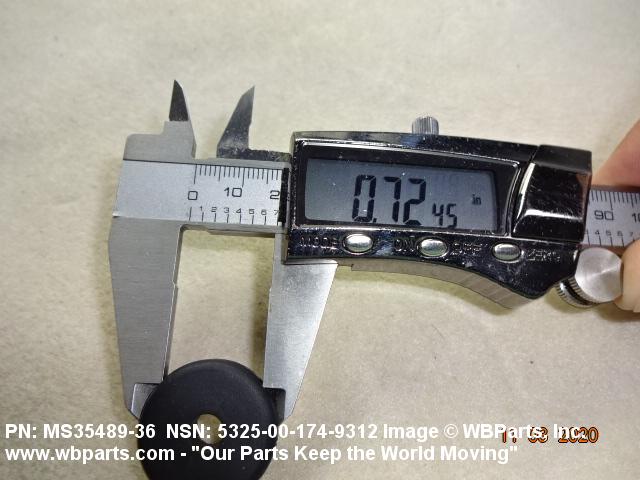

| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM D2000 BG515A14B24C32E036F19Z ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| COLOR | BLACK OVERALL |
| GROMMET STYLE | 1 ROUND |
| HOLE DIAMETER | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
| GROOVE WIDTH | 0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.078 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.281 INCHES MINIMUM AND 0.343 INCHES MAXIMUM |
| LARGE FLANGE OUTSIDE DIAMETER | 0.969 INCHES MINIMUM AND 1.031 INCHES MAXIMUM |
| GROOVE OUTSIDE DIAMETER | 0.734 INCHES MINIMUM AND 0.766 INCHES MAXIMUM |
| GROMMET CONSTRUCTION TYPE | SOLID |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| FEATURES PROVIDED | COOLANT RESISTANT AND OIL RESISTANT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILG3036 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35489-36 |
