NSN 5325-00-171-6142 C2417771, C241777-1, 00-171-6142
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-171-6142 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: C2417771, C241777-1, 5325-00-171-6142, 00-171-6142, 5325001716142, 001716142
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-171-6142 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

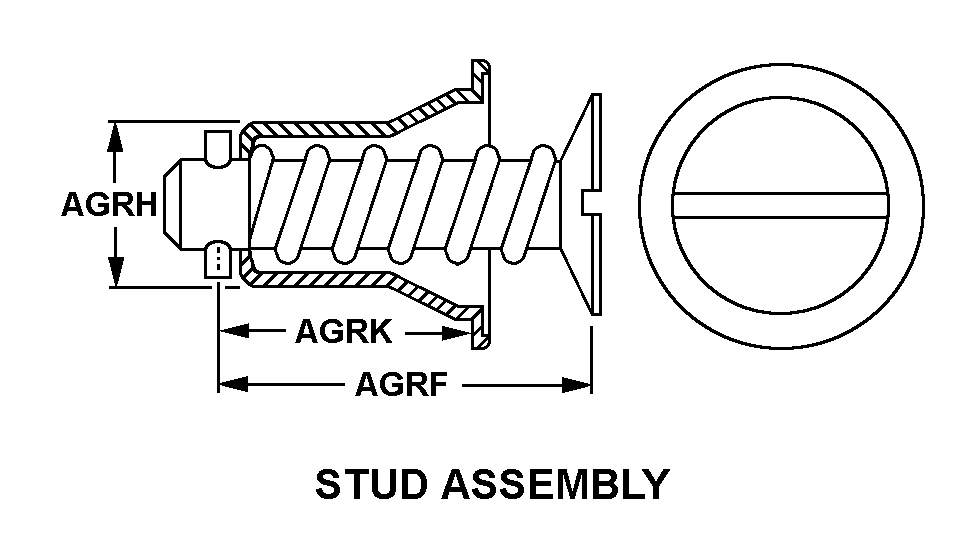

Drawings & Photos | NSN 5325-00-171-6142
Cross Reference | NSN 5325-00-171-6142
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C241777-1 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
