Product Details | NONMETALLIC GROMMET
5325-00-171-4764 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: 27252, 5325-00-171-4764, 00-171-4764, 5325001714764, 001714764
Hardware and Abrasives | Fastening Devices
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 01 JAN 1963 | 00-171-4764 | 33729 ( GROMMET, NONMETALLIC ) |
Demand History | NSN 5325-00-171-4764
Part Number | Request Date | QTY | Origin |
---|---|---|---|
27252 | 2021-01-19 | 10 | United States |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-171-4764
Related Products | NSN 5325-00-171-4764
Technical Data | NSN 5325-00-171-4764
Characteristic | Specifications |
---|---|
MATERIAL | RUBBER SYNTHETIC RECEPTACLE |
MATERIAL DOCUMENT AND CLASSIFICATION | AMS3208 ASSN STD SINGLE MATERIAL RESPONSE RECEPTACLE |

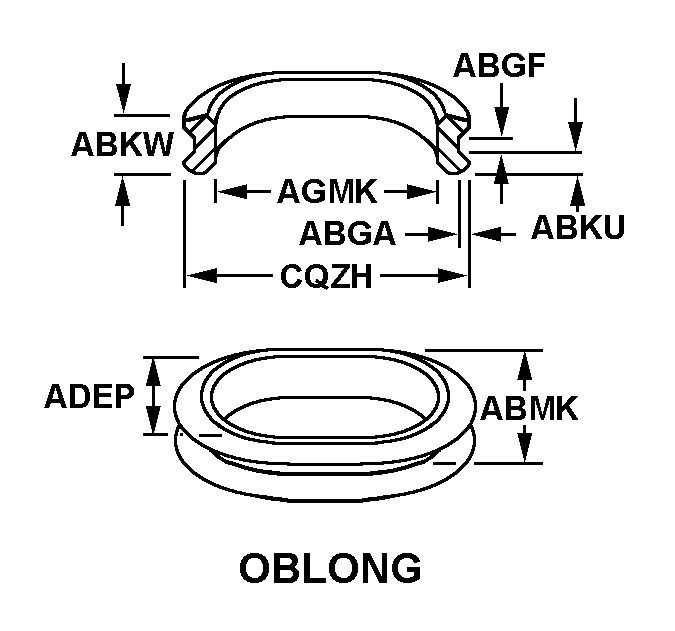

GROMMET STYLE | 37 OBLONG |
GROOVE DEPTH | 0.090 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
GROOVE WIDTH | 0.100 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
FLANGE THICKNESS | 0.062 INCHES MINIMUM AND 0.067 INCHES MAXIMUM |
OVERALL HEIGHT | 0.235 INCHES NOMINAL |
OVERALL WIDTH | 0.620 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
HOLE WIDTH | 0.220 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
HOLE LENGTH | 0.360 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
GROMMET OVERALL LENGTH | 0.750 INCHES NOMINAL |
GROMMET CONSTRUCTION TYPE | SOLID |
NONMETALLIC HARDNESS RATING | 45.0 MINIMUM SHORE DUROMETER A AND 55.0 MAXIMUM SHORE DUROMETER A |
MANUFACTURERS CODE | 70210 |
DESIGN CONTROL REFERENCE | 27252 |
