Product Details | RETAINING RING

5325-00-144-2485 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.

Part Alternates: F78-1, F781, 5325-00-144-2485, 00-144-2485, 5325001442485, 001442485

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-144-2485

Drawings & Photos | NSN 5325-00-144-2485


Cross Reference | NSN 5325-00-144-2485

Part Number Cage Code Manufacturer
F78-1 25734 BOSCH SECURITY SYSTEMS, INC DIV COMMUNICATIONS DIVISION
F78-1 72314 BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-144-2485

Technical Data | NSN 5325-00-144-2485

Characteristic Specifications
MATERIAL SPRING STEEL
SURFACE TREATMENT BLUE DIPPED
STRENGTH RATING NOT RATED
MATERIAL HARDNESS RATING NOT RATED
CASEHARDENING INDICATOR CASEHARDENED

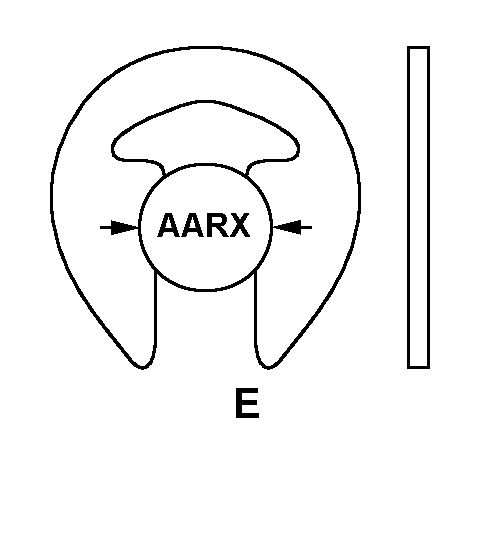

RING STYLE A91 E
INSIDE DIAMETER 0.094 INCHES NOMINAL
CROSS-SECTIONAL SHAPE STYLE D4 RECTANGULAR
MAJOR THICKNESS 0.020 INCHES NOMINAL
USAGE DESIGN EXTERNAL
MANUFACTURERS CODE 72314
DESIGN CONTROL REFERENCE F78-1
