NSN 5325-00-078-7560 BACS21X16C, 10605792-1, 400216S

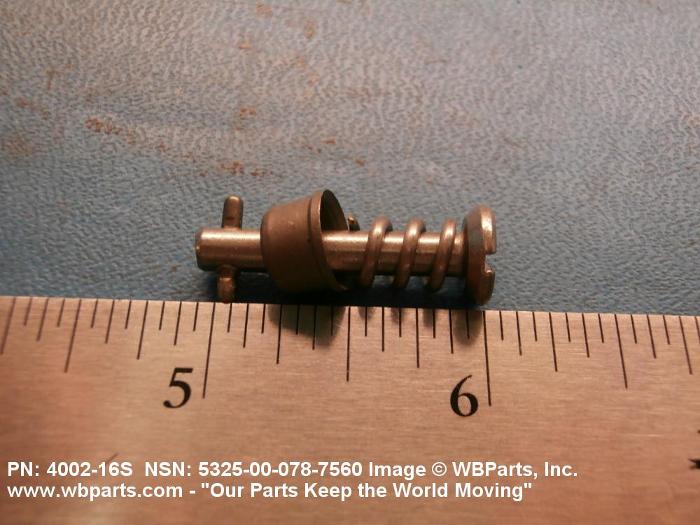

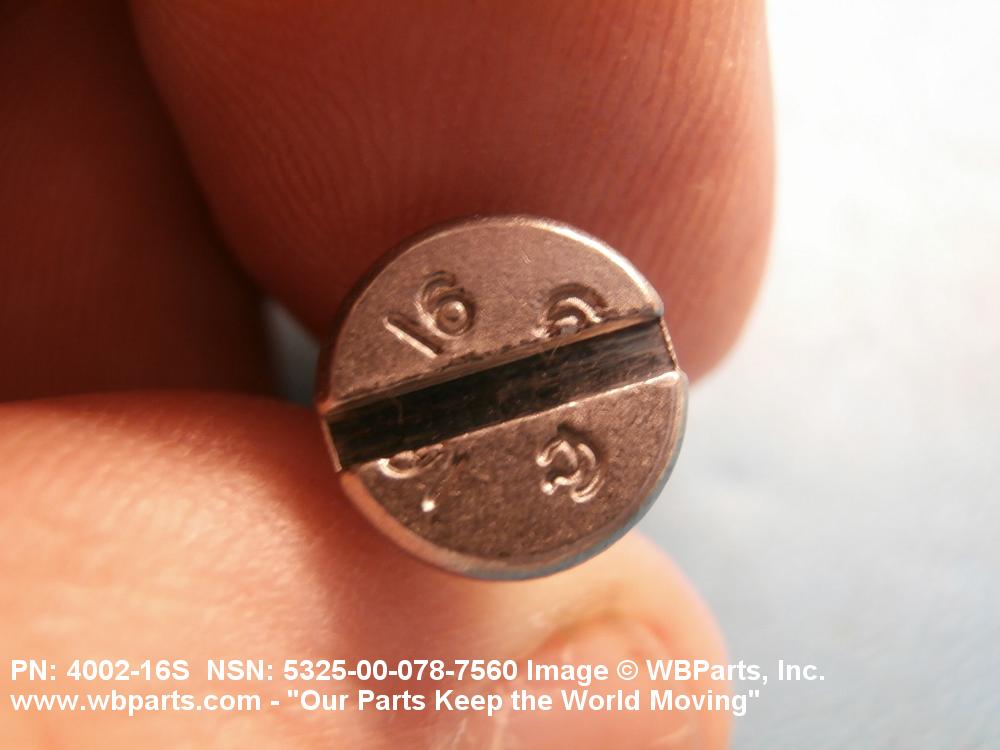

Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-078-7560 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: BACS21X16C, 10605792-1, 400216S, 4002-16S, 40S516, 40S5-16, 5325-00-078-7560, 00-078-7560, 5325000787560, 106057921, 000787560
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-078-7560 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-00-078-7560
Demand History | NSN 5325-00-078-7560
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 400216S | 2013-03-70 | 126 | United States |
| 5325-00-078-7560 | 2013-02-58 | 284 | DIBBS |
| 5325-00-078-7560 | 2013-01-14 | 270 | DIBBS |
| 40S516 | 2010-11-312 | 760 | US |
Cross Reference | NSN 5325-00-078-7560
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10605792-1 | 04939 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 10605792-1 | 38597 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 4002-16S | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 4002-16S | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 40S5-16 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BACS21X16C | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| BACS21X16C | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BACS21X16C | 77272 | THE BOEING COMPANY DBA BOEING |
| BACS21X16C | 81205 | THE BOEING COMPANY DBA BOEING |
