NSN 5325-00-074-2731 S6086, S6086S0LDERC0AT, 1630017P23
Product Details | METALLIC EYELET
5325-00-074-2731 A one-piece metal item, usually tubular, flanged at one end, the other end open. It is used primarily for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and crimped to form a mating flange. Excludes GROMMET, METALLIC and eyelets which are components of pushbutton, turnbutton and turnlock type fastners.
Part Alternates: S6086, S6086S0LDERC0AT, 1630017P23, 1630017PZ3, 5325-00-074-2731, 00-074-2731, 5325000742731, 000742731
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 AUG 1967 | 00-074-2731 | 05457 ( EYELET, METALLIC ) |
Drawings & Photos | NSN 5325-00-074-2731
Cross Reference | NSN 5325-00-074-2731
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1630017P23 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 1630017PZ3 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| S6086 | 07707 | POP FASTENERS A BLACK AND DECKER CO |
| S6086 | 61957 | USM CORP SUB OF EMHART INDUSTRIES INC |
| S6086 | 64701 | PCI GROUP INC |
| S6086S0LDERC0AT | 07707 | POP FASTENERS A BLACK AND DECKER CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-074-2731
Related Products | NSN 5325-00-074-2731
Technical Data | NSN 5325-00-074-2731
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER OVERALL |
| SURFACE TREATMENT | LEAD OR TIN OVERALL |
| COLOR | ANY ACCEPTABLE OVERALL |
| BARREL STYLE | 6 FUNNEL FLANGE STRAIGHT TYPE |
| BARREL OUTSIDE DIAMETER | 0.059 INCHES NOMINAL |
| BARREL OVERALL HEIGHT | 0.138 INCHES NOMINAL |

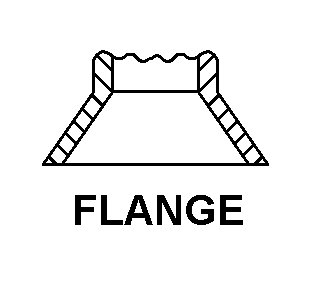

| FLANGE STYLE | 6 FLANGE |
| FLANGE OUTSIDE DIAMETER | 0.095 INCHES NOMINAL |
| MANUFACTURERS CODE | 64701 |
| DESIGN CONTROL REFERENCE | S6086 |
Restrictions/Controls & Freight Information | NSN 5325-00-074-2731
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094533 | EYELETS OR EYELET HOOKS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-074-2731
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
