NSN 5325-00-066-9407 SP513, SP-513, 00-066-9407
Product Details | POSITIVE LOCK STUD
5325-00-066-9407 A quick disconnecting item with a circumferential groove at one end that is inserted into a RECEPTACLE, POSITIVE LOCK for positive fastening.
Part Alternates: SP513, SP-513, 5325-00-066-9407, 00-066-9407, 5325000669407, 000669407
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-066-9407 | 18014 ( STUD, POSITIVE LOCK ) |
Drawings & Photos | NSN 5325-00-066-9407
Cross Reference | NSN 5325-00-066-9407
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SP-513 | 08484 | BREEZE-EASTERN CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-066-9407
Related Products | NSN 5325-00-066-9407
Technical Data | NSN 5325-00-066-9407
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2011 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/3 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

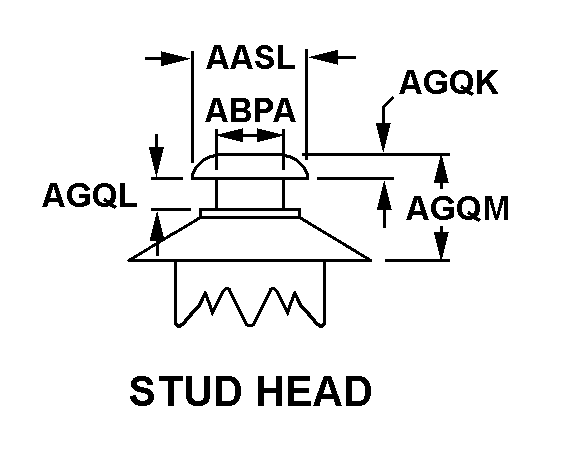

| POSITIVE LOCK STUD HEAD STYLE | 3 STUD HEAD |
| HEAD DIAMETER | 0.411 INCHES MINIMUM AND 0.421 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 0.286 INCHES MINIMUM AND 0.296 INCHES MAXIMUM |
| MAJOR DIAMETER LENGTH | 0.110 INCHES MINIMUM AND 0.115 INCHES MAXIMUM |
| UNDERCUT LENGTH | 0.135 INCHES NOMINAL |
| END OVERALL LENGTH | 0.245 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |

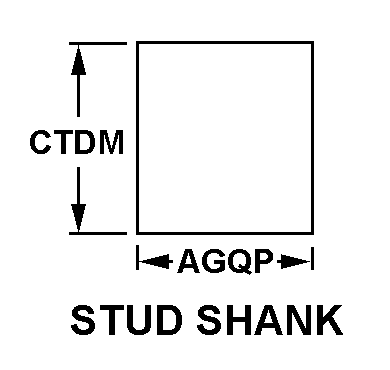

| POSITIVE LOCK STUD SHANK STYLE | 3 STUD SHANK |
| SHANK MAJOR DIAMETER | 0.500 INCHES NOMINAL |
| STUD SHANK OVERALL HEIGHT | 0.1905 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5325-00-066-9407
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
