NSN 5325-00-064-0677 65307-03016-102, 00-064-0677, 6530703016102
Product Details | NONMETALLIC GROMMET
5325-00-064-0677 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: 65307-03016-102, 5325-00-064-0677, 00-064-0677, 5325000640677, 6530703016102, 000640677
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 JUN 1967 | 00-064-0677 | 33729 ( GROMMET, NONMETALLIC ) |

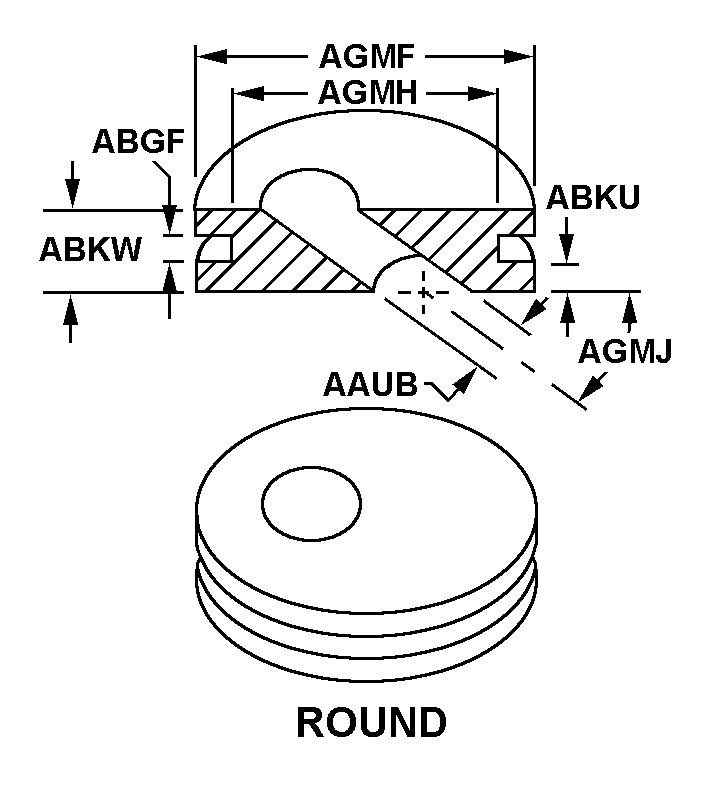

Drawings & Photos | NSN 5325-00-064-0677
Demand History | NSN 5325-00-064-0677
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 65307-03016-102 | 2019-07-11 | 99 | DIBBS |
| 5325-00-064-0677 | 2012-05-08 | 185 | DIBBS |
| 5325-00-064-0677 | 2011-11-22 | 108 | DIBBS |
| 5325-00-064-0677 | 2010-09-20 | 77 | DIBBS |
| 5325-00-064-0677 | 2008-02-09 | 72 | DIBBS |
Cross Reference | NSN 5325-00-064-0677
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65307-03016-102 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-064-0677
Related Products | NSN 5325-00-064-0677
Technical Data | NSN 5325-00-064-0677
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| COLOR | BLACK OVERALL |
| GROMMET STYLE | 23 ROUND |
| HOLE DIAMETER | 1.750 INCHES NOMINAL |
| GROOVE WIDTH | 0.125 INCHES NOMINAL |
| FLANGE THICKNESS | 0.188 INCHES NOMINAL |
| OVERALL HEIGHT | 0.500 INCHES NOMINAL |
| LARGE FLANGE OUTSIDE DIAMETER | 3.250 INCHES NOMINAL |
| GROOVE OUTSIDE DIAMETER | 2.750 INCHES NOMINAL |
| HOLE ANGLE IN DEG | 55.000 |
| GROMMET CONSTRUCTION TYPE | SOLID |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| FEATURES PROVIDED | COOLANT RESISTANT AND OIL RESISTANT |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | 65307-03016-102 |
Restrictions/Controls & Freight Information | NSN 5325-00-064-0677
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-064-0677
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | BZ | TG:H-53 SEASTALLION |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
