NSN 5325-00-033-8409 P5218256322, P521825-632-2, 00-033-8409
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-033-8409 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: P5218256322, P521825-632-2, 5325-00-033-8409, 00-033-8409, 5325000338409, 000338409
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-033-8409 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

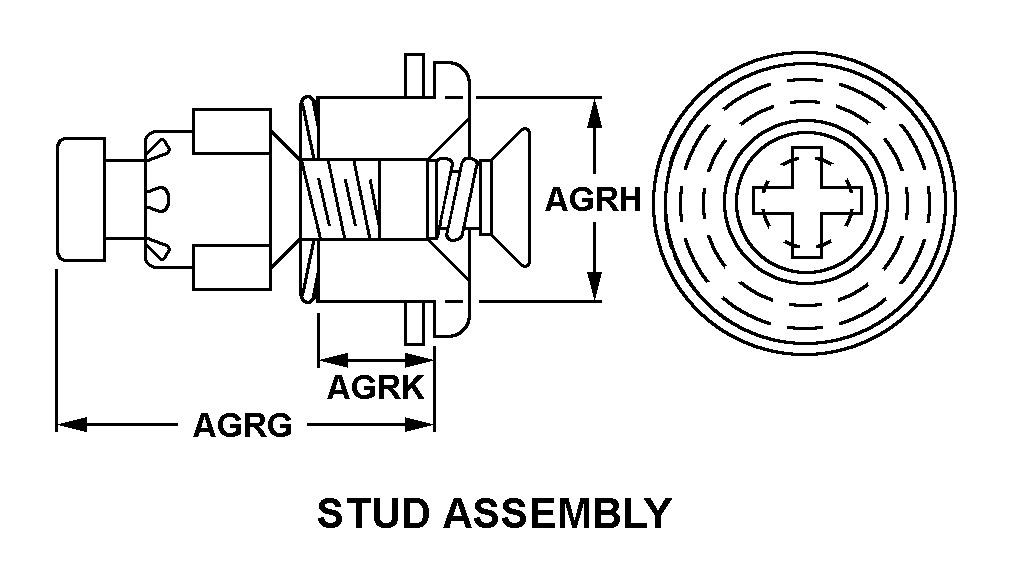

Drawings & Photos | NSN 5325-00-033-8409
Cross Reference | NSN 5325-00-033-8409
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P521825-632-2 | 73197 | HI-SHEAR CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-033-8409
Related Products | NSN 5325-00-033-8409
Technical Data | NSN 5325-00-033-8409
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 EYELET COPPER ALLOY LOCKSPRING STEEL COMP 4130 OR STEEL COMP 4140 RETAINER STEEL COMP 4130 OR STEEL COMP 4140 STUD |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD SINGLE MATERIAL RESPONSE EYELET ASTM A322 ASSN STD 1ST MATERIAL RESPONSE OR ASTM A331 ASSN STD 2ND MATERIAL RESPONSE RETAINER MIL-S-6758 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC 2ND MATERIAL RESPONSE STUD |
| SURFACE TREATMENT | PASSIVATE EYELET CADMIUM LOCKSPRING CADMIUM RETAINER CADMIUM STUD |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE EYELET |
| TURNLOCK STUD HEAD STYLE | 18 STUD HEAD |
| DIAMETER | 0.215 INCHES NOMINAL |
| STUD HEAD HEIGHT | 0.075 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | 3 STUD ASSEMBLY |
| DISTANCE FROM STUD END TO LARGEST BEARING SURFACE OF EYELET | 0.562 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| EYELET OUTSIDE DIAMETER | 0.370 INCHES NOMINAL |
| EYELET LENGTH | 0.303 INCHES NOMINAL |
| STUD THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.138-32 UNC |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | ANY ACCEPTABLE |
| MANUFACTURERS CODE | 73197 |
| DESIGN CONTROL REFERENCE | P521825-632-2 |
