NSN 5325-00-003-0688 PP028KA237, PP028KA-237, 4S592527
Product Details | RETAINING RING
5325-00-003-0688 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: PP028KA237, PP028KA-237, 4S592527, 5107237, 5107-237, 5107237AP, 5107-237AP , 5325-00-003-0688, 4S-592-5-27, 00-003-0688, 5325000030688, 000030688
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 MAY 1972 | 00-003-0688 | 07623 ( RING, RETAINING ) |

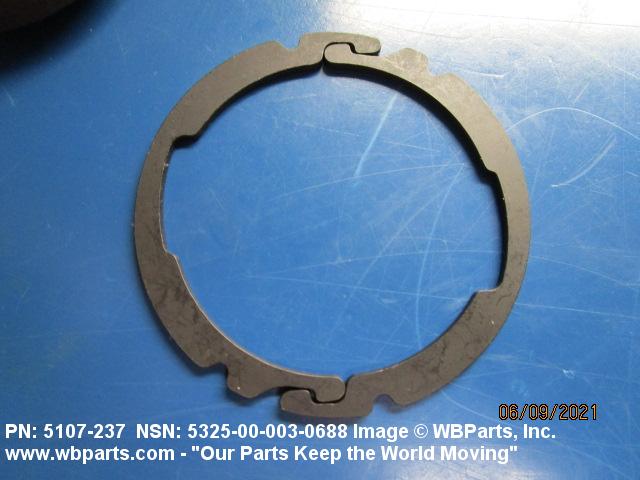

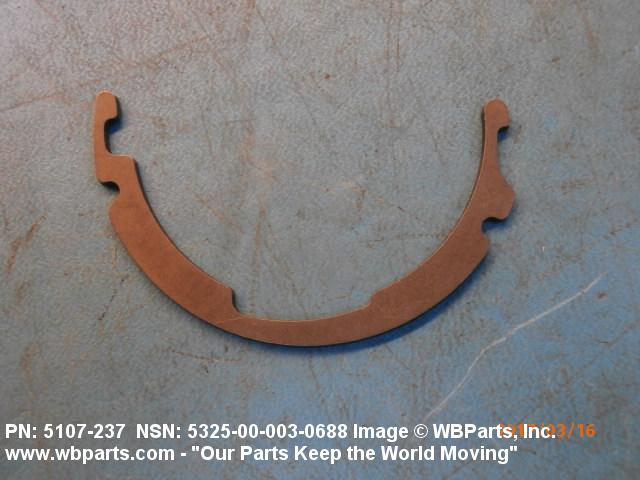

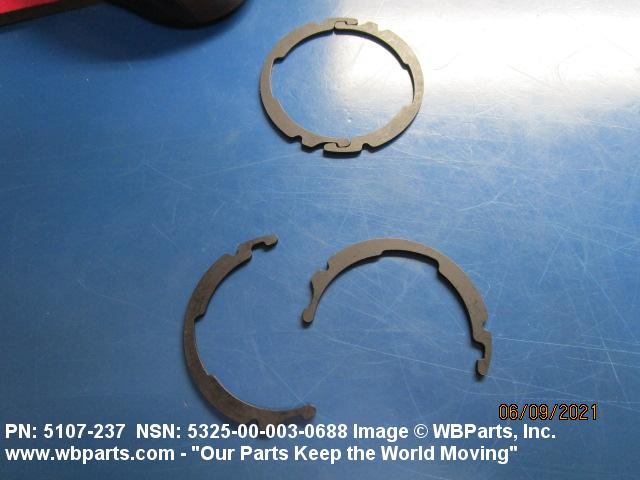

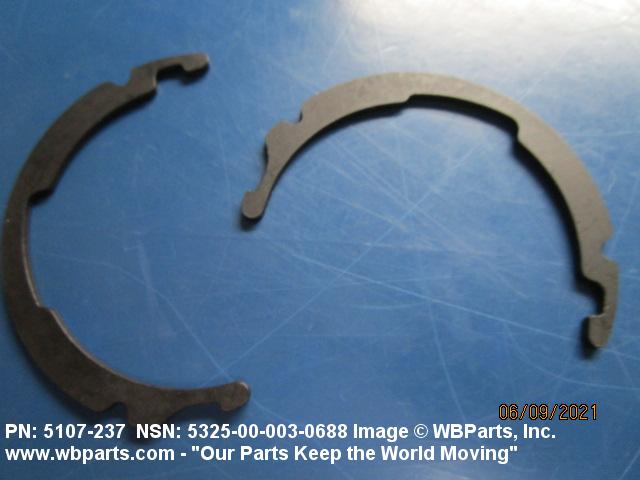

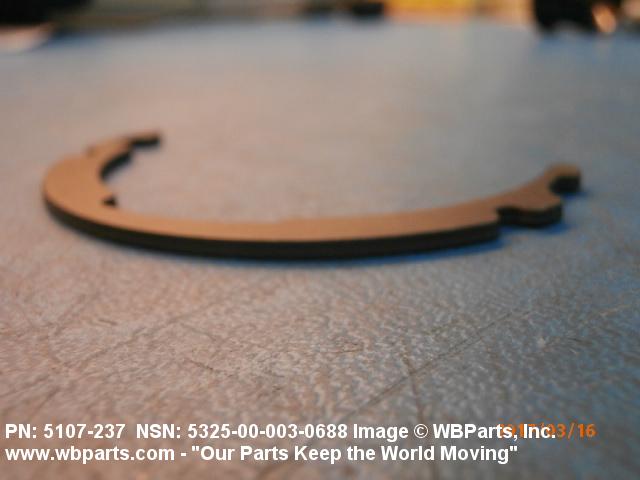

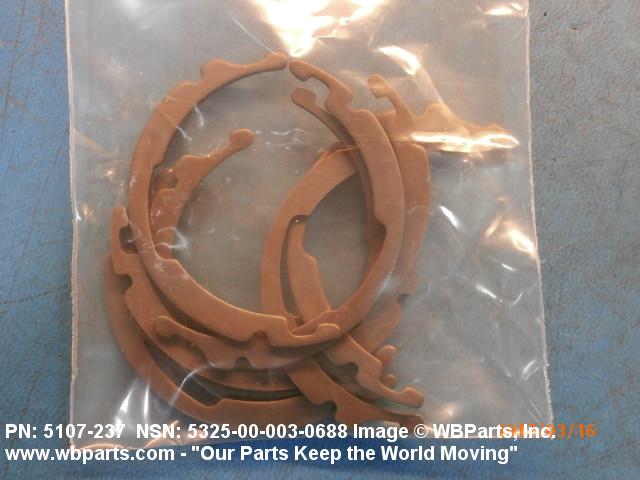

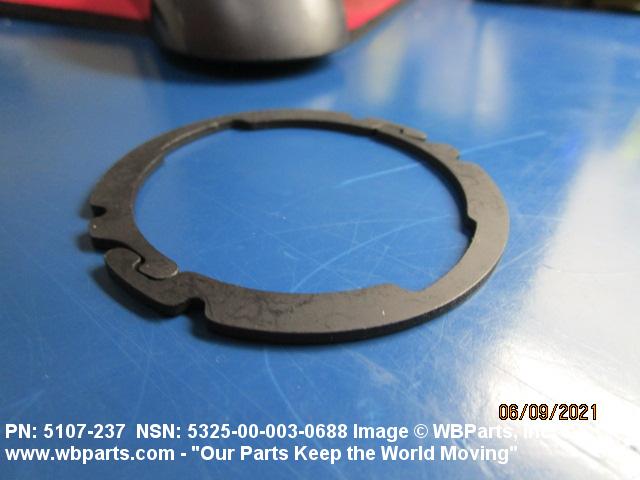

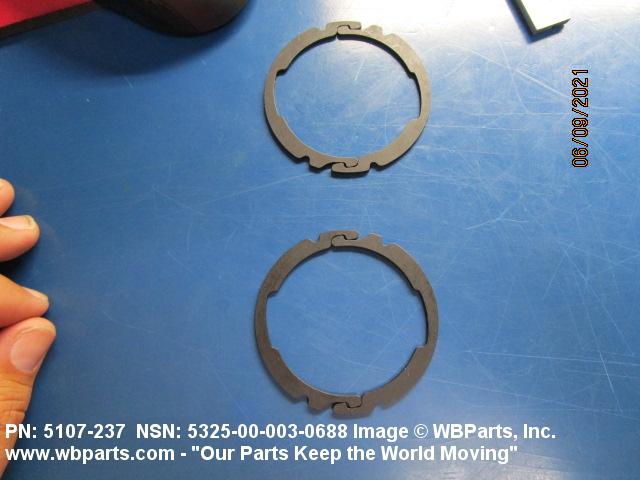

Drawings & Photos | NSN 5325-00-003-0688
Demand History | NSN 5325-00-003-0688
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| PP028KA237 | 2024-08-233 | 1 | United States |
| 4S-592-5-27 | 2024-08-226 | 99 | DIBBS |
| 5107-237 | 2024-08-226 | 99 | DIBBS |
| 5107-237AP | 2024-08-226 | 99 | DIBBS |
| 4S-592-5-27 | 2023-03-85 | 147 | DIBBS |
| 5107-237 | 2023-03-85 | 147 | DIBBS |
| 5107-237AP | 2023-03-85 | 147 | DIBBS |
| 4S-592-5-27 | 2021-12-356 | 143 | DIBBS |
| 5107-237 | 2021-12-356 | 143 | DIBBS |
| 5107-237AP | 2021-12-356 | 143 | DIBBS |
| 5325-00-003-0688 | 2021-05-140 | 2 | us |
| PP028KA237 | 2020-11-323 | 2 | DE |
| 5325-00-003-0688 | 2020-07-202 | 20 | US |
| PP028KA237 | 2020-04-104 | 2 | United States |
| 4S-592-5-27 | 2020-02-54 | 144 | DIBBS |
| 5107-237 | 2020-02-54 | 144 | DIBBS |
| 5107-237AP | 2020-02-54 | 144 | DIBBS |
| 5325-00-003-0688 | 2017-07-207 | 1 | CA |
| 5107237 | 2017-03-72 | 10 | United States |
| 5107237 | 2017-03-68 | 2 | US |
| 5107237 | 2017-03-68 | 1 | US |
| 5325-00-003-0688 | 2016-07-195 | 2 | United States |
| 5325-00-003-0688 | 2012-10-277 | 191 | DIBBS |
| 5325-00-003-0688 | 2012-09-254 | 75 | DIBBS |
| 5325-00-003-0688 | 2012-04-93 | 100 | US |
| 5325-00-003-0688 | 2012-01-27 | 121 | DIBBS |
| 5325-00-003-0688 | 2011-12-341 | 126 | DIBBS |
| PP028KA237 | 2011-01-21 | 500 | US |
| 5325-00-003-0688 | 2008-07-212 | 4 | US |
| PP028KA237 | 2008-07-211 | 4 | US |
| PP028KA237 | 2008-04-99 | 5 | US |
| 5325-00-003-0688 | 2006-10-277 | 2 | EC |
Cross Reference | NSN 5325-00-003-0688
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4S-592-5-27 | 85130 | FLOWSERVE CORPORATION DIV FLOWSERVE US INC |
| 5107-237 | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| 5107-237 | 59180 | IMO INDUSTRIES INC. DBA IMO PUMP DIVISION |
| 5107-237 | 79136 | TRUARC COMPANY LLC DBA WALDES TRUARC |
| 5107-237 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 5107-237AP | 1T943 | ACME PRODUCTS & ENGINEERING INC |
| PP028KA-237 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-003-0688
Technical Data | NSN 5325-00-003-0688
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL,SAE 1065 THRU SAE 1090 |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A50 SPECIAL |

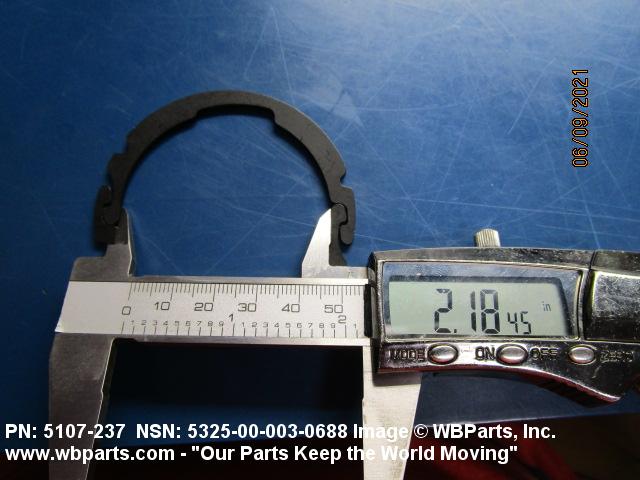

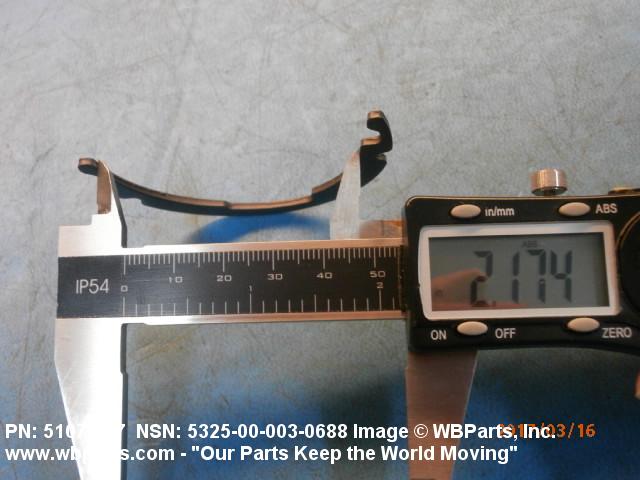

| INSIDE DIAMETER | 2.174 INCHES MINIMUM AND 2.186 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | D4 RECTANGULAR |

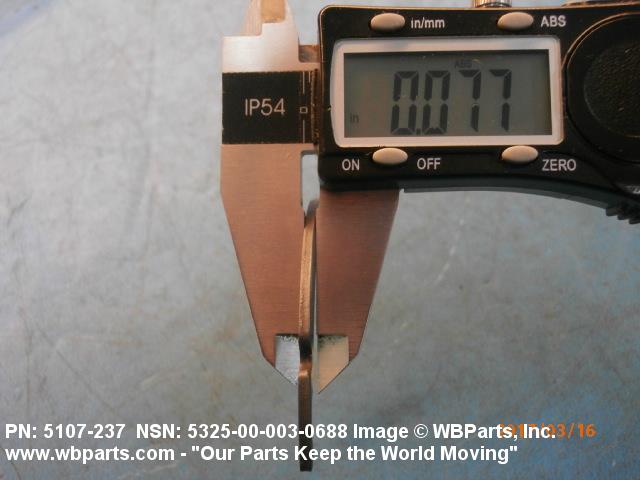

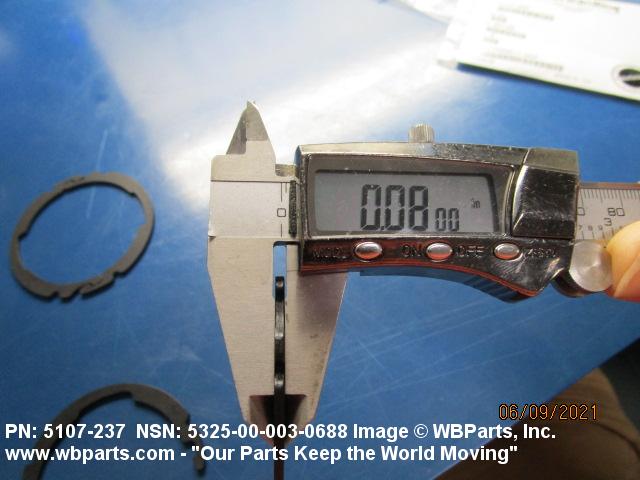

| MAJOR THICKNESS | 0.078 INCHES NOMINAL |
| USAGE DESIGN | EXTERNAL |
| MANUFACTURERS CODE | 79136 |
| DESIGN CONTROL REFERENCE | 5107-237 |
Restrictions/Controls & Freight Information | NSN 5325-00-003-0688
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-003-0688
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
