Product Details | SOLID RIVET

5320-01-603-7654 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.

Part Alternates: MS20426AD45A, MS20426AD4-5A, NASM20426, BACR15BA4AD5C, 5320-01-603-7654, 01-603-7654, 5320016037654, 016037654

Hardware and Abrasives | Rivets

Supply Group (FSG) NSN Assign. NIIN
53 14 MAR 2012 01-603-7654

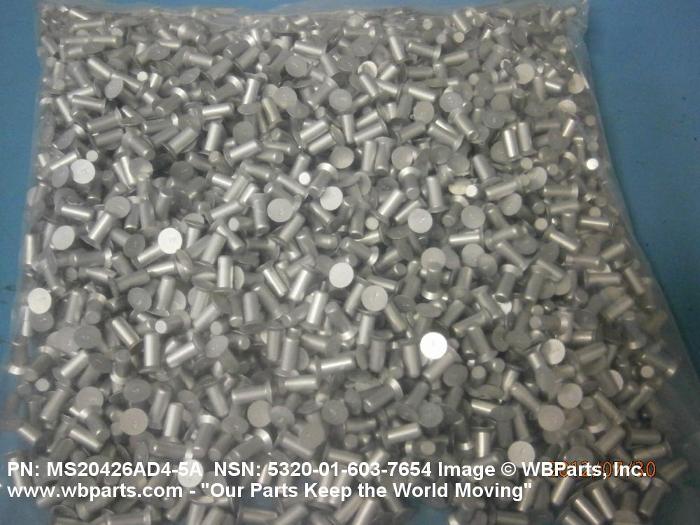

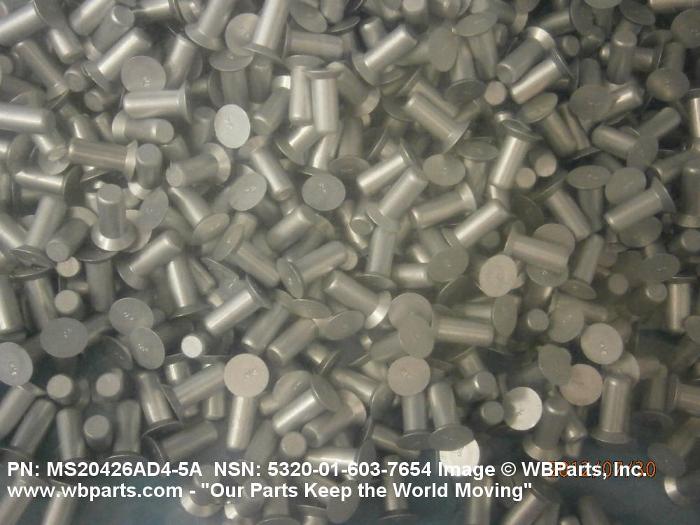

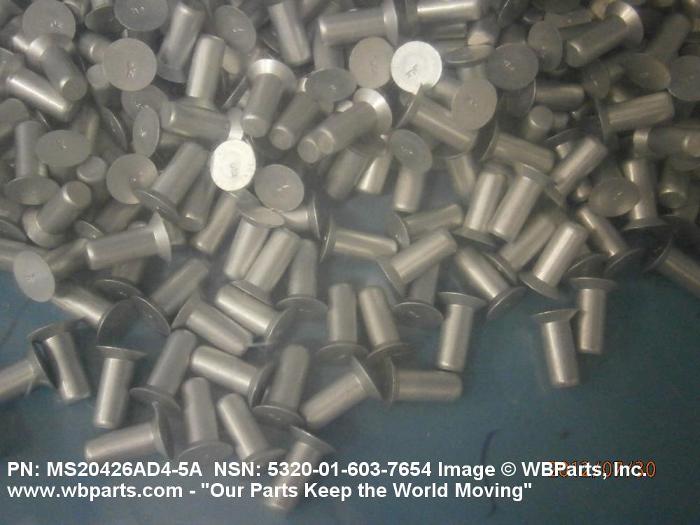

Drawings & Photos | NSN 5320-01-603-7654


Demand History | NSN 5320-01-603-7654

Part Number Request Date QTY Origin
5320-01-603-7654 2019-08-239 500 US
BACR15BA4AD5C 2013-07-207 12 United States
BACR15BA4AD5C 2012-08-241 72 US
MS20426AD45A 2012-07-200 1 Mexico
BACR15BA4AD5C 2012-07-192 120 United States
MS20426AD4-5A 2012-04-110 1169 Mexico
NASM20426 2012-03-68 500 United States
NASM20426 2011-09-271 2125 United States
NASM20426 2011-06-161 123 US
NASM20426 2011-06-161 369 US
NASM20426 2011-06-161 1230 US
NASM20426 2010-09-260 64 United States
NASM20426 2009-02-54 4 us
BACR15BA4AD5C 2008-03-74 1500 United Kingdom

Cross Reference | NSN 5320-01-603-7654

Part Number Cage Code Manufacturer
BACR15BA4AD5C 81205 THE BOEING COMPANY DBA BOEING
MS20426AD4-5A 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NASM20426 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-603-7654

Technical Data | NSN 5320-01-603-7654

Characteristic Specifications
HEAD STYLE FLUSH (FLAT) COUNTERSUNK (INCLUDED ANGLE - LESS THAN 135 DEG W OR W/O CHAMFER)
SURFACE TREATMENT ANODIZE OVERALL
SHANK STYLE STRAIGHT W/RADIUS CHAMFERED TIP
END ITEM IDENTIFICATION HELICOPTER,ATTACK,AH-64
SHANK DIAMETER 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM
HEAD HEIGHT 0.042 INCHES NOMINAL
HEAD MAJOR DIAMETER 0.221 INCHES MINIMUM AND 0.229 INCHES MAXIMUM
FASTENER LENGTH 0.3025 INCHES MINIMUM AND 0.3225 INCHES MAXIMUM
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-A-8625,TYPE II,CLASS I,CLEAR MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
COUNTERSINK ANGLE 99.5 DEGREES MINIMUM AND 100.5 DEGREES MAXIMUM
PART NAME ASSIGNED BY CONTROLLING AGENCY RIVET,SOLID,COUNTERSUNK 100 DEGREE PRECISION HEAD,ALUMINUM
MATERIAL ALUMINUM ALLOY 2117 OVERALL
SPECIAL FEATURES MATERIAL:2117-14 AL ALLOY
CHAMFER LENGTH 0.003 INCHES MINIMUM AND 0.007 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5320-01-603-7654

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
