NSN 5320-01-600-2598 3M1067D08300, 3M1067D08-300, 01-600-2598
Product Details | BLIND RIVET
5320-01-600-2598 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: 3M1067D08300, 3M1067D08-300, 5320-01-600-2598, 01-600-2598, 5320016002598, 016002598
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 NOV 2011 | 01-600-2598 | 00864 ( RIVET, BLIND ) |

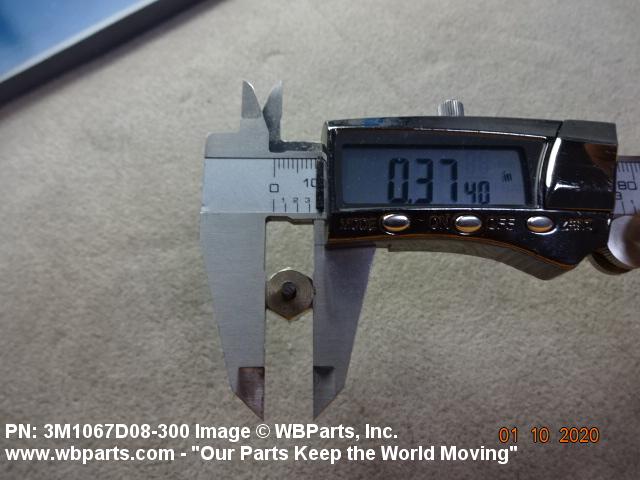

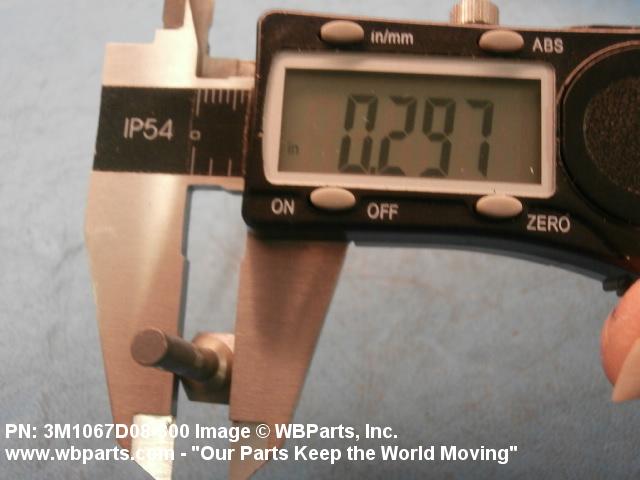

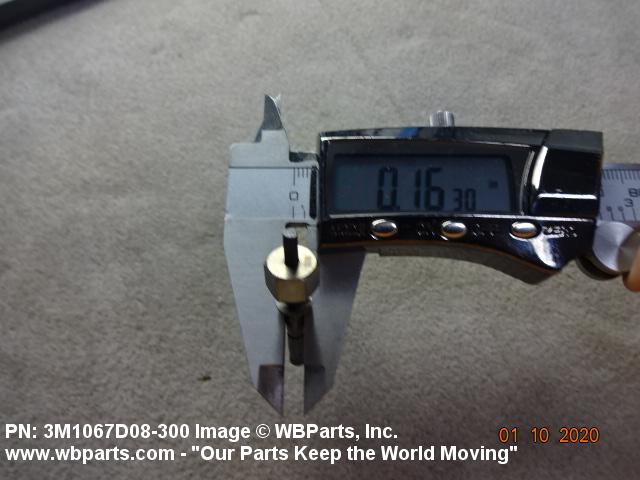

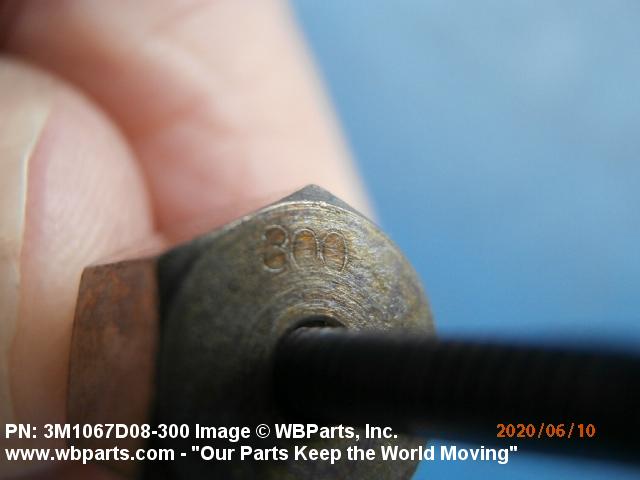

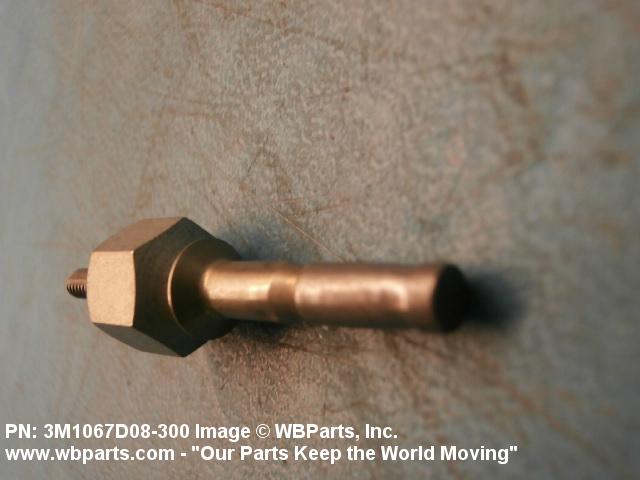

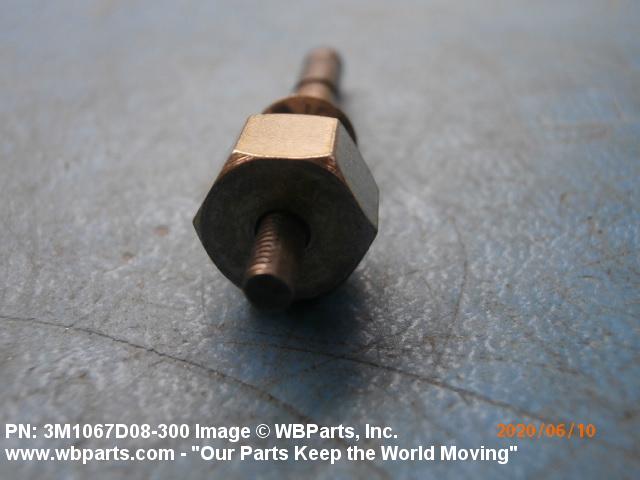

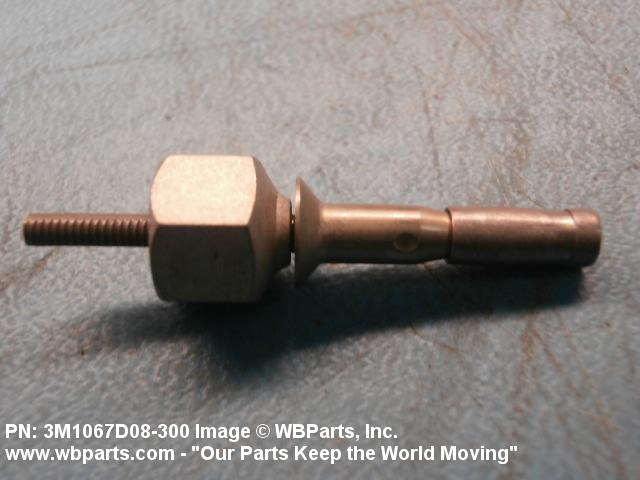

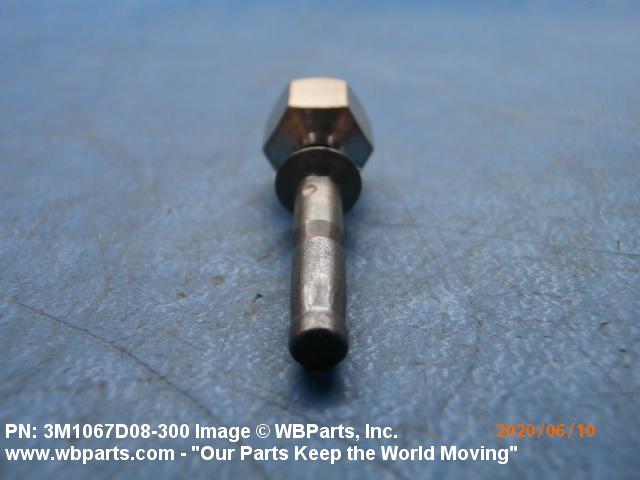

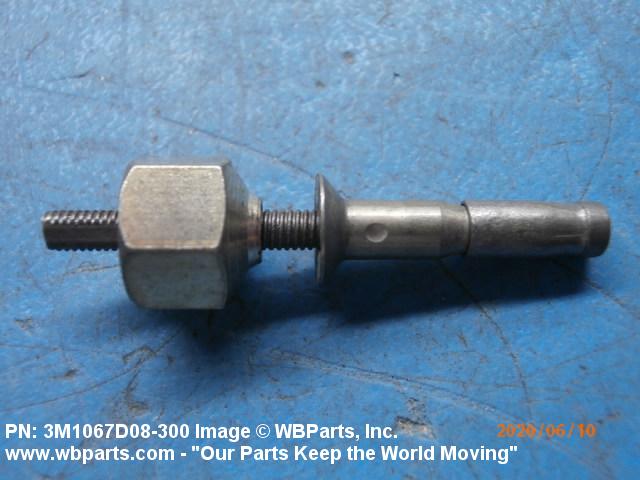

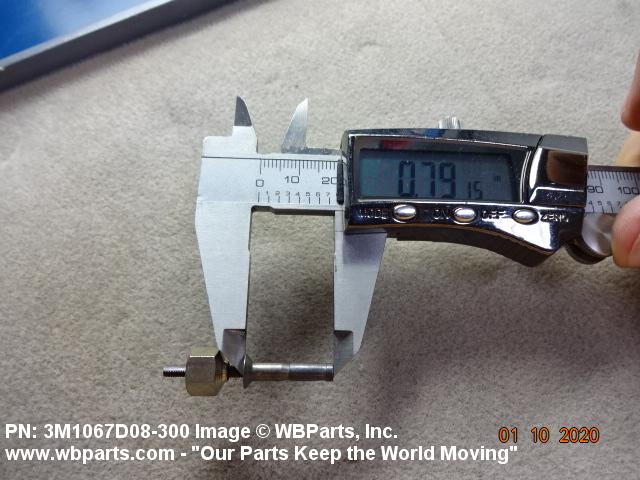

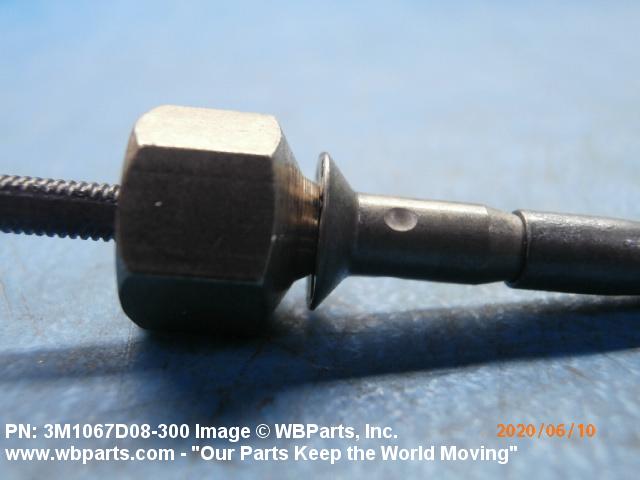

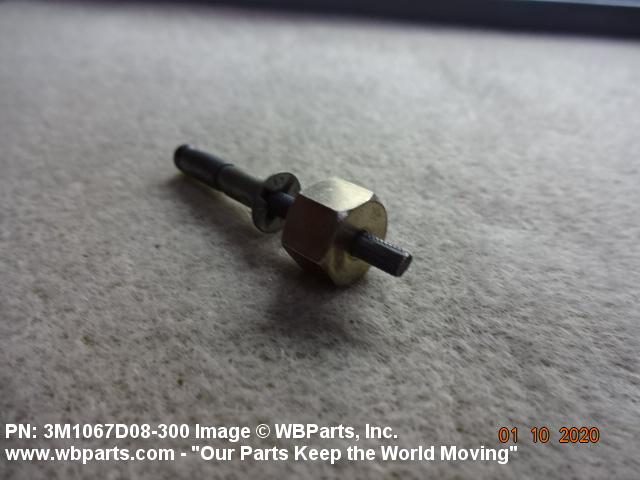

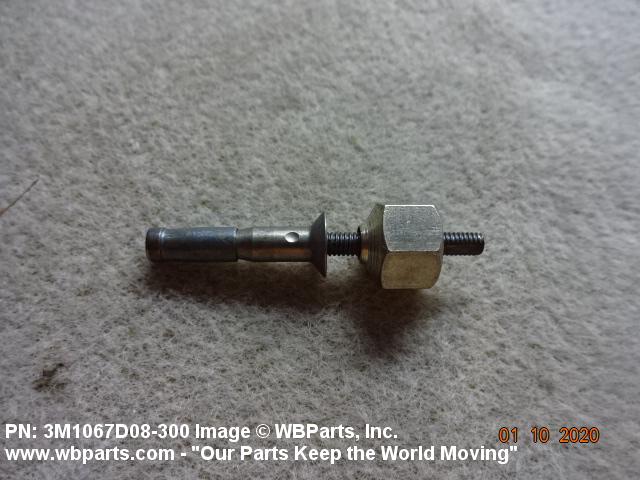

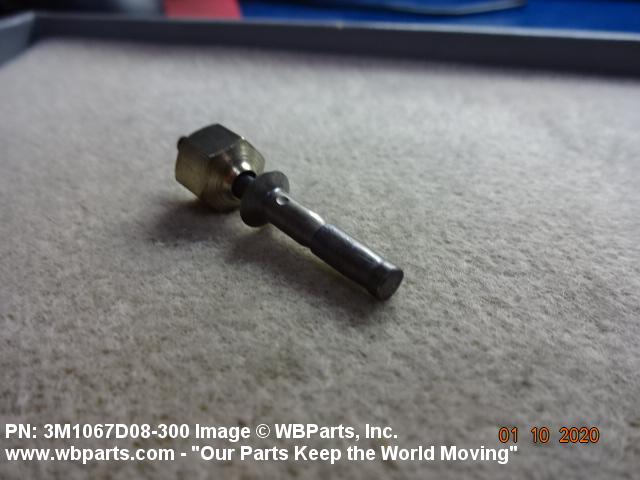

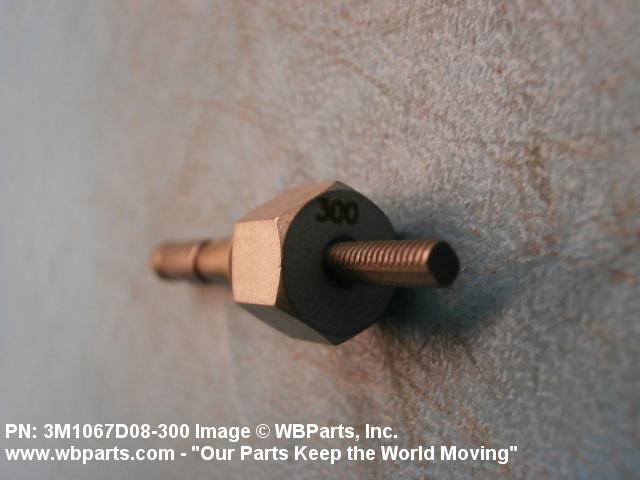

Drawings & Photos | NSN 5320-01-600-2598
Demand History | NSN 5320-01-600-2598
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-600-2598 | 2022-06-166 | 23 | DIBBS |
| 5320-01-600-2598 | 2022-05-146 | 23 | DIBBS |
| 5320-01-600-2598 | 2021-10-284 | 23 | DIBBS |
| 3M1067D08300 | 2020-05-150 | 25 | Australia |
| 3M1067D08300 | 2020-05-150 | 60 | Australia |
| 3M1067D08300 | 2019-12-336 | 55 | Australia |
| 3M1067D08300 | 2019-10-275 | 55 | Australia |
| 3M1067D08300 | 2018-12-348 | 55 | Australia |
| 3M1067D08300 | 2016-10-278 | 140 | Australia |
| 5320-01-600-2598 | 2012-05-122 | 3333 | DIBBS |
| 5320-01-600-2598 | 2012-03-87 | 3333 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-600-2598
Related Products | NSN 5320-01-600-2598
Technical Data | NSN 5320-01-600-2598
| Characteristic | Specifications |
|---|---|
| HEAD STYLE | FLUSH (FLAT) COUNTERSUNK (INCLUDED ANGLE - LESS THAN 135 DEG W OR W/O CHAMFER) |
| MATERIAL | STEEL CORROSION RESISTING SLEEVE |
| SURFACE TREATMENT | PASSIVATE SLEEVE |

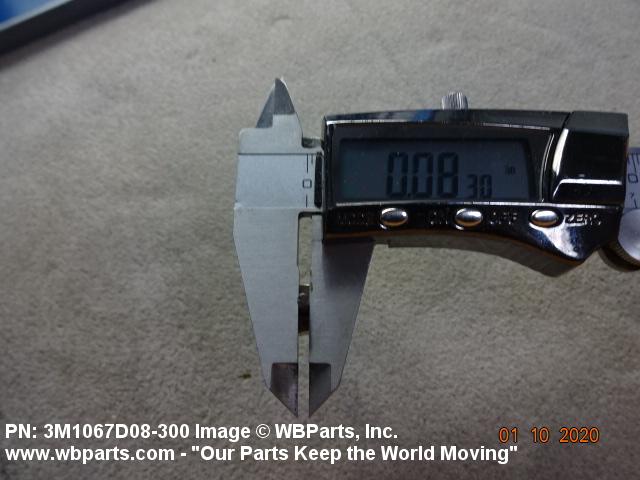

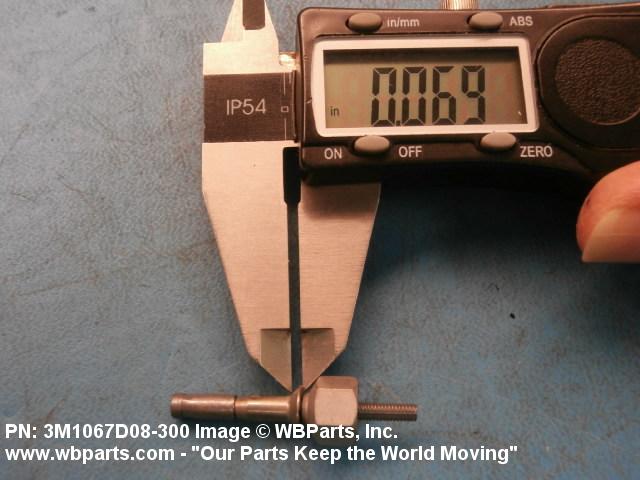

| HEAD HEIGHT | 0.069 INCHES NOMINAL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | FASTENER-BLIND, INTERNAL THREAD |

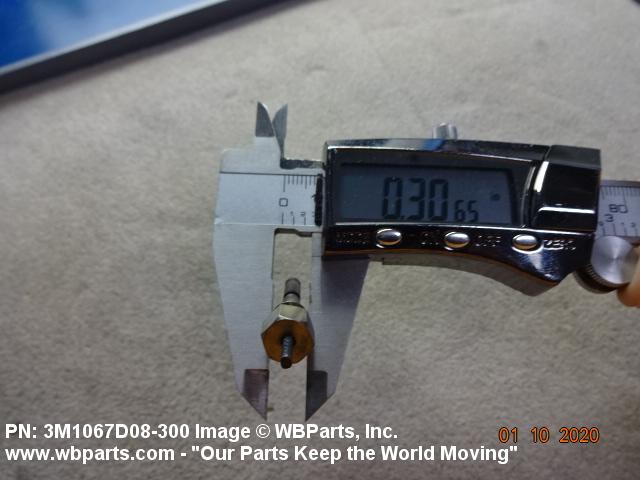

| HEAD MAJOR DIAMETER | 0.296 INCHES NOMINAL |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK STYLE | THREADED SELF-PLUGGING SHANK W/SLEEVE |

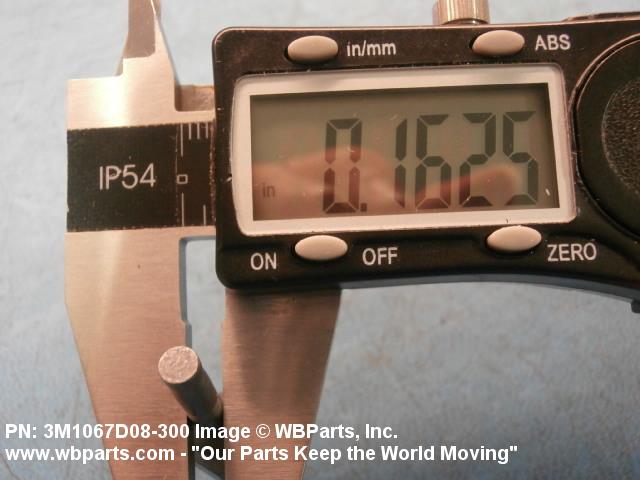

| SHANK DIAMETER | 0.1625 INCHES MINIMUM AND 0.1645 INCHES MAXIMUM |
| MATERIAL | STEEL CORROSION RESISTING THREADS |
| MATERIAL | TITANIUM ALLOY NUT |

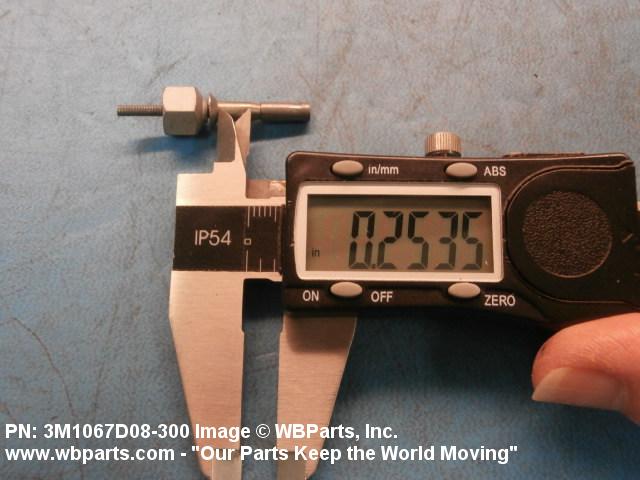

| GRIP LENGTH | 0.228 INCHES MINIMUM AND 0.268 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5320-01-600-2598
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-600-2598
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
