NSN 5320-01-589-7187 BACR15BB4AD4C, 01-589-7187, 015897187
Product Details | SOLID RIVET
5320-01-589-7187 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: BACR15BB4AD4C, 5320-01-589-7187, 01-589-7187, 5320015897187, 015897187
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 NOV 2010 | 01-589-7187 | 00861 ( RIVET, SOLID ) |

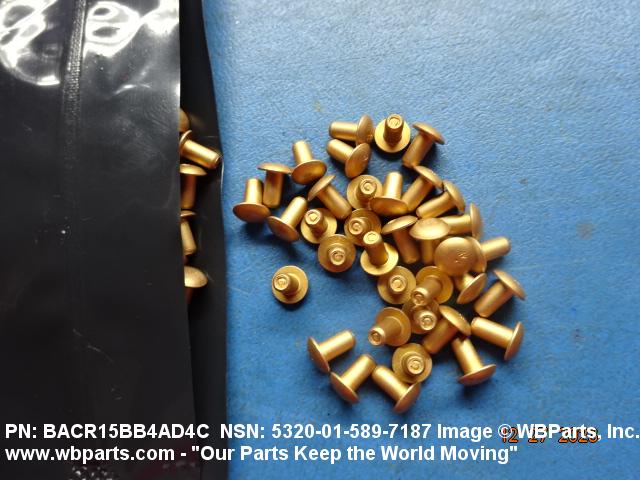

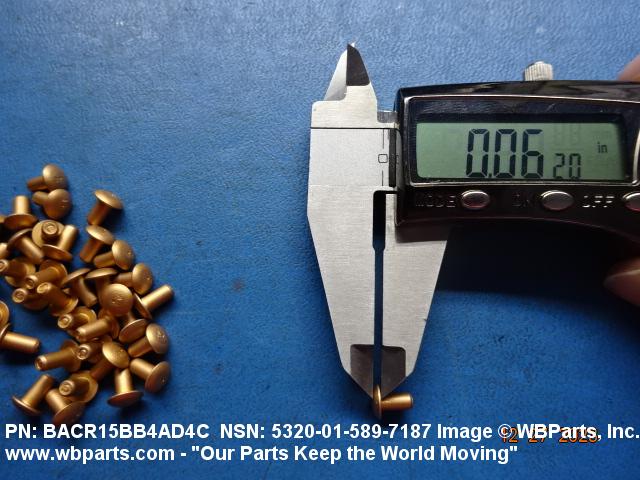

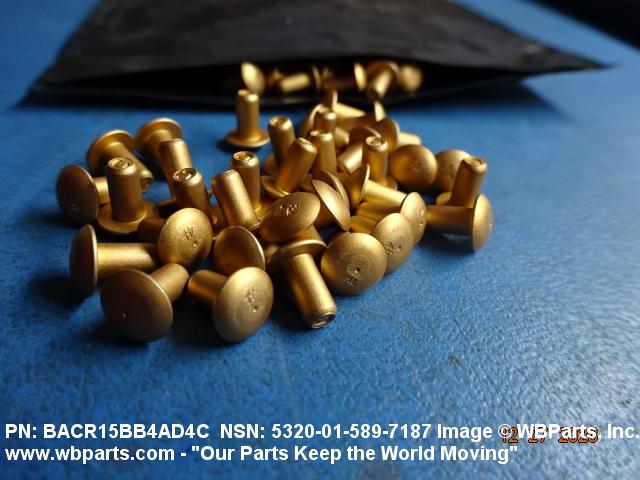

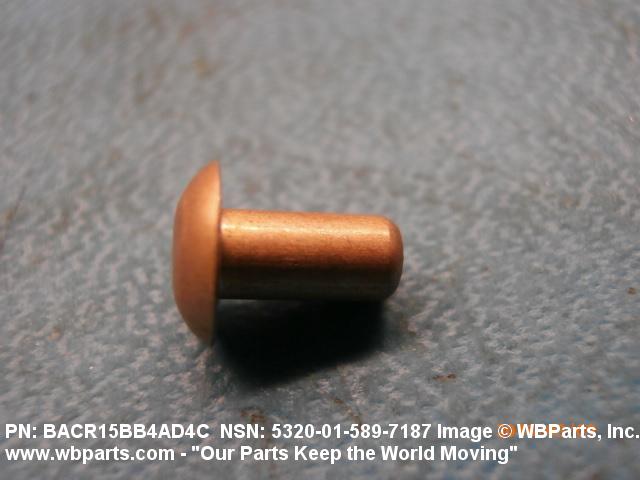

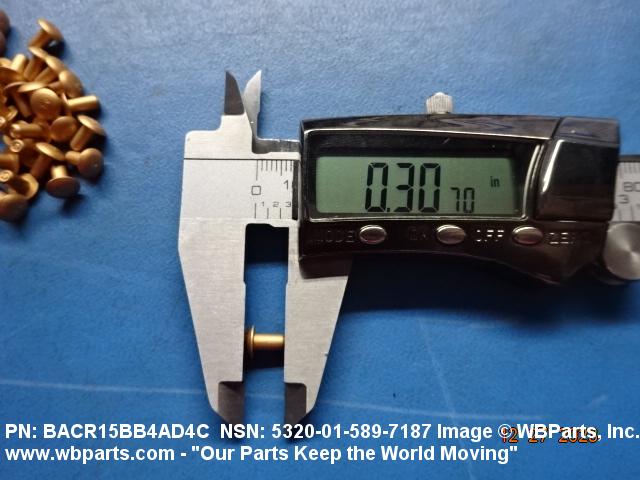

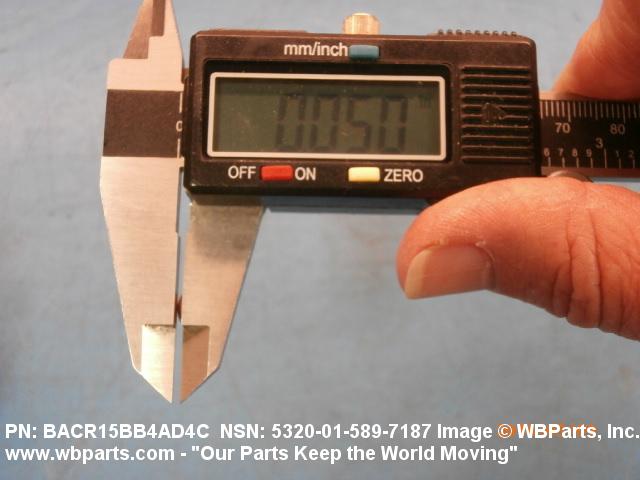

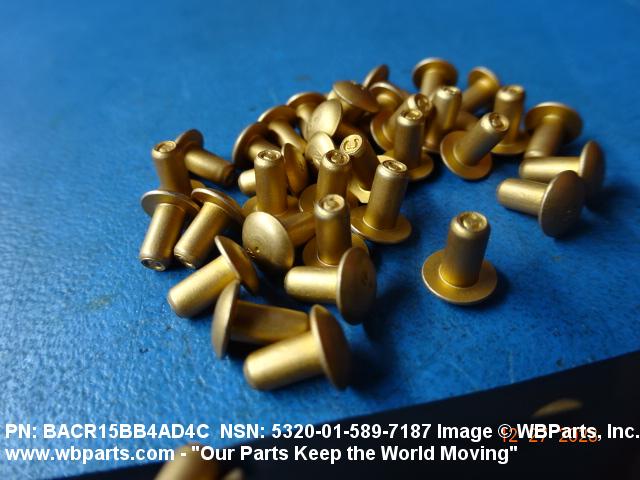

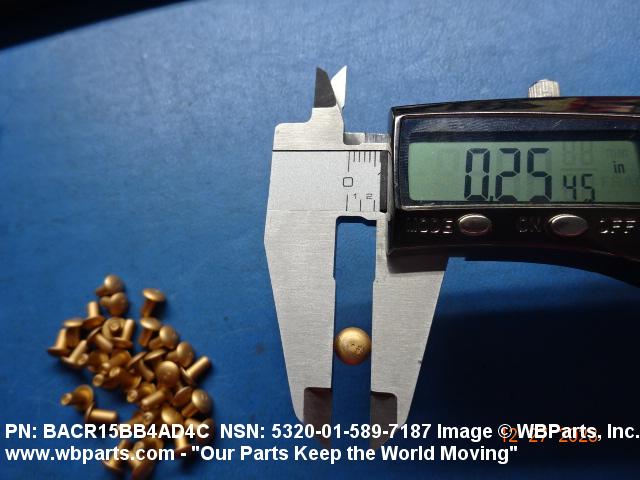

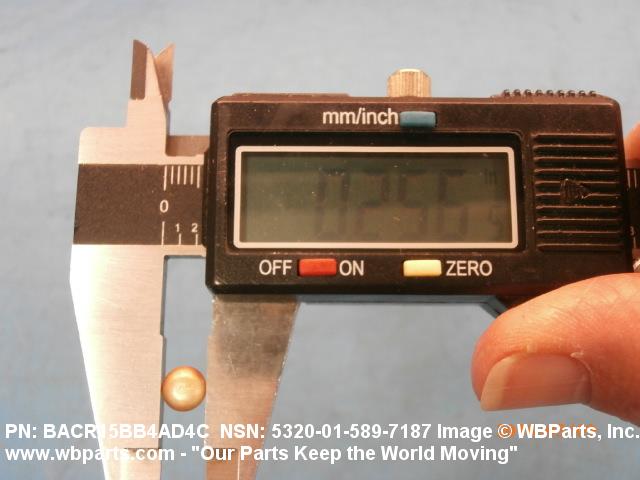

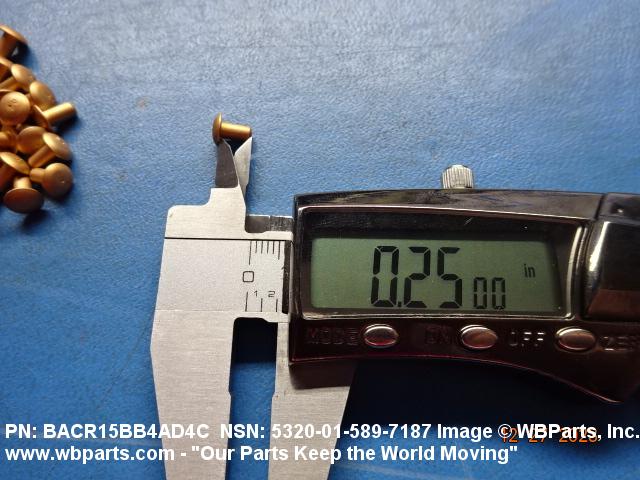

Drawings & Photos | NSN 5320-01-589-7187
Demand History | NSN 5320-01-589-7187
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACR15BB4AD4C | 2024-10-277 | 295 | DIBBS |
| BACR15BB4AD4C | 2023-12-355 | 170 | United States |
| BACR15BB4AD4C | 2023-11-333 | 180 | United States |
| BACR15BB4AD4C | 2023-09-258 | 50 | United States |
| BACR15BB4AD4C | 2023-03-60 | 45 | United States |
| BACR15BB4AD4C | 2021-12-344 | 110 | United States |
| 5320-01-589-7187 | 2021-06-181 | 25 | us |
| BACR15BB4AD4C | 2021-04-109 | 80 | United States |
| BACR15BB4AD4C | 2020-09-266 | 45 | United States |
| BACR15BB4AD4C | 2019-08-231 | 106 | DIBBS |
| BACR15BB4AD4C | 2016-02-60 | 150 | United States |
| BACR15BB4AD4C | 2008-03-74 | 3000 | United Kingdom |
| BACR15BB4AD4C | 2007-07-198 | 400 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-589-7187
Related Products | NSN 5320-01-589-7187
Technical Data | NSN 5320-01-589-7187
| Characteristic | Specifications |
|---|---|
| SHANK STYLE | STRAIGHT W/RADIUS CHAMFERED TIP |
| SHANK DIAMETER | 0.1250 INCHES MINIMUM AND 0.1275 INCHES MAXIMUM |
| HEAD HEIGHT | 0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.252 INCHES MINIMUM AND 0.262 INCHES MAXIMUM |
| HEAD STYLE | UNIVERSAL |
| MATERIAL | ALUMINUM ALLOY 2117 WASHER |
| FASTENER LENGTH | 0.250 INCHES NOMINAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE WASHER |
| SURFACE TREATMENT | CHROMATE WASHER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541, CLASS 1A MIL SPEC SINGLE TREATMENT RESPONSE WASHER |
Restrictions/Controls & Freight Information | NSN 5320-01-589-7187
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-589-7187
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
