NSN 5320-01-578-1811 3M1067D08250, 3M1067D08-250, 01-578-1811
Product Details | BLIND RIVET
5320-01-578-1811 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: 3M1067D08250, 3M1067D08-250, 5320-01-578-1811, 01-578-1811, 5320015781811, 015781811
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 SEP 2009 | 01-578-1811 | 00864 ( RIVET, BLIND ) |

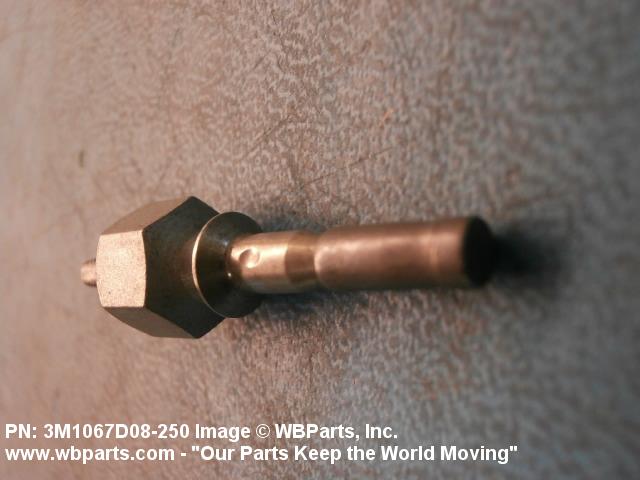

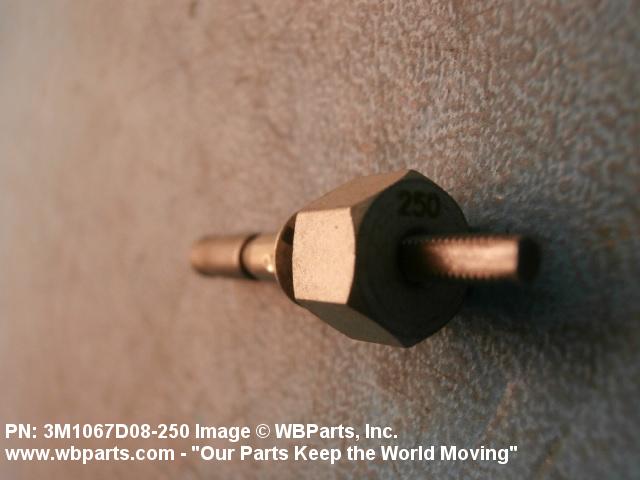

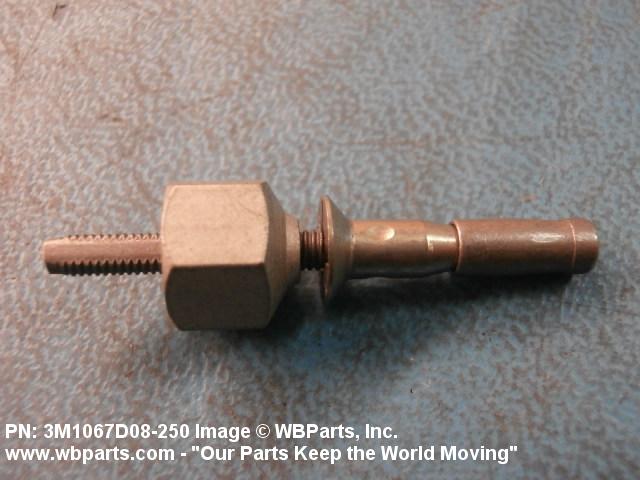

Drawings & Photos | NSN 5320-01-578-1811
Demand History | NSN 5320-01-578-1811
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3M1067D08-250 | 2021-11-320 | 20 | DIBBS |
| 5320-01-578-1811 | 2016-10-278 | 1 | Australia |
| 3M1067D08250 | 2016-10-278 | 300 | Australia |
Cross Reference | NSN 5320-01-578-1811
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M1067D08-250 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-578-1811
Technical Data | NSN 5320-01-578-1811
| Characteristic | Specifications |
|---|---|
| HEAD STYLE | FLUSH (FLAT) COUNTERSUNK (INCLUDED ANGLE - LESS THAN 135 DEG W OR W/O CHAMFER) |

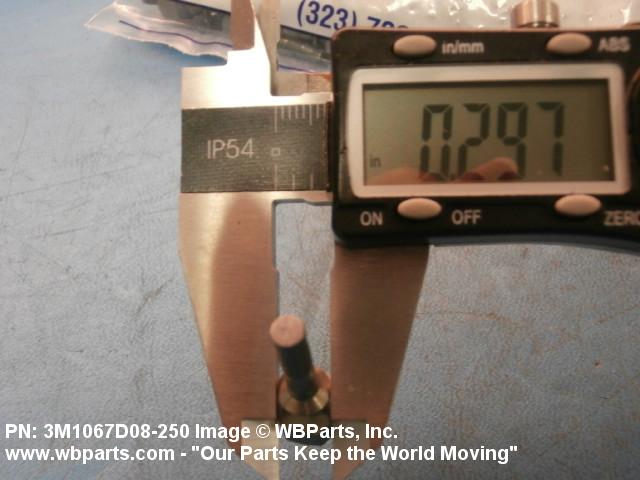

| HEAD MAJOR DIAMETER | 0.325 INCHES MINIMUM AND 0.332 INCHES MAXIMUM |
| SURFACE TREATMENT | PASSIVATE NUT |

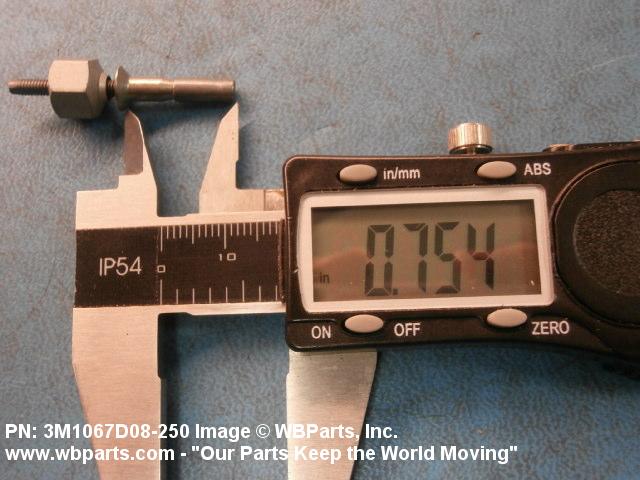

| FASTENER LENGTH | 0.760 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 304 SLEEVE |

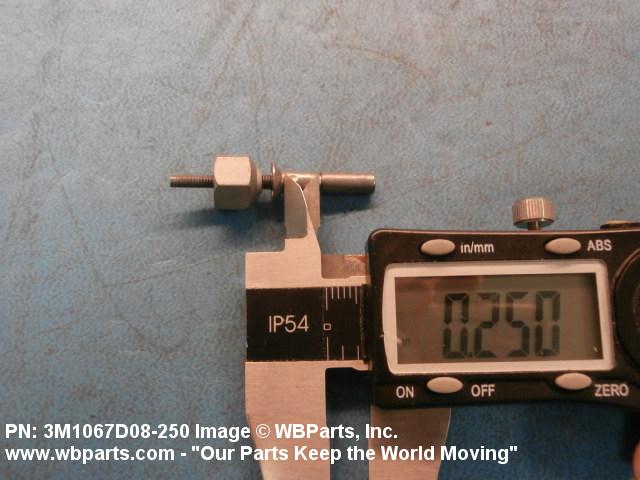

| GRIP LENGTH | 0.200 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| MATERIAL | TITANIUM ALLOY UNS R56400 NUT |

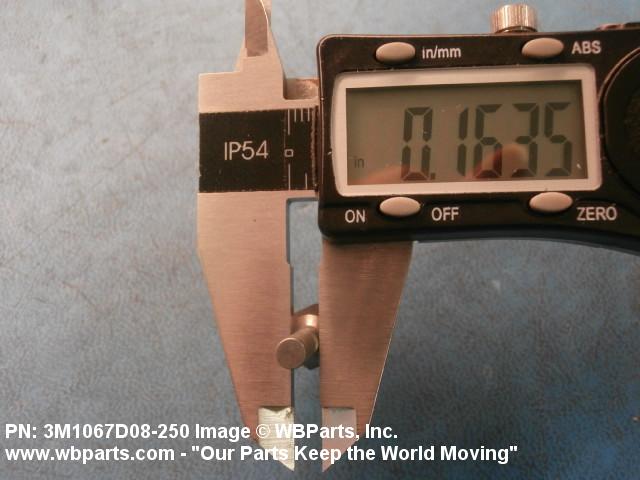

| SHANK DIAMETER | 0.1625 INCHES MINIMUM AND 0.1645 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5320-01-578-1811
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
