NSN 5320-01-572-3922 NAS1721H5L8A, 01-572-3922, 015723922
Product Details | BLIND RIVET
5320-01-572-3922 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS1721H5L8A, 5320-01-572-3922, 01-572-3922, 5320015723922, 015723922
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 MAR 2009 | 01-572-3922 | 00864 ( RIVET, BLIND ) |

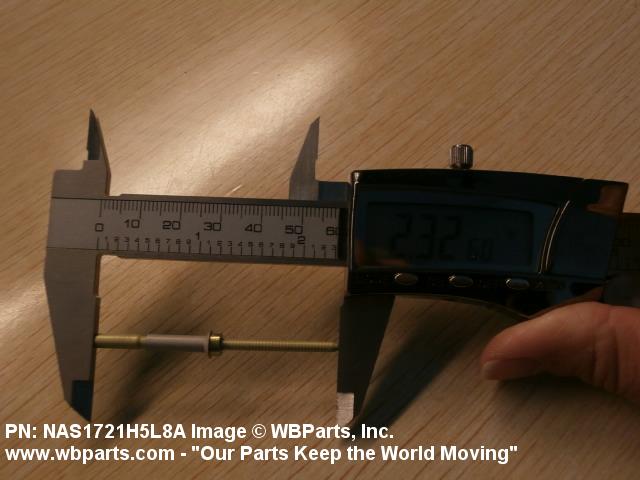

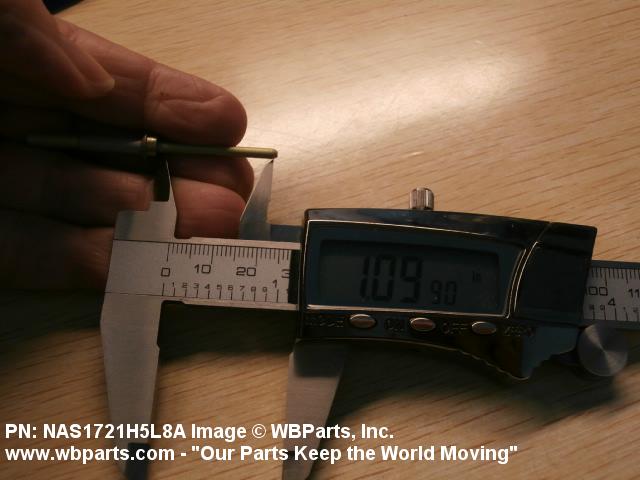

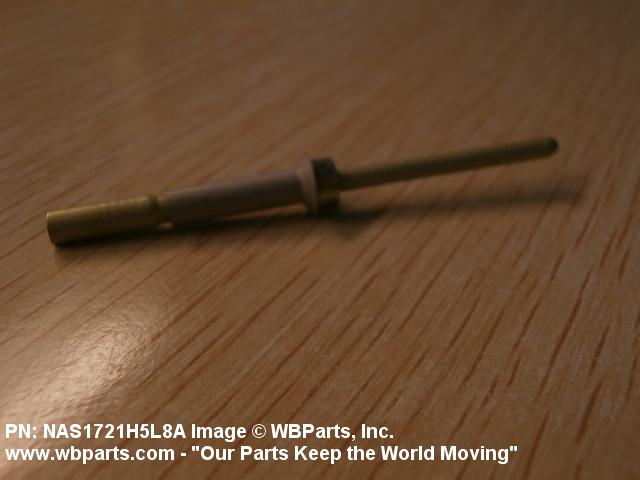

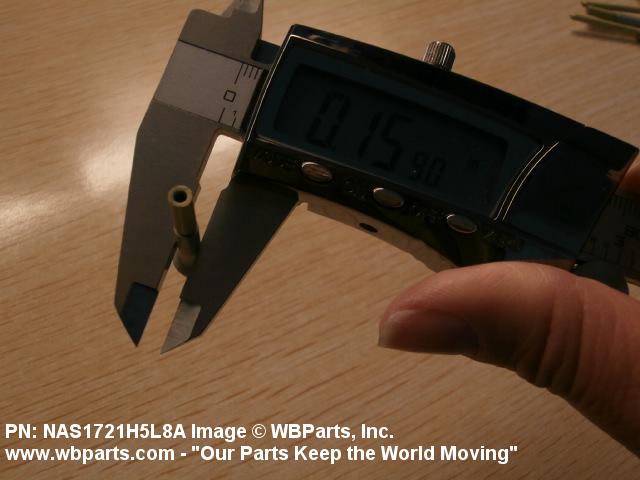

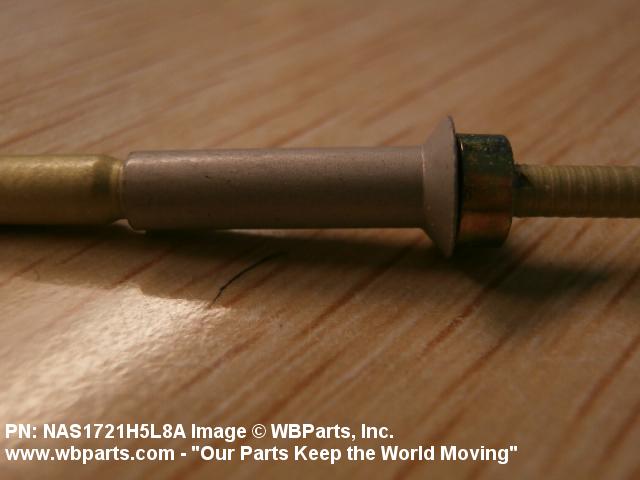

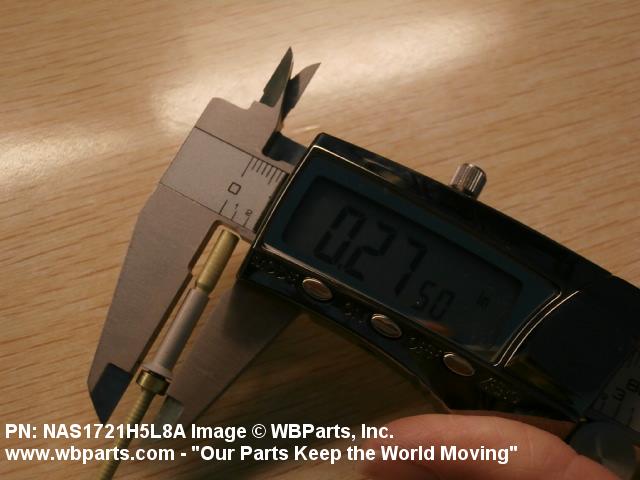

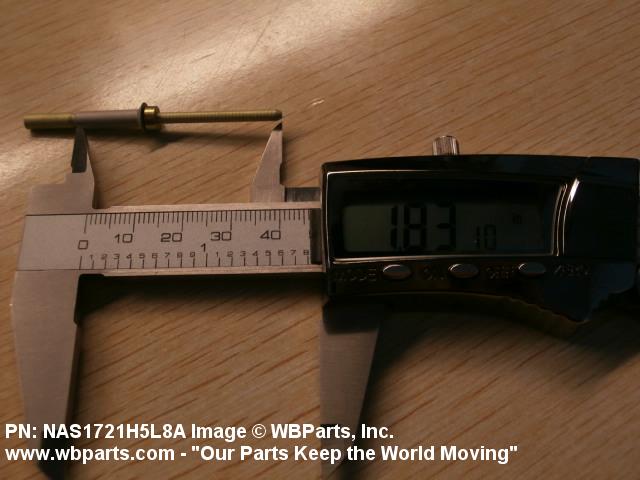

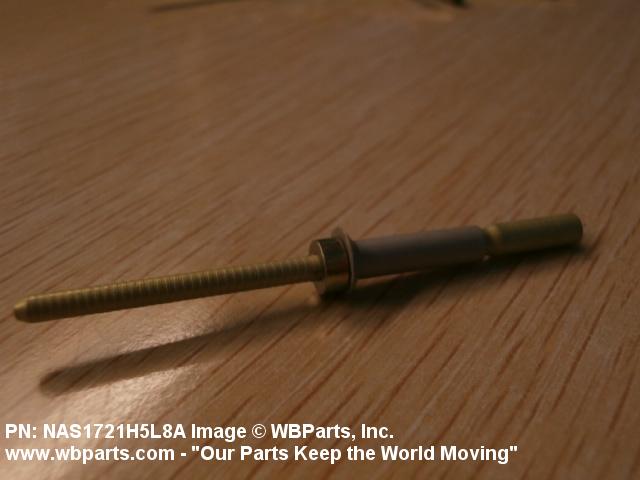

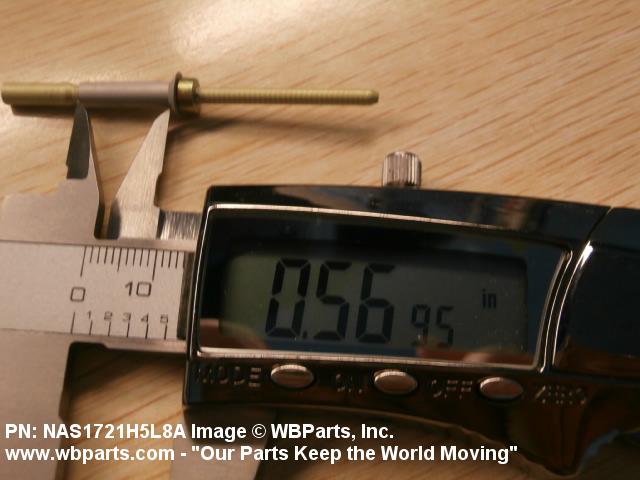

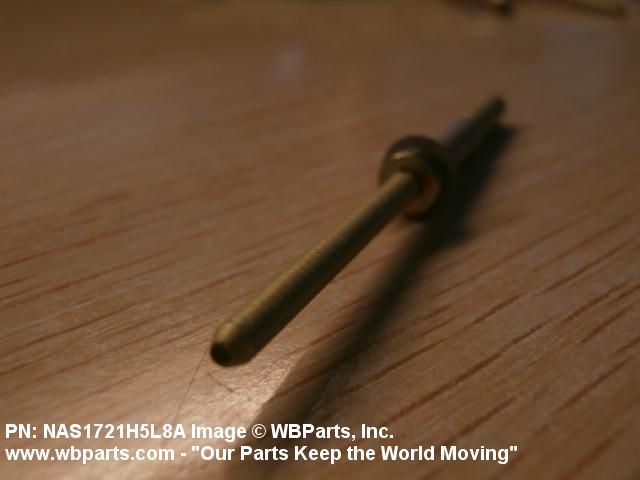

Drawings & Photos | NSN 5320-01-572-3922
Demand History | NSN 5320-01-572-3922
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1721H5L8A | 2017-05-123 | 10 | Australia |
| NAS1721H5L8A | 2017-04-111 | 10 | Australia |
Cross Reference | NSN 5320-01-572-3922
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1721H5L8A | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-572-3922
Technical Data | NSN 5320-01-572-3922
| Characteristic | Specifications |
|---|---|
| HEAD STYLE | FLUSH (FLAT) COUNTERSUNK (INCLUDED ANGLE - LESS THAN 135 DEG W OR W/O CHAMFER) |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SHANK DIAMETER | 0.155 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 YELLOW MIL SPEC 1ST TREATMENT RESPONSE MANDREL OR MIL-C-5541 CHEM FILM MIL SPEC 2ND TREATMENT RESPONSE MANDREL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE MANDREL |
| END ITEM IDENTIFICATION | AIRCRAFT APPLICATIONS |
| SHANK STYLE | SELF-PLUGGING MECHANICALLY LOCKED STEM |
| MATERIAL | ALUMINUM ALLOY 7075 MANDREL |
| SPECIAL FEATURES | RIVET-BLIND,100DEG FLUSH HEAD (MS20426 HEAD),MECHANICALLY LOCKED SPINDLE;MAX LENGTH 1.13IN |
| GRIP LENGTH | 0.422 INCHES MINIMUM AND 0.616 INCHES MAXIMUM |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | BLIND RIVET FLUSH HEAD |
| SURFACE TREATMENT | ANODIZE MANDREL |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| HEAD MAJOR DIAMETER | 0.285 INCHES MINIMUM AND 0.286 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5320-01-572-3922
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096320 | RIVETS I/S NICKEL PLATED BUFFED |
| Less than car load rating | Z | No Rating |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XA | Defense Threat Reduction Agency ATTN: DTRA/NOCO Kirtland AFB, NM 87117-5669 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
