NSN 5320-01-550-1069 CR3243403, CR3243-4-03, 01-550-1069

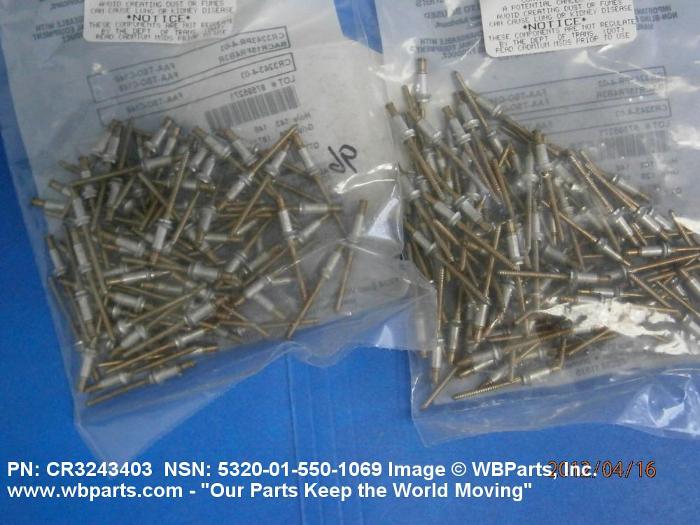

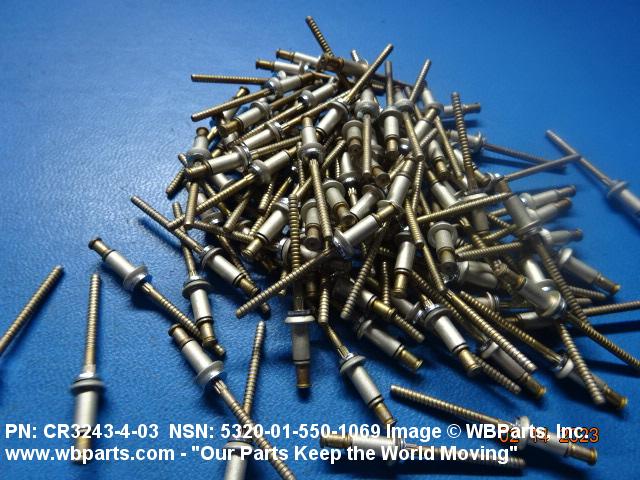

Product Details | BLIND RIVET
5320-01-550-1069 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: CR3243403, CR3243-4-03, 5320-01-550-1069, 01-550-1069, 5320015501069, 015501069
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 APR 2007 | 01-550-1069 | 00864 ( RIVET, BLIND ) |

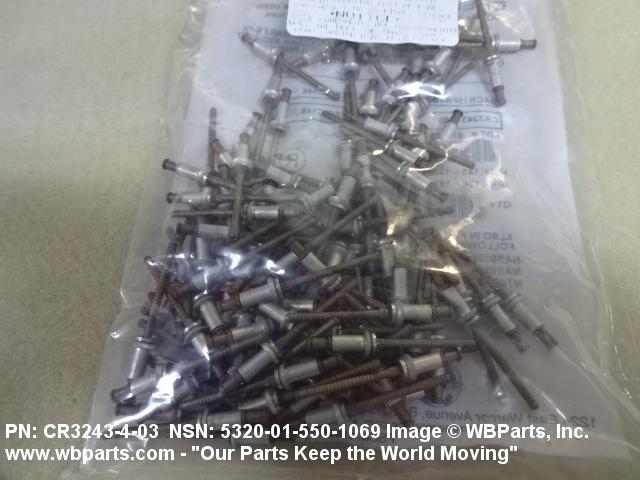

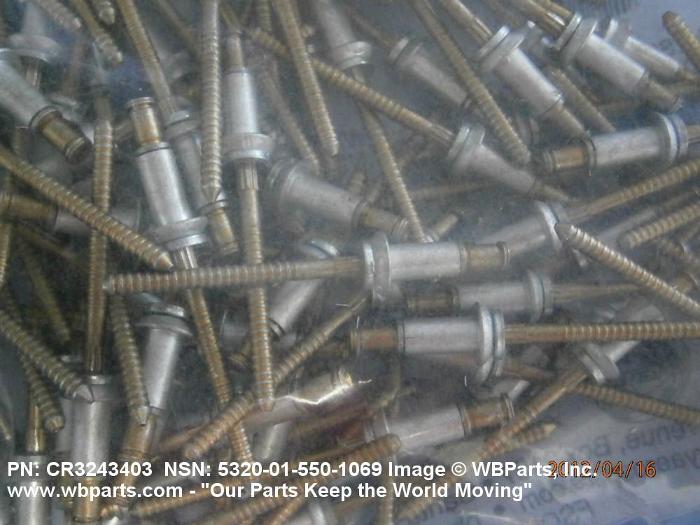

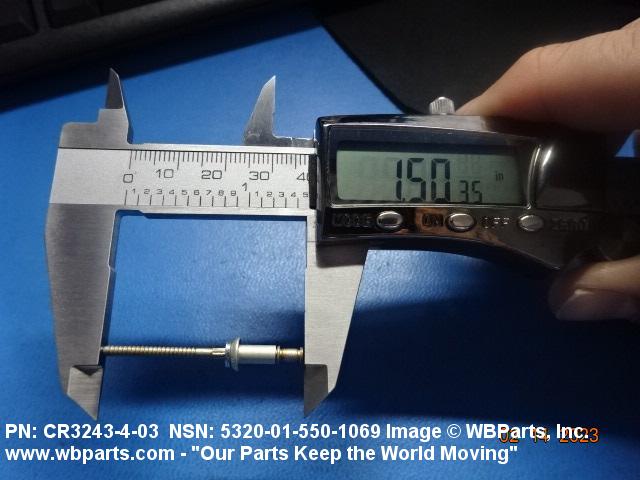

Drawings & Photos | NSN 5320-01-550-1069
Demand History | NSN 5320-01-550-1069
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CR3243-4-03 | 2019-07-212 | 10841 | DIBBS |
| 5320-01-550-1069 | 2019-05-144 | 1 | United States |
| 5320-01-550-1069 | 2018-06-164 | 400 | DIBBS |
| 5320-01-550-1069 | 2018-05-150 | 1034 | DIBBS |
| 5320-01-550-1069 | 2018-03-63 | 3466 | DIBBS |
| 5320-01-550-1069 | 2018-02-35 | 100 | DIBBS |
| 5320-01-550-1069 | 2018-01-31 | 400 | DIBBS |
| 5320-01-550-1069 | 2018-01-31 | 300 | DIBBS |
| 5320-01-550-1069 | 2018-01-31 | 600 | DIBBS |
| 5320-01-550-1069 | 2018-01-25 | 200 | DIBBS |
| 5320-01-550-1069 | 2018-01-25 | 300 | DIBBS |
| 5320-01-550-1069 | 2018-01-25 | 600 | DIBBS |
| 5320-01-550-1069 | 2018-01-25 | 1600 | DIBBS |
| 5320-01-550-1069 | 2017-11-332 | 10 | DIBBS |
| 5320-01-550-1069 | 2017-07-187 | 100 | DIBBS |
| CR3243403 | 2017-05-142 | 800 | US |
| CR3243403 | 2017-04-96 | 50 | US |
| 5320-01-550-1069 | 2017-03-68 | 30 | US |
| 5320-01-550-1069 | 2016-12-349 | 50 | DIBBS |
| 5320-01-550-1069 | 2016-10-293 | 3465 | DIBBS |
| CR3243403 | 2016-05-133 | 5000 | Egypt |
| CR3243403 | 2016-01-26 | 400 | US |
| CR3243403 | 2015-06-162 | 1500 | IL |
| CR3243403 | 2014-07-196 | 5 | AR |
| CR3243403 | 2013-08-213 | 50 | US |
| CR3243-4-03 | 2013-05-134 | 50 | CZ |
| CR3243403 | 2012-12-338 | 2000 | CO |
| CR3243403 | 2012-03-65 | 200 | United States |
| CR3243403 | 2012-03-65 | 200 | United States |
Cross Reference | NSN 5320-01-550-1069
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CR3243-4-03 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-550-1069
Related Products | NSN 5320-01-550-1069
Technical Data | NSN 5320-01-550-1069
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING COLLAR ALUMINUM ALLOY 5056 SLEEVE STEEL COMP 8740 STEM |
| SURFACE TREATMENT | PASSIVATE COLLAR CADMIUM STEM |

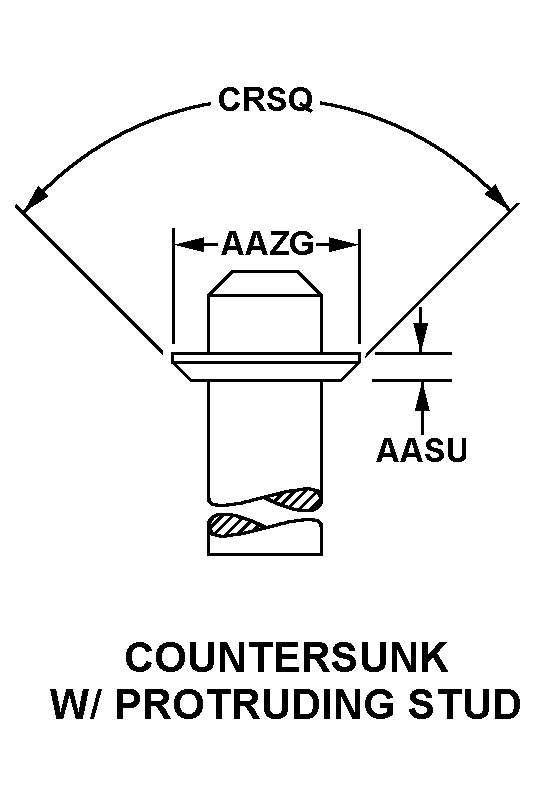

| HEAD STYLE | C39 COUNTERSUNK W/PROTRUDING STUD |

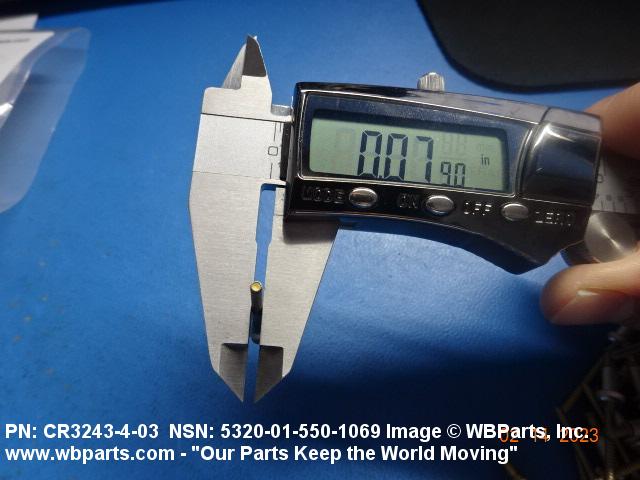

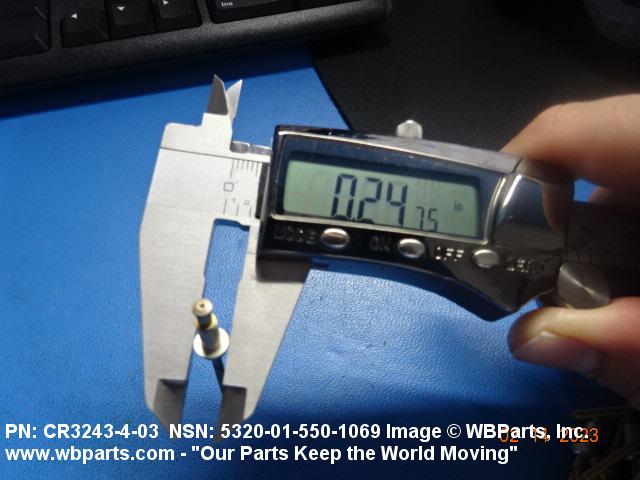

| HEAD HEIGHT | 0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |

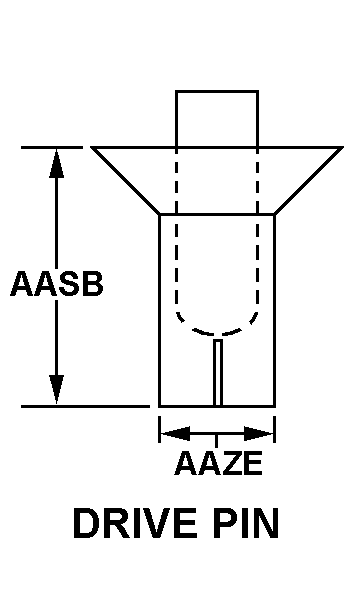

| SHANK STYLE | D20 DRIVE PIN |

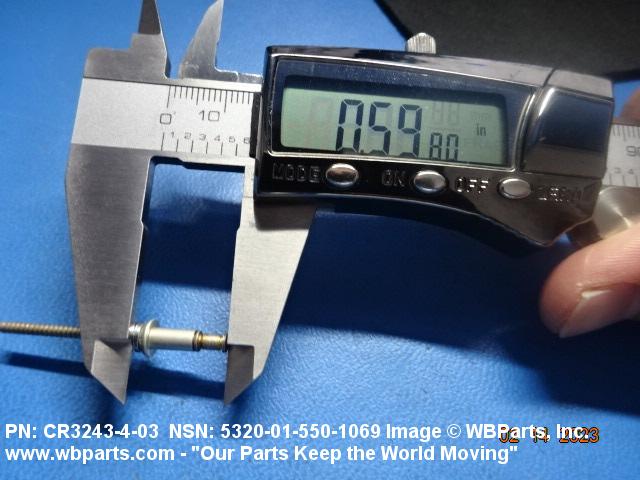

| FASTENER LENGTH | 0.180 INCHES MINIMUM AND 0.251 INCHES MAXIMUM |
