Product Details | SOLID RIVET

5320-01-537-2393 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.

Part Alternates: BACR15BA3AD3C, 5320-01-537-2393, 01-537-2393, 5320015372393, 015372393

Hardware and Abrasives | Rivets

Supply Group (FSG) NSN Assign. NIIN
53 31 JAN 2006 01-537-2393

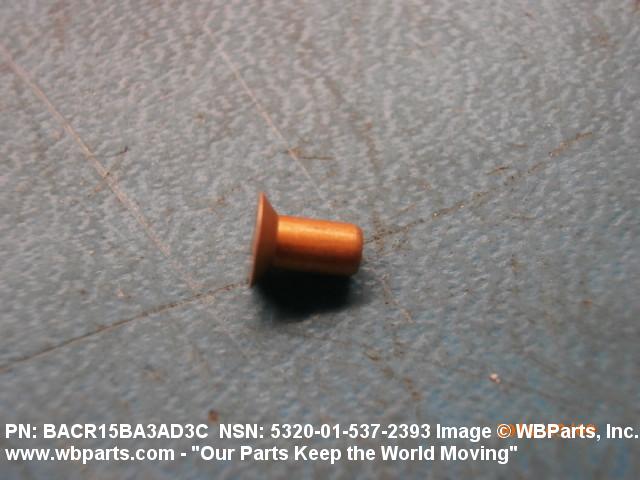

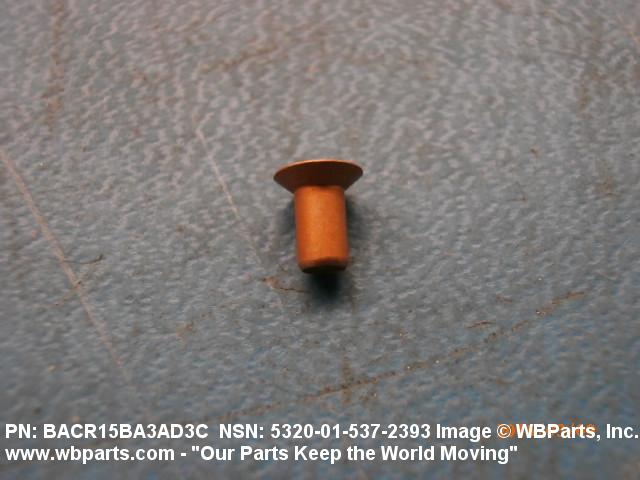

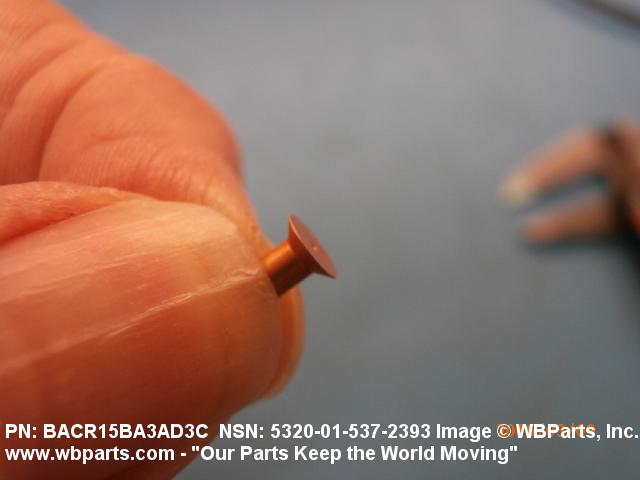

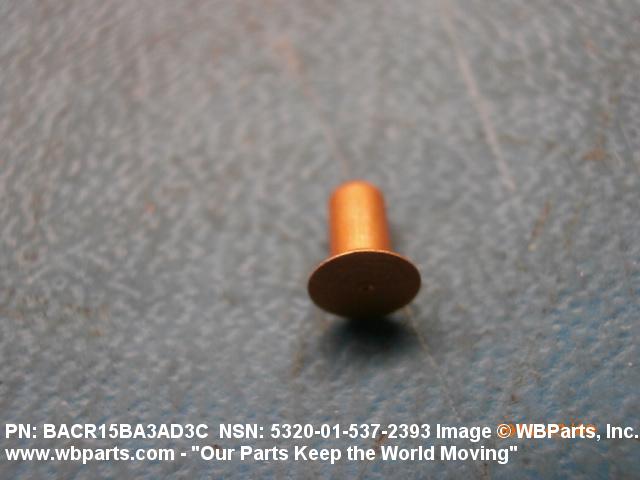

Drawings & Photos | NSN 5320-01-537-2393


Demand History | NSN 5320-01-537-2393

Part Number Request Date QTY Origin
BACR15BA3AD3C 2024-04-99 100 US
BACR15BA3AD3C 2024-02-57 300 US
BACR15BA3AD3C 2023-04-103 10400 United States
BACR15BA3AD3C 2022-08-237 2550 United States
BACR15BA3AD3C 2022-04-96 150 US
BACR15BA3AD3C 2022-01-05 6500 United States
BACR15BA3AD3C 2021-06-181 6500 United States
BACR15BA3AD3C 2020-11-317 2000 United States
BACR15BA3AD3C 2020-06-161 6500 United States
BACR15BA3AD3C 2019-08-242 1 United States
BACR15BA3AD3C 2019-08-226 1112 DIBBS
5320-01-537-2393 2018-09-254 500 United States
5320-01-537-2393 2018-01-21 477 DIBBS
BACR15BA3AD3C 2017-04-103 2500 United States
BACR15BA3AD3C 2017-03-75 10500 United States
BACR15BA3AD3C 2016-09-245 5700 United States
5320-01-537-2393 2016-05-151 477 DIBBS
BACR15BA3AD3C 2016-02-60 1500 United States
BACR15BA3AD3C 2016-02-40 214 TR
5320-01-537-2393 2014-07-190 2381 DIBBS
5320-01-537-2393 2014-06-174 2381 DIBBS
BACR15BA3AD3C 2013-12-364 8 Singapore
BACR15BA3AD3C 2013-12-336 6 US
BACR15BA3AD3C 2013-12-336 6 US
BACR15BA3AD3C 2013-10-294 276 US
5320-01-537-2393 2013-08-218 770 United States
5320-01-537-2393 2012-03-90 477 DIBBS
5320-01-537-2393 2012-02-33 477 DIBBS
5320-01-537-2393 2011-11-322 477 DIBBS
BACR15BA3AD3C 2011-04-119 40 United States
BACR15BA3AD3C 2007-12-347 6000 United Kingdom

Cross Reference | NSN 5320-01-537-2393

Part Number Cage Code Manufacturer
BACR15BA3AD3C 81205 THE BOEING COMPANY DBA BOEING
BACR15BA3AD3C Z03F0 BOEING DEFENCE AUSTRALIA LTD
BACR15BA3AD3C Z8T75 BOEING DEFENCE AUSTRALIA LTD

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-537-2393

Technical Data | NSN 5320-01-537-2393

Characteristic Specifications
MATERIAL ALUMINUM ALLOY 2117 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT PHOSPHATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-A-8625 TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
HEAT TREATMENT T-4 SOLUTION HEAT TREATED OVERALL
SHEAR STRENGTH 26000 SINGLE POUNDS PER SQUARE INCH
HEAD STYLE C9 FLUSH COUNTERSUNK

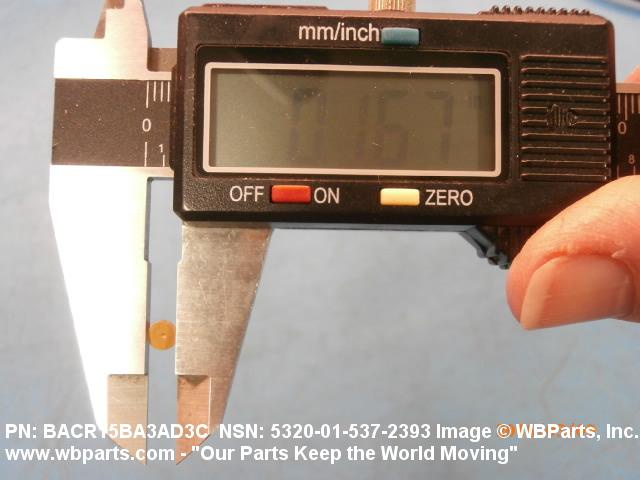

HEAD MAJOR DIAMETER 0.184 INCHES MAXIMUM
COUNTERSINK ANGLE 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
SHANK STYLE D10 STRAIGHT WITH RADIUS CHAMFERED TIP

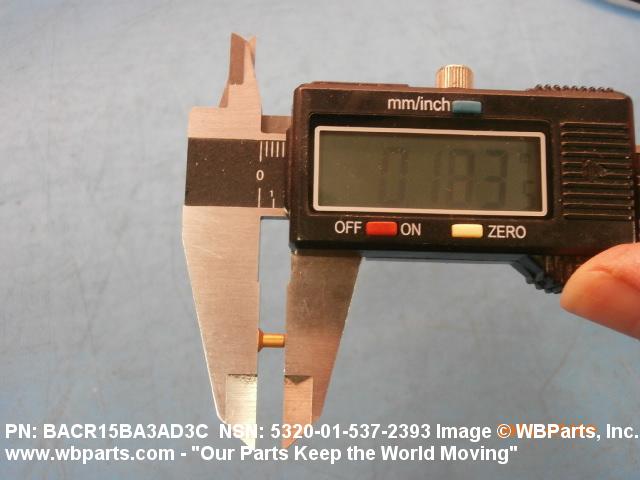

FASTENER LENGTH 0.178 INCHES MINIMUM AND 0.198 INCHES MAXIMUM

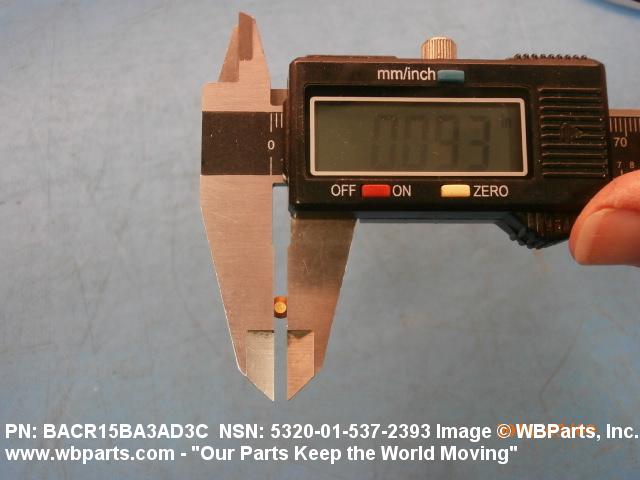

SHANK DIAMETER 0.0938 INCHES MINIMUM AND 0.0963 INCHES MAXIMUM
IDENTIFICATION CODE COLOR NATURAL
III END ITEM IDENTIFICATION C-135CCAB

Restrictions/Controls & Freight Information | NSN 5320-01-537-2393

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 106510 RIVETS I/S PLAIN/GALVANIZED ETC
Less than car load rating
Less than truck load rating U 50.0
Water commodity Code 713 unknown
Originating Activity Code KH Defense Industrial Supply Center
Philadelphia, PA 19111
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5320-01-537-2393

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
U
EA : Each
