NSN 5320-01-504-5558 NAS1241AD410, NAS1241AD4-10, 01-504-5558
Product Details | SOLID RIVET
5320-01-504-5558 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: NAS1241AD410, NAS1241AD4-10, 5320-01-504-5558, 01-504-5558, 5320015045558, 015045558
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 JAN 2003 | 01-504-5558 | 00861 ( RIVET, SOLID ) |

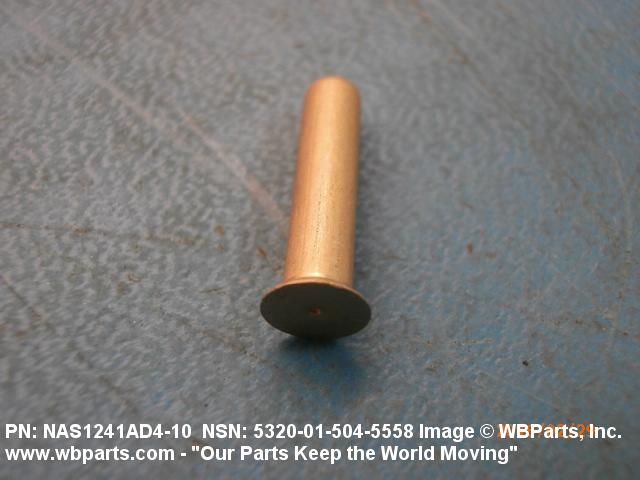

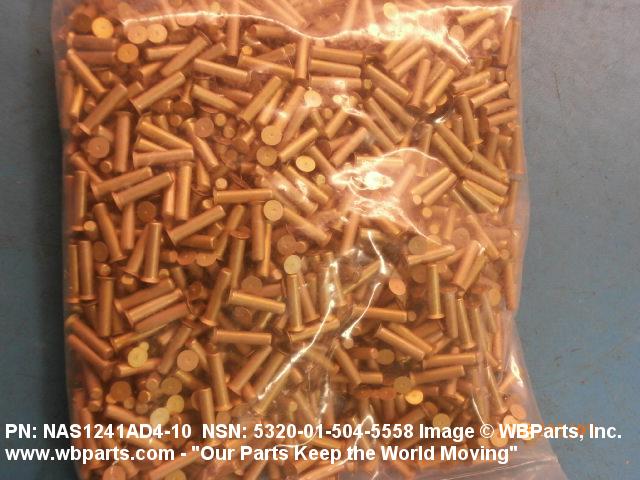

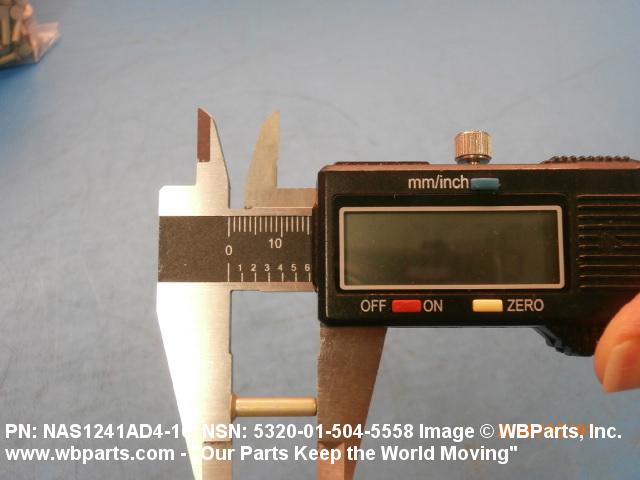

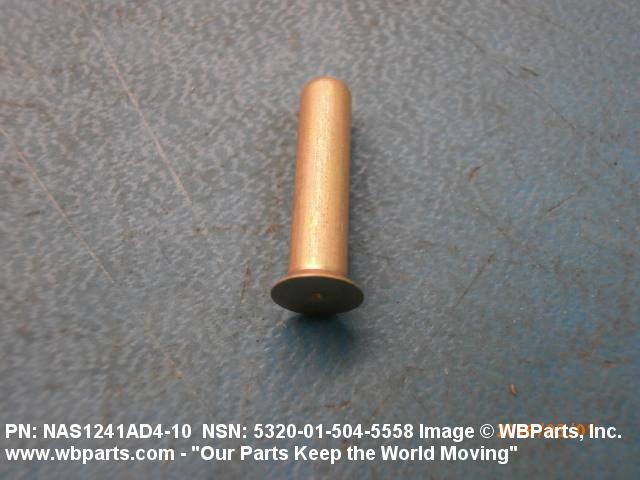

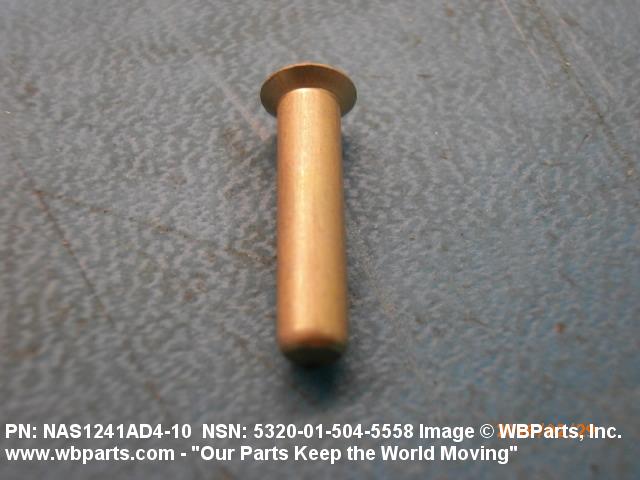

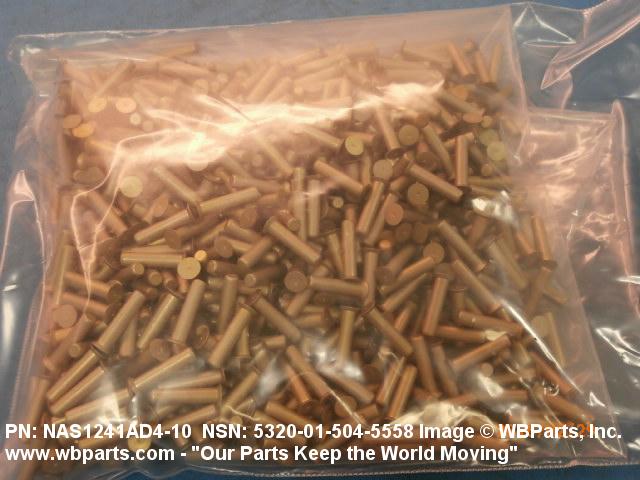

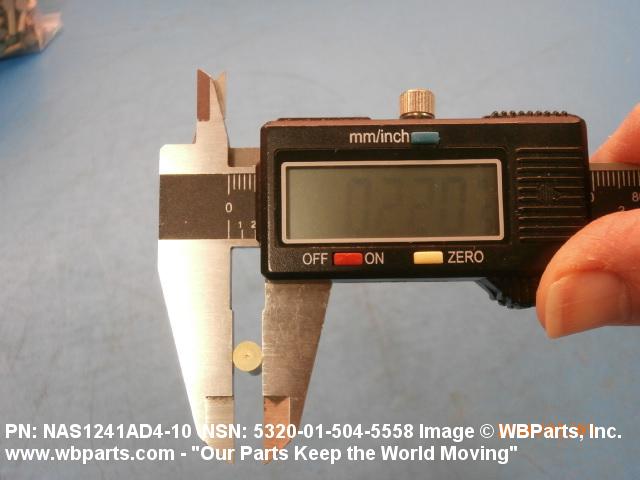

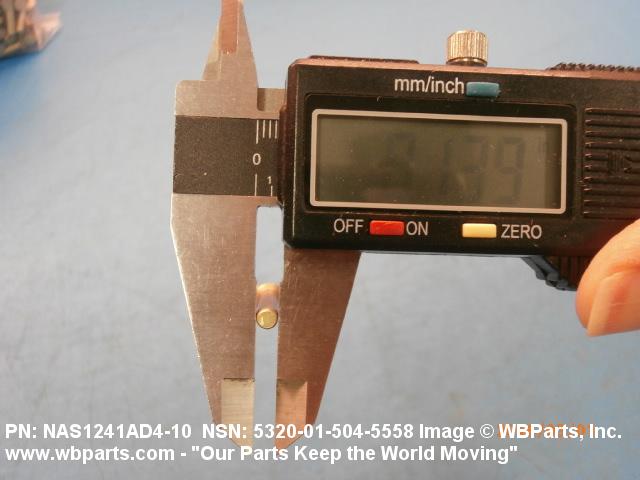

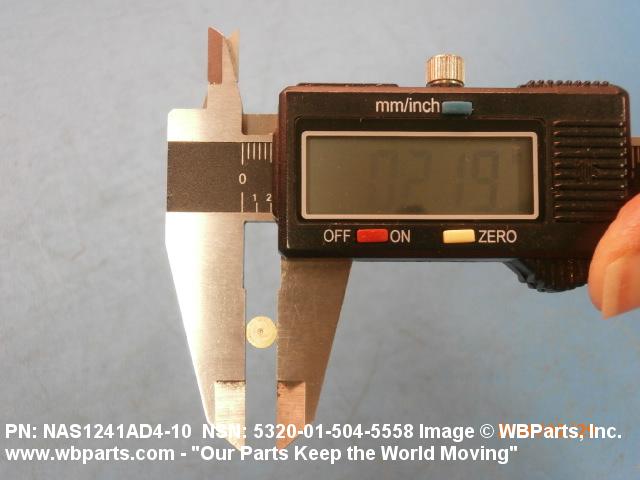

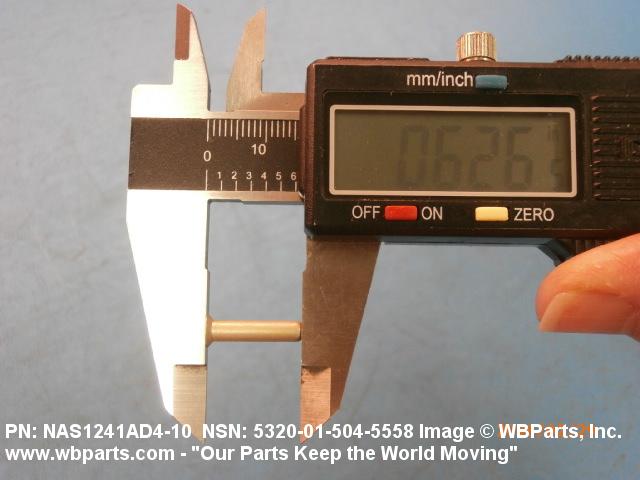

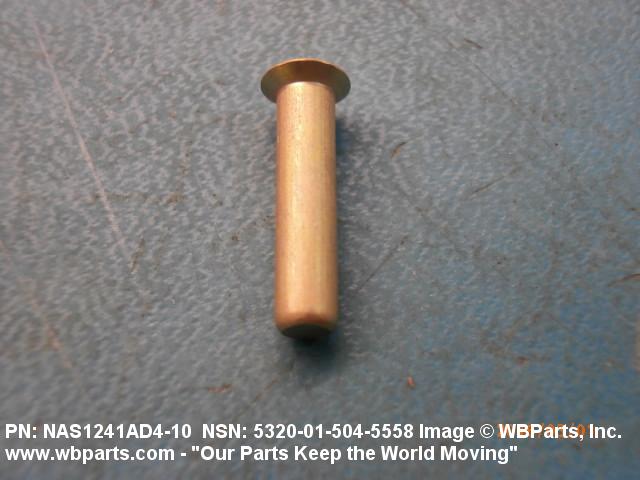

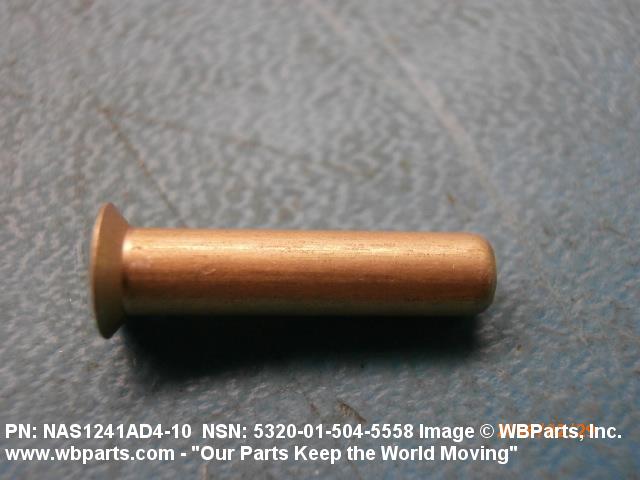

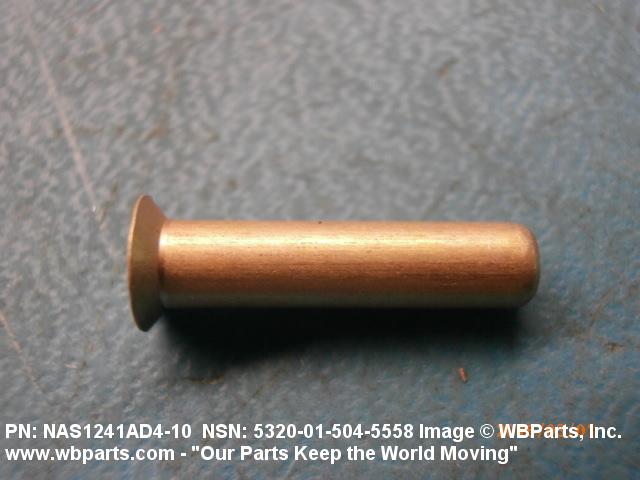

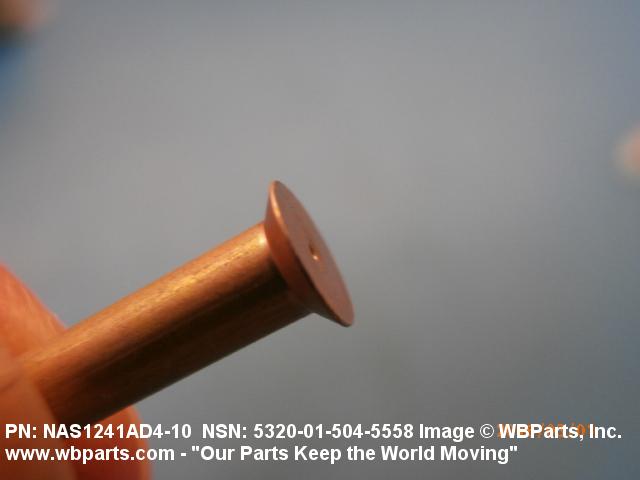

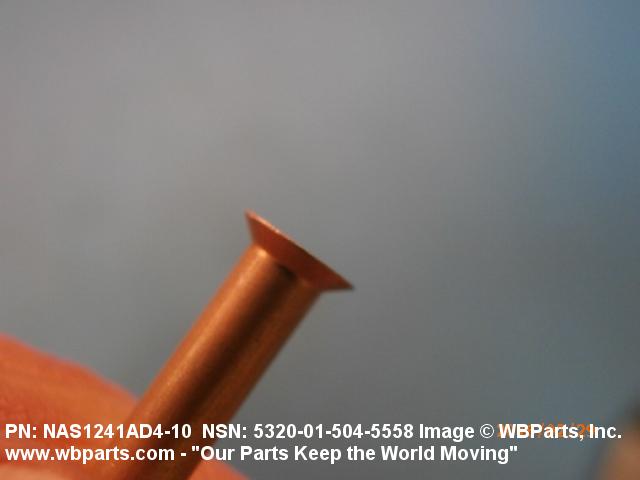

Drawings & Photos | NSN 5320-01-504-5558
Demand History | NSN 5320-01-504-5558
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1241AD410 | 2016-02-60 | 2 | United States |
| NAS1241AD4-10 | 2014-06-157 | 50 | United States |
| NAS1241AD410 | 2009-12-365 | 5 | US |
Cross Reference | NSN 5320-01-504-5558
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1241AD4-10 | 14728 | PRECISION FORM RIVET INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-504-5558
Related Products | NSN 5320-01-504-5558
Technical Data | NSN 5320-01-504-5558
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 OVERALL |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.216 INCHES NOMINAL |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | D5 COUNTERSUNK |
| FASTENER LENGTH | 0.625 INCHES NOMINAL |
| SHANK DIAMETER | 0.125 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5320-01-504-5558
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
