NSN 5320-01-502-9847 HL111V66, HL111V-6-6 , 10203888
Product Details | PIN-RIVET

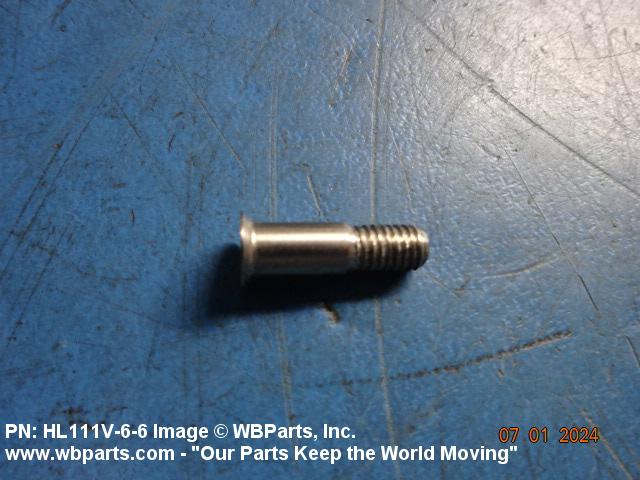

5320-01-502-9847 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: HL111V66, HL111V-6-6 , 10203888 , 5320-01-502-9847, 01-502-9847, 5320015029847, 015029847
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 NOV 2002 | 01-502-9847 | 67165 ( PIN-RIVET ) |
Drawings & Photos | NSN 5320-01-502-9847
Demand History | NSN 5320-01-502-9847
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HL111V66 | 2024-06-156 | 400 | United States |
| HL111V66 | 2024-05-122 | 400 | United States |
| HL111V-6-6 | 2020-10-281 | 10452 | DIBBS |
| HL111V-6-6 | 2019-12-345 | 3252 | DIBBS |
| HL111V-6-6 | 2019-07-212 | 4302 | DIBBS |
| 5320-01-502-9847 | 2017-09-253 | 2977 | DIBBS |
| 5320-01-502-9847 | 2017-05-151 | 198 | DIBBS |
| 5320-01-502-9847 | 2017-05-135 | 70 | DIBBS |
| 5320-01-502-9847 | 2017-04-103 | 213 | DIBBS |
| 5320-01-502-9847 | 2017-04-95 | 213 | DIBBS |
| 5320-01-502-9847 | 2016-06-168 | 12 | US |
| HL111V66 | 2009-11-322 | 100 | Italy |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-502-9847
Technical Data | NSN 5320-01-502-9847
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R56400 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS-4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS-4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 2000 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 95000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | A9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.2966 INCHES MINIMUM AND 0.3016 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |
| FASTENER LENGTH | 0.690 INCHES MINIMUM AND 0.710 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.0791 INCHES MINIMUM AND 0.0806 INCHES MAXIMUM |
| SHANK DIAMETER | 0.2021 INCHES MINIMUM AND 0.2026 INCHES MAXIMUM |
| GRIP LENGTH | 0.375 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP |
Restrictions/Controls & Freight Information | NSN 5320-01-502-9847
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
