NSN 5320-01-501-7019 HL10VAZ64, HL10VAZ-6-4, 01-501-7019

Product Details | PIN-RIVET

5320-01-501-7019 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.

Part Alternates: HL10VAZ64, HL10VAZ-6-4, 5320-01-501-7019, 01-501-7019, 5320015017019, 015017019

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	10 OCT 2002	01-501-7019	67165 ( PIN-RIVET )

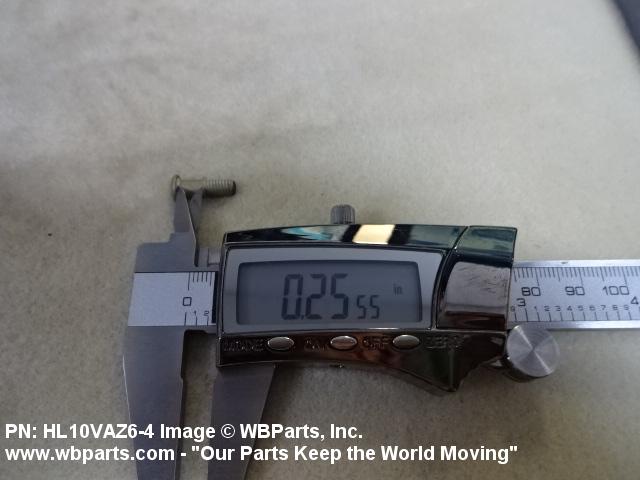

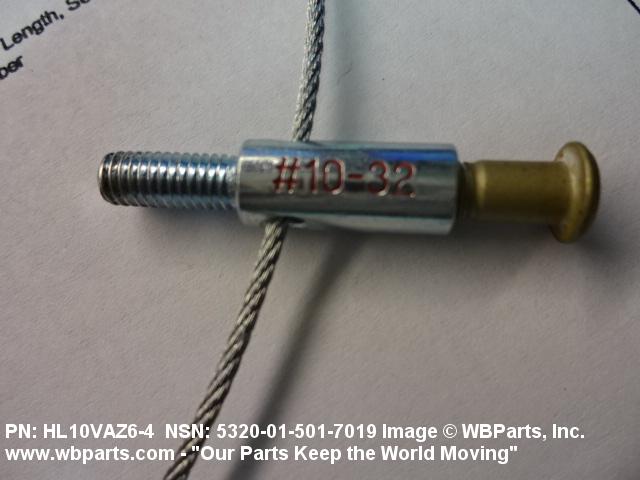

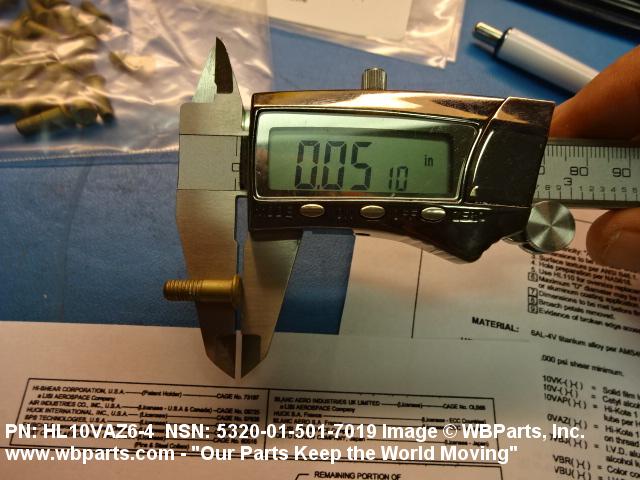

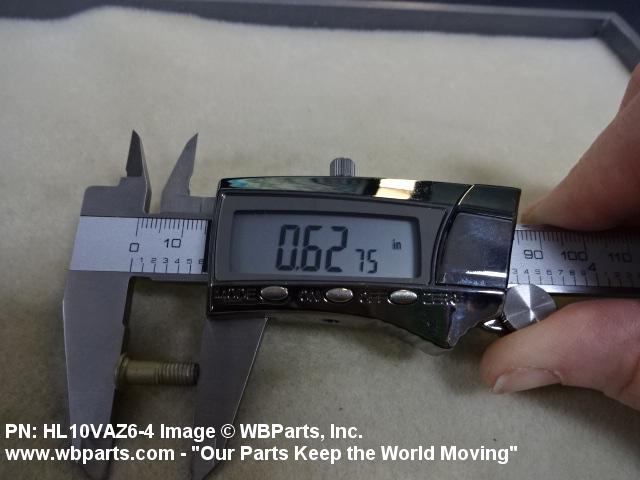

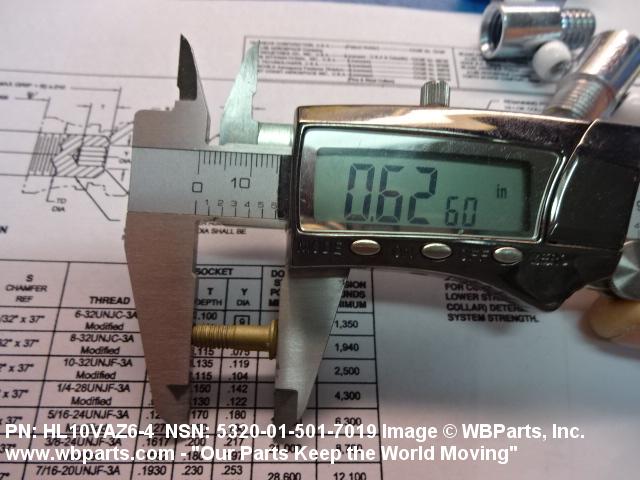

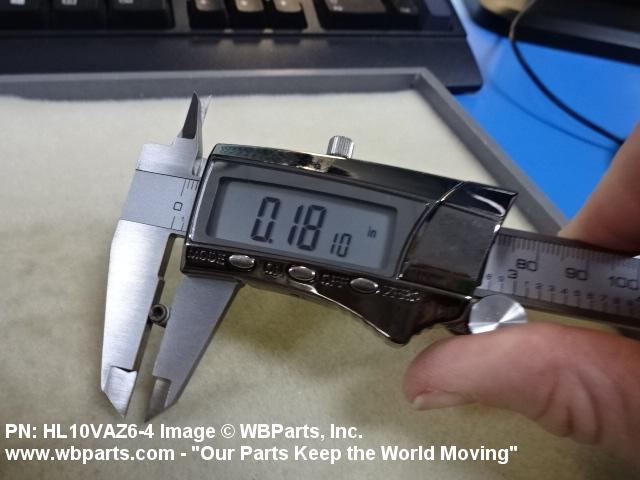

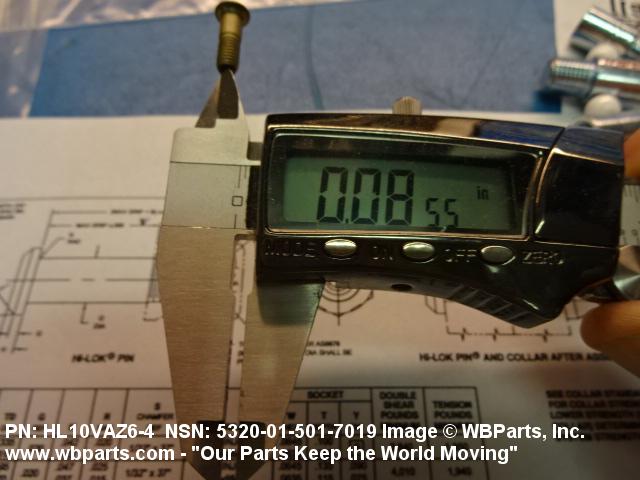

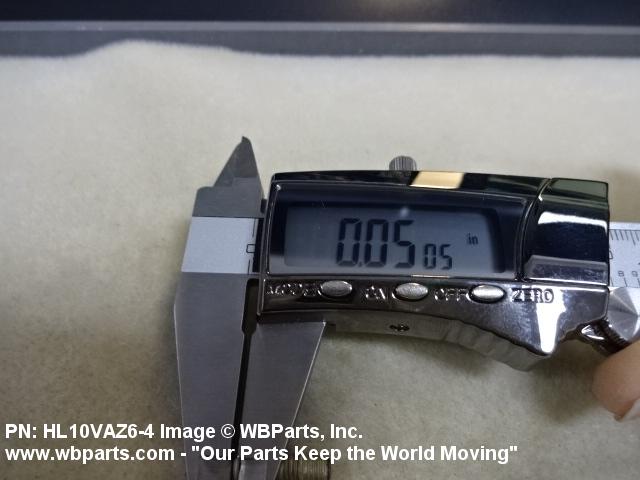

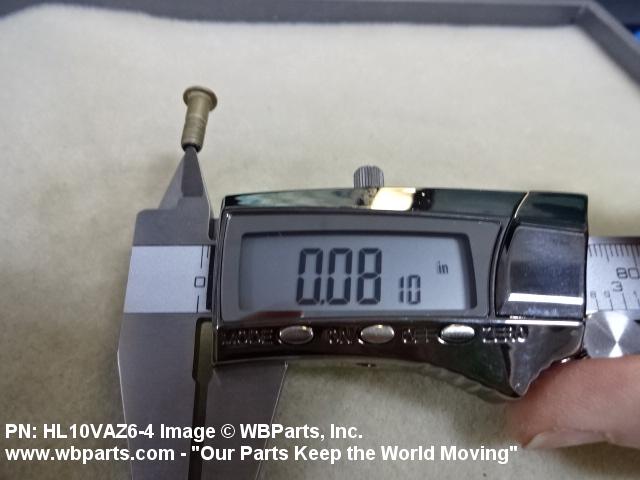

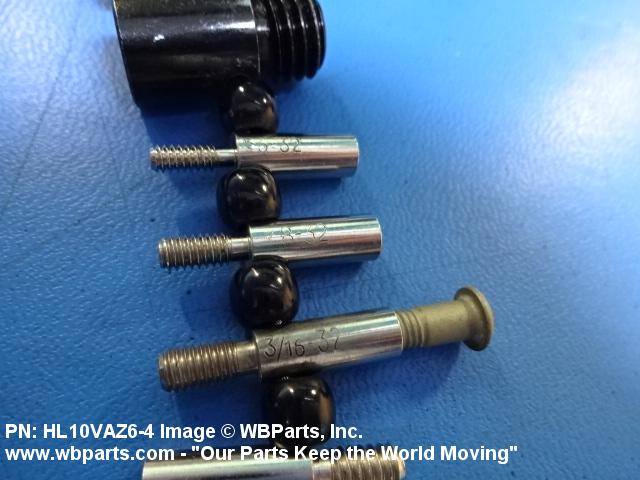

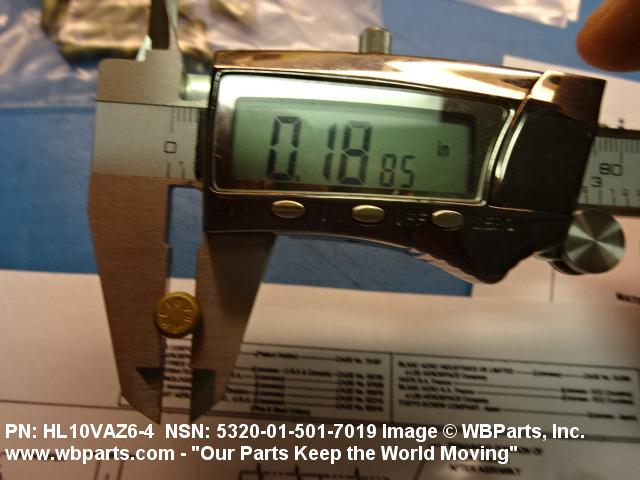

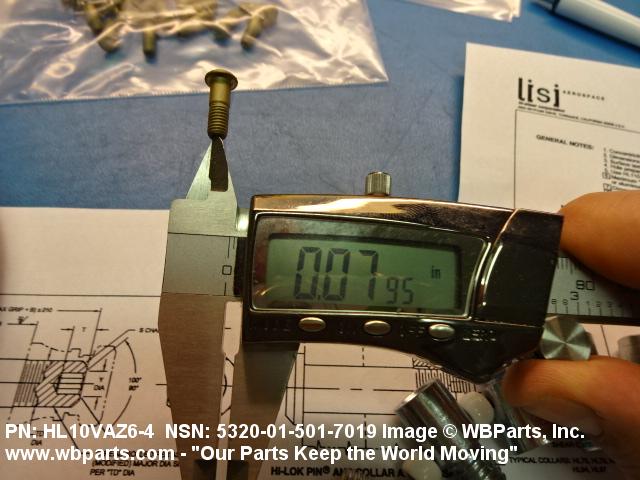

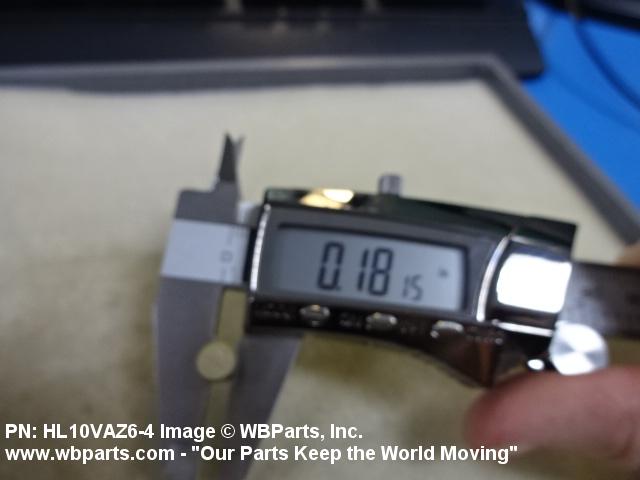

Drawings & Photos | NSN 5320-01-501-7019

Part Number	Request Date	QTY	Origin
HL10VAZ64	2023-03-82	22	IN
HL10VAZ64	2022-07-209	8	us
HL10VAZ-6-4	2019-12-353	2000	DIBBS
HL10VAZ-6-4	2019-10-303	3641	DIBBS
5320-01-501-7019	2017-01-08	3409	DIBBS
HL10VAZ64	2014-06-168	23	US
5320-01-501-7019	2013-07-192	4550	DIBBS
5320-01-501-7019	2013-01-08	338	DIBBS
5320-01-501-7019	2012-11-331	1123	DIBBS
5320-01-501-7019	2012-07-209	887	DIBBS
5320-01-501-7019	2012-06-158	604	DIBBS
5320-01-501-7019	2012-01-31	1018	DIBBS
5320-01-501-7019	2011-08-227	10	DIBBS
5320-01-501-7019	2011-08-227	17	DIBBS
5320-01-501-7019	2011-08-224	2100	DIBBS
5320-01-501-7019	2011-04-94	2100	DIBBS
5320-01-501-7019	2011-02-34	729	DIBBS
5320-01-501-7019	2011-01-06	443	DIBBS
5320-01-501-7019	2010-12-341	355	DIBBS
5320-01-501-7019	2010-11-314	576	DIBBS
5320-01-501-7019	2010-11-307	363	DIBBS
5320-01-501-7019	2010-10-300	250	DIBBS
5320-01-501-7019	2010-10-280	217	DIBBS
5320-01-501-7019	2010-09-270	75	DIBBS
5320-01-501-7019	2009-07-191	600	DIBBS
5320-01-501-7019	2009-04-106	182	DIBBS
5320-01-501-7019	2009-02-40	329	DIBBS
5320-01-501-7019	2009-02-40	102	DIBBS
5320-01-501-7019	2008-11-329	325	DIBBS
5320-01-501-7019	2008-11-316	329	DIBBS
5320-01-501-7019	2008-09-246	149	DIBBS

Cross Reference | NSN 5320-01-501-7019

Part Number	Cage Code	Manufacturer
HL10VAZ-6-4	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HL10VAZ-6-4	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HL10VAZ-6-4	60516	WEST COAST AEROSPACE INC
HL10VAZ-6-4	73197	HI-SHEAR CORPORATION
HL10VAZ-6-4	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
HL10VAZ-6-4	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL10VAZ-6-4	K5673	SPS TECHNOLOGIES LTD TJ BROOKS DIVISION
HL10VAZ-6-4	L4528	LISI AEROSPACE CANADA CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-501-7019

Compare

Related Products | NSN 5320-01-501-7019

5320-01-501-7023, 5320-01-501-7167, 5320-01-501-7653, 5320-01-501-7660, 5320-01-501-8081

Technical Data | NSN 5320-01-501-7019

Characteristic	Specifications
MATERIAL	TITANIUM ALLOY UNS R56400 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ALUMINUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	HI-SHEAR SPEC 294 MFR REF SINGLE TREATMENT RESPONSE OR HI-SHEAR SPEC 305 MFR REF SINGLE TREATMENT RESPONSE OVERALL
HEAD STYLE	A34 FLAT CHAMFER
HEAD HEIGHT	0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM
HEAD MAJOR DIAMETER	0.295 INCHES MINIMUM AND 0.315 INCHES MAXIMUM
SHANK STYLE	B31 PIN-RIVET, STRAIGHT, THREADED
FASTENER LENGTH	0.765 INCHES MINIMUM AND 0.785 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.104 INCHES MINIMUM AND 0.119 INCHES MAXIMUM
SHANK DIAMETER	0.1885 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM
GRIP LENGTH	0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD CLASS	3A
THREAD QUANTITY PER INCH	32
THREAD DIRECTION	RIGHT-HAND
IDENTIFICATION CODE COLOR	BLACK
END ITEM IDENTIFICATION	RQ-4A AIRCRAFT
PART NAME ASSIGNED BY CONTROLLING AGENCY	PROTROUDING SHEAR HEAD

Restrictions/Controls & Freight Information | NSN 5320-01-501-7019

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	TK	HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-501-7019

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	E	The current standard price is an estimated price. Estimated Price challenges are allowed, but follow procedures in para 60.b. (3) of section L of this manual. This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
