NSN 5320-01-470-9535 AF514133, AF5141-3-3, CCR264CS303

Product Details | BLIND RIVET

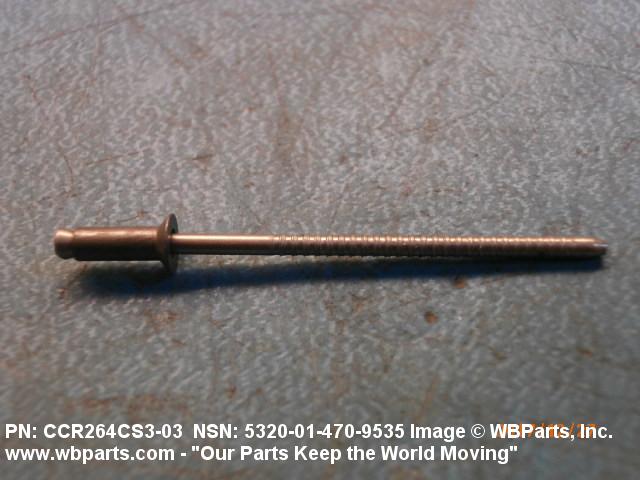

5320-01-470-9535 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: AF514133, AF5141-3-3, CCR264CS303, CCR264CS-3-03, CCR264CS33, CCR264CS-3-3, CCR264CS3-3, ST120903, ST1209-03 , FON263943C3, FON2-6394-3C3 , RV541A33, RV541A-3-3, 10118999, 1395AS365, 142D61442, 142D6144-2, 3D0142C33, 3D0142C3-3 , 3M94933, 3M949-3-3, 583R118H02, 7010293003, 7010293-003, 9025M79P03, 9882812, 988281-2, 5320-01-470-9535, 01-470-9535, 5320014709535, 014709535

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	18 JAN 2000	01-470-9535	00864 ( RIVET, BLIND )

Drawings & Photos | NSN 5320-01-470-9535

Part Number	Request Date	QTY	Origin
CCR264CS303	2024-11-317	6100	us
9025M79P03	2024-11-311	533	IN
3M94933	2024-10-289	53	US
5320-01-470-9535	2024-10-281	10000	US
CCR264CS303	2023-08-227	80	United States
5320-01-470-9535	2023-08-216	10	ID
CCR264CS303	2023-06-156	80	Canada
CCR264CS303	2023-04-114	3000	India
CCR264CS303	2022-04-108	120	United States
3M94933	2022-01-05	82	United States
ST120903	2021-10-301	600	UM
CCR264CS303	2021-10-291	250	IN
CCR264CS303	2021-09-265	18009	India
5320-01-470-9535	2020-08-243	10000	IN
9025M79P03	2020-08-239	200	US
5320-01-470-9535	2020-08-230	200	HU
9025M79P03	2020-07-204	100	us
CCR264CS33	2020-06-182	400	US
5320-01-470-9535	2020-02-56	115	United States
CCR264CS303	2020-02-37	278	us
3M94933	2019-10-287	200	Brazil
3M94933	2019-09-254	890	Australia
5320-01-470-9535	2019-08-243	100	United States
3M94933	2019-05-128	200	Australia
5320-01-470-9535	2019-02-39	1000	US
9025M79P03	2019-01-10	35000	Turkey
9025M79P03	2019-01-08	5550	DIBBS
9025M79P03	2019-01-08	45475	DIBBS
9025M79P03	2019-01-08	62250	DIBBS
AF5141-3-3	2019-01-08	5550	DIBBS
AF5141-3-3	2019-01-08	45475	DIBBS
AF5141-3-3	2019-01-08	62250	DIBBS
CCR264CS3-3	2019-01-08	5550	DIBBS
CCR264CS3-3	2019-01-08	45475	DIBBS
CCR264CS3-3	2019-01-08	62250	DIBBS
3M94933	2018-12-339	60	United States
5320-01-470-9535	2018-09-261	5556	DIBBS
5320-01-470-9535	2018-09-253	62244	DIBBS
5320-01-470-9535	2018-08-225	5556	DIBBS
5320-01-470-9535	2018-08-225	5556	DIBBS
5320-01-470-9535	2018-08-225	5556	DIBBS
5320-01-470-9535	2018-08-219	44563	DIBBS
5320-01-470-9535	2018-07-197	14000	DIBBS
5320-01-470-9535	2018-07-194	115625	DIBBS
5320-01-470-9535	2018-06-179	14000	DIBBS
5320-01-470-9535	2018-06-171	24079	DIBBS
5320-01-470-9535	2018-06-168	69498	DIBBS
5320-01-470-9535	2018-06-164	22040	DIBBS
5320-01-470-9535	2017-12-348	100	United States
5320-01-470-9535	2017-12-345	100	United States
5320-01-470-9535	2017-11-332	10	DE
CCR264CS303	2017-05-143	112	US
CCR264CS303	2017-05-122	1	United States
5320-01-470-9535	2016-06-181	28057	DIBBS
5320-01-470-9535	2016-03-90	44670	DIBBS
1395AS365	2016-02-50	26	United States
CCR264CS3-3	2015-07-201	1500
5320-01-470-9535	2015-05-126	34000	Turkey
CCR264CS303	2015-04-120	32	US
CCR264CS33	2015-01-21	1500	AE
CCR264CS33	2015-01-21	1	AE
CCR264CS303	2013-11-308	60	United States
9025M79P03	2013-07-197	1400	China
9025M79P03	2013-07-197	1400	Taiwan
3M94933	2013-01-04	1	United States
CCR264CS-3-03	2012-11-310	2
5320-01-470-9535	2012-10-299	3700	us
9025M79P03	2012-09-261	1000	China
CCR264CS303	2012-04-101	600	United States
CCR264CS303	2011-11-315	500	US
CCR264CS33	2011-04-102	2500	United States
CCR264CS303	2011-03-77	100	US
5320-01-470-9535	2010-09-270	1900	United States
5320-01-470-9535	2010-02-56	100095	DIBBS
5320-01-470-9535	2009-11-307	28	United States
CCR264CS303	2009-09-246	2000	India
CCR264CS303	2008-08-217	860	United States
CCR264CS303	2007-05-137	1200	US

Cross Reference | NSN 5320-01-470-9535

Part Number	Cage Code	Manufacturer
1395AS365	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
142D6144-2	05606	GENERAL DYNAMICS-OTS, INC. DBA GD-OTS (WILLISTON)
3D0142C3-3	88277	BOEING COMPANY, THE DBA BOEING
3M949-3-3	76301	BOEING COMPANY, THE DBA BOEING
583R118H02	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
7010293-003	12436	BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC.
9025M79P03	07482	GENERAL ELECTRIC COMPANY DBA GE
988281-2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AF5141-3-3	53551	ALLFAST FASTENING SYSTEMS, LLC
CCR264CS-3-3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
CCR264CS-3-3	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
CCR264CS-3-3	R1120	SATAIR A/S
CCR264CS3-3	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
FON2-6394-3C3	H1822	FOKKER AEROSTRUCTURES B.V.
RV541A-3-3	53551	ALLFAST FASTENING SYSTEMS, LLC
RV541A-3-3	98996	OLYMPIC FASTENING SYSTEMS INC
ST1209-03	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-470-9535

Compare

Related Products | NSN 5320-01-470-9535

5320-01-470-9766, 5320-01-470-9767, 5320-01-470-9768, 5320-01-470-9785, 5320-01-470-9786

Technical Data | NSN 5320-01-470-9535

Characteristic	Specifications
MATERIAL	IRON ALLOY 660 SLEEVE STEEL COMP 305 STEM
MATERIAL DOCUMENT AND CLASSIFICATION	AMS5731 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HEAD STYLE	C9 FLUSH COUNTERSUNK
HEAD MAJOR DIAMETER	0.183 INCHES MAXIMUM
COUNTERSINK ANGLE	100.0 DEGREES NOMINAL
SHANK STYLE	D29 SELF-PLUGGING HIGH CLINCH SHANK

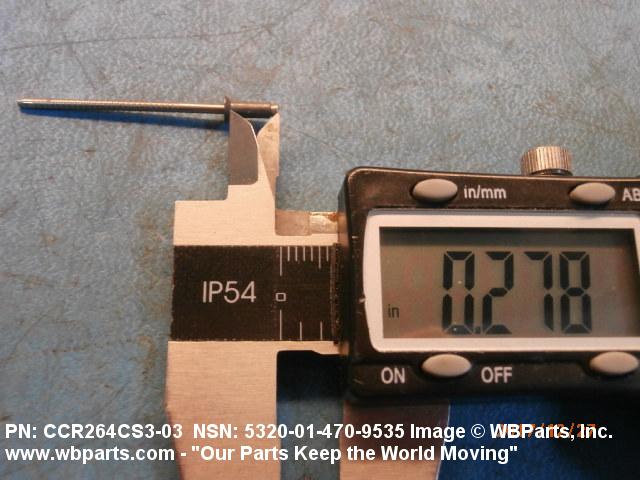

FASTENER LENGTH	0.265 INCHES MAXIMUM

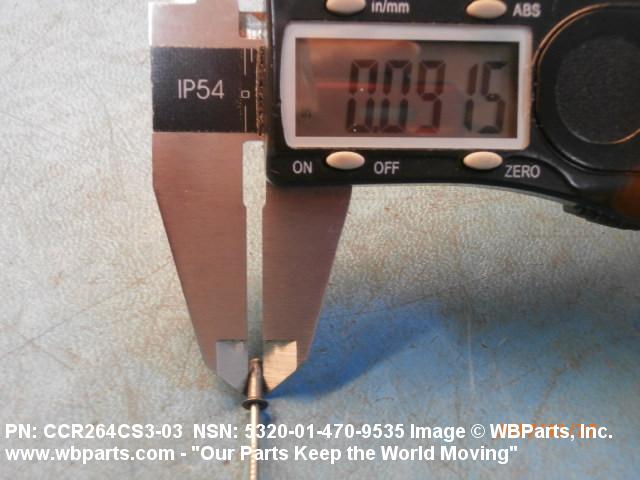

SHANK DIAMETER	0.092 INCHES MINIMUM AND 0.097 INCHES MAXIMUM
GRIP LENGTH	0.126 INCHES MINIMUM AND 0.187 INCHES MAXIMUM
EXPANSION DEVICE	SERRATED STEM-TYPE W
III END ITEM IDENTIFICATION	W/S:ENGINE, AIRCRAFT, F100 PW220 (F-15C/D/E); SUPPORT EQUIPMENT, B-1 AIRCRAFT; MISSILE, TOMAHAWK; GUN SYSTEM, 25MM; AIRCRAFT, (AC-130H, MC-130H, EC-130E, HC-130); ENGINE, F118-GE-100 (B-2 BOMBER); HELICOPTER, MH-53E; ENGINE, AIRCRAFT, F-108 (CFM-56, KC-135A); ENGINE, AIRCRAFT, F101-GE-102 (B-1); ENGINE, AIRCRAFT, F110-GE-100/129 (F-16 C/D)

Restrictions/Controls & Freight Information | NSN 5320-01-470-9535

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	106510	RIVETS I/S PLAIN/GALVANIZED ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-470-9535

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
