NSN 5320-01-470-1417 HLT51YB57, HLT51YB-5-7, ST3M758
Product Details | PIN-RIVET
5320-01-470-1417 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: HLT51YB57, HLT51YB-5-7, ST3M758, ST3M758C087, ST3M758C08-7, 10118998 , 5320-01-470-1417, 01-470-1417, 5320014701417, 014701417
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 DEC 1999 | 01-470-1417 | 67165 ( PIN-RIVET ) |

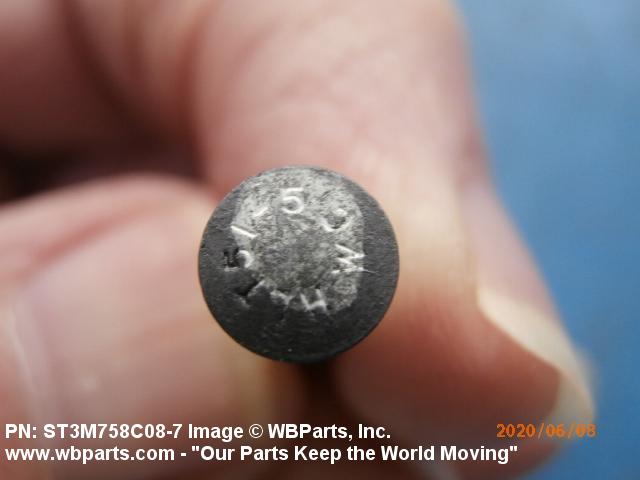

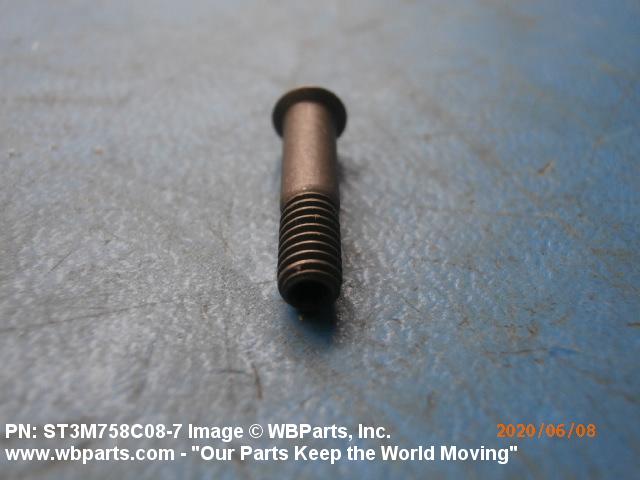

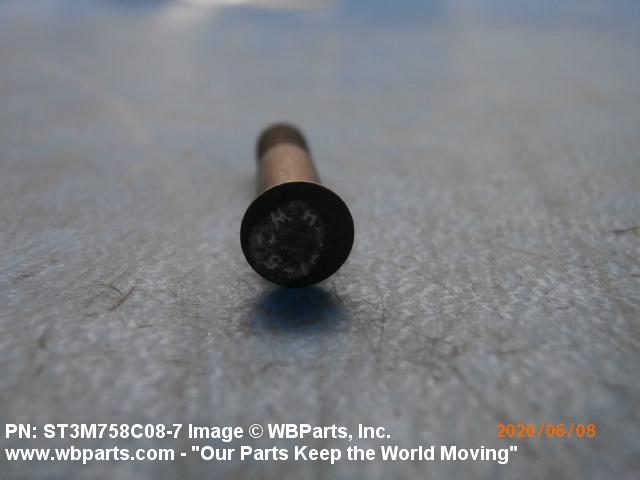

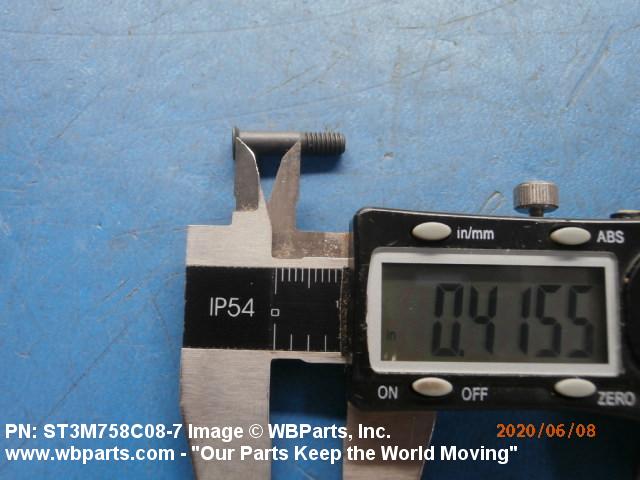

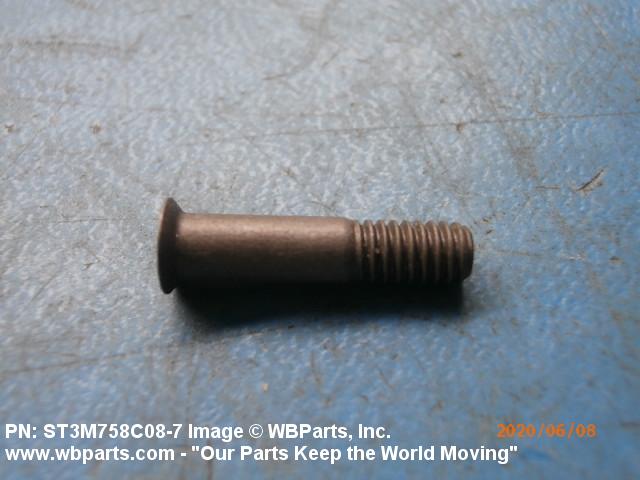

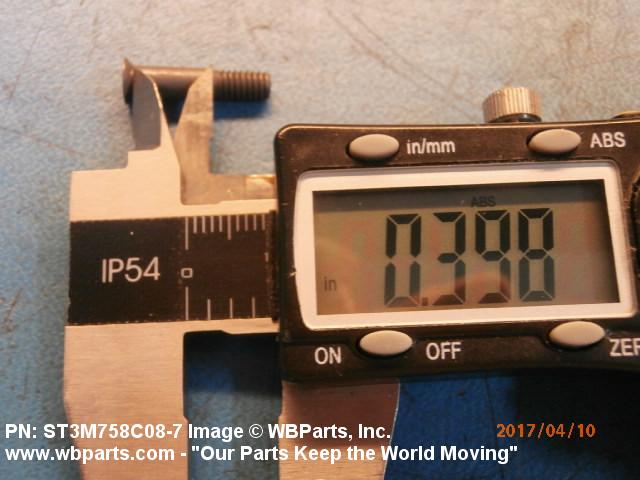

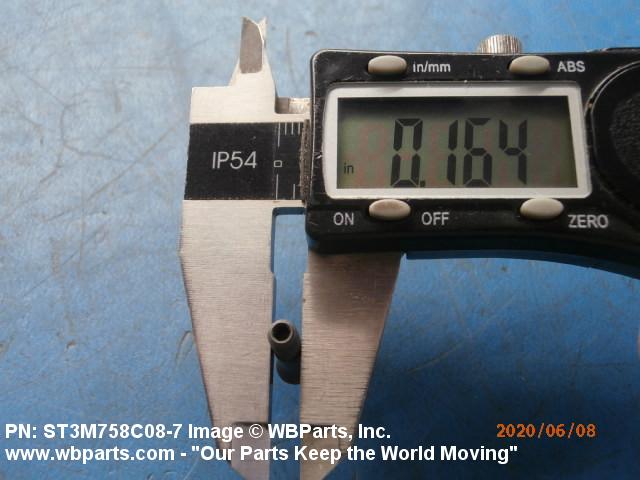

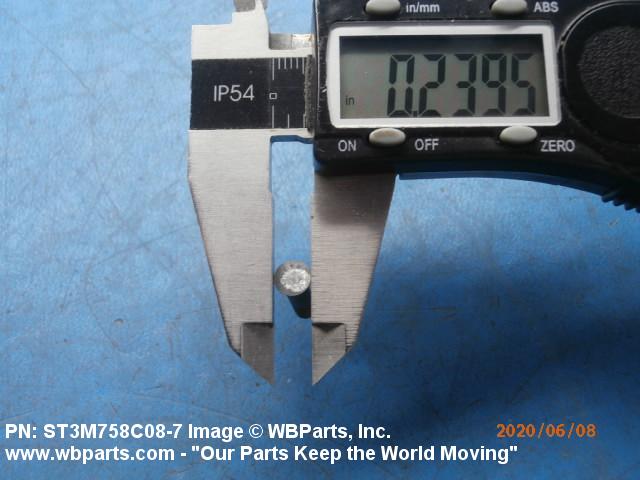

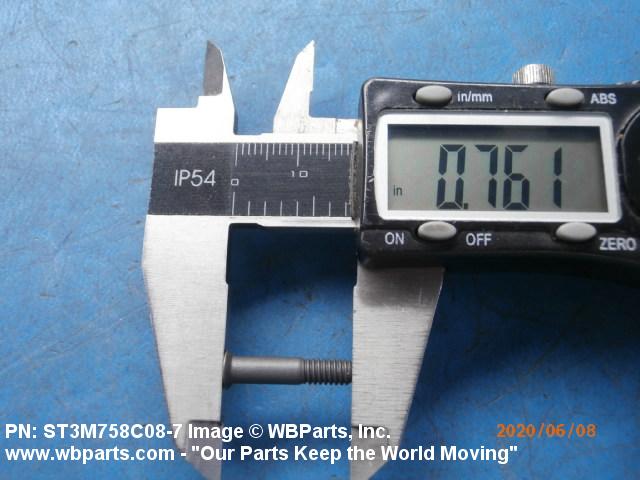

Drawings & Photos | NSN 5320-01-470-1417
Demand History | NSN 5320-01-470-1417
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ST3M758C087 | 2020-05-150 | 10 | Australia |
| ST3M758C087 | 2020-05-147 | 5 | Australia |
| 5320-01-470-1417 | 2020-05-145 | 5 | Australia |
| ST3M758C087 | 2020-05-141 | 5 | Australia |
| ST3M758C08-7 | 2019-06-169 | 2000 | DIBBS |
| 5320-01-470-1417 | 2018-11-313 | 2073 | DIBBS |
| 5320-01-470-1417 | 2018-11-305 | 2073 | DIBBS |
| ST3M758C087 | 2017-04-95 | 20 | Australia |
| 5320-01-470-1417 | 2016-01-18 | 693 | DIBBS |
| 5320-01-470-1417 | 2015-10-298 | 638 | DIBBS |
| 5320-01-470-1417 | 2015-09-250 | 2095 | DIBBS |
| 5320-01-470-1417 | 2015-07-186 | 338 | DIBBS |
| 5320-01-470-1417 | 2015-06-172 | 120 | DIBBS |
| 5320-01-470-1417 | 2015-05-137 | 1517 | DIBBS |
| 5320-01-470-1417 | 2015-05-127 | 146 | DIBBS |
| 5320-01-470-1417 | 2013-03-79 | 141 | DIBBS |
| 5320-01-470-1417 | 2012-08-235 | 41 | DIBBS |
Cross Reference | NSN 5320-01-470-1417
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HLT51YB-5-7 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT51YB-5-7 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HLT51YB-5-7 | 73197 | HI-SHEAR CORPORATION |
| HLT51YB-5-7 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT51YB-5-7 | 97928 | HUCK INTL INC |
| HLT51YB-5-7 | K5673 | SPS TECHNOLOGIES LTD TJ BROOKS DIVISION |
| ST3M758 | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST3M758C08-7 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| ST3M758C08-7 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| ST3M758C08-7 | 0PTK6 | SPS TECHNOLOGIES INC |
| ST3M758C08-7 | 0ZC92 | HEARTLAND PRECISION FASTENERS, INC. |
| ST3M758C08-7 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| ST3M758C08-7 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| ST3M758C08-7 | 60516 | WEST COAST AEROSPACE INC |
| ST3M758C08-7 | 73197 | HI-SHEAR CORPORATION |
| ST3M758C08-7 | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST3M758C08-7 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| ST3M758C08-7 | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-470-1417
Related Products | NSN 5320-01-470-1417
Technical Data | NSN 5320-01-470-1417
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP XM-13 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5629 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SHEAR STRENGTH | 125000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | A12 OVAL COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.2612 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |
| FASTENER LENGTH | 0.900 INCHES MINIMUM AND 0.915 INCHES MAXIMUM |

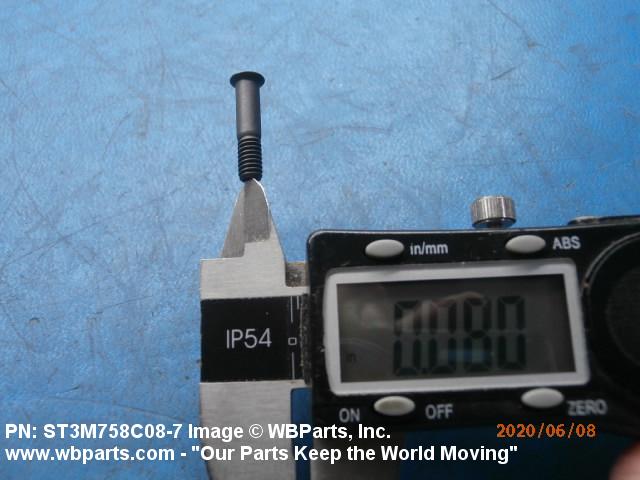

| WIDTH BETWEEN FLATS | 0.0791 INCHES MINIMUM AND 0.0801 INCHES MAXIMUM |

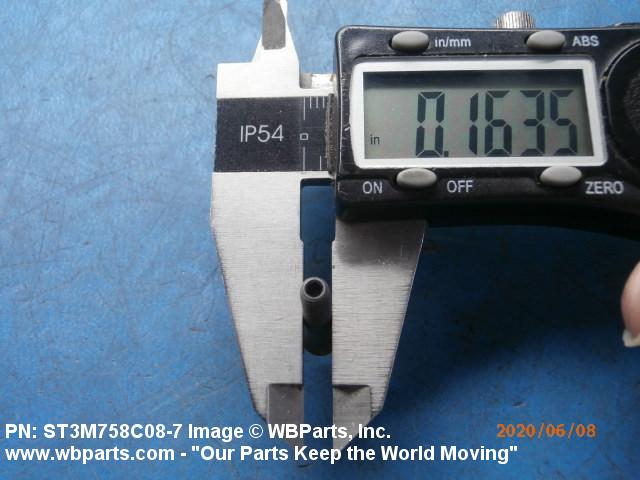

| SHANK DIAMETER | 0.1630 INCHES MINIMUM AND 0.1635 INCHES MAXIMUM |
| GRIP LENGTH | 0.588 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | SOLID FILM AND CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP |
Restrictions/Controls & Freight Information | NSN 5320-01-470-1417
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096320 | RIVETS I/S NICKEL PLATED BUFFED |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-470-1417
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
F EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
F EA : Each |
