NSN 5320-01-431-5605 ST3M350V515, ST3M350V5-15, TLV130515E
Product Details | PIN-RIVET
5320-01-431-5605 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: ST3M350V515, ST3M350V5-15, TLV130515E, TLV130-5-15E, 5320-01-431-5605, 01-431-5605, 5320014315605, 014315605
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 MAY 1996 | 01-431-5605 | 67165 ( PIN-RIVET ) |

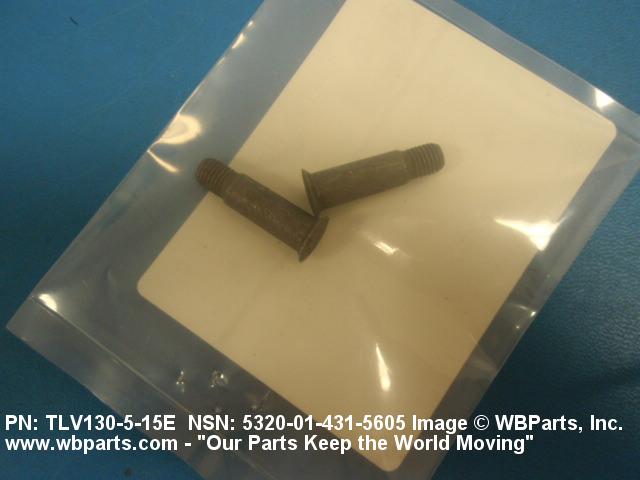

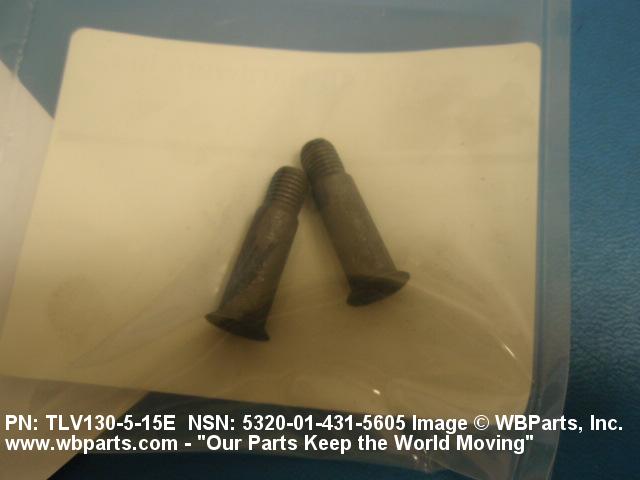

Drawings & Photos | NSN 5320-01-431-5605
Demand History | NSN 5320-01-431-5605
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-431-5605 | 2018-10-304 | 13 | DIBBS |
| 5320-01-431-5605 | 2017-12-346 | 16 | DIBBS |
| 5320-01-431-5605 | 2012-07-211 | 10 | DIBBS |
| 5320-01-431-5605 | 2010-11-309 | 3 | DIBBS |
| 5320-01-431-5605 | 2010-05-147 | 3 | DIBBS |
| 5320-01-431-5605 | 2009-08-239 | 3 | DIBBS |
| 5320-01-431-5605 | 2009-08-239 | 4 | DIBBS |
| 5320-01-431-5605 | 2009-08-236 | 2 | United States |
Cross Reference | NSN 5320-01-431-5605
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST3M350V5-15 | 76301 | BOEING COMPANY, THE DBA BOEING |
| TLV130-5-15E | 17419 | DEUTSCH CO THE |
| TLV130-5-15E | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| TLV130-5-15E | 59563 | REID PRODUCTS INC. DBA REID PRODUCTS |
| TLV130-5-15E | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| TLV130-5-15E | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-431-5605
Related Products | NSN 5320-01-431-5605
Technical Data | NSN 5320-01-431-5605
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 23M110, CAGE 76301 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| HEAD STYLE | A9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.486 INCHES MINIMUM AND 0.537 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK STYLE | B33 PIN-RIVET, TAPERED, THREADED |
| FASTENER LENGTH | 1.333 INCHES MINIMUM AND 1.358 INCHES MAXIMUM |
| SHANK DIAMETER | 0.3690 INCHES NOMINAL |
| TIP DIAMETER | 0.3528 INCHES NOMINAL |
| GRIP LENGTH | 0.927 INCHES MINIMUM AND 0.942 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | CETYL ALCOHOL AND DRY FILM |
| SPECIAL FEATURES | OVERSIZE, FOR REPAIR WORK ONLY. |
| SPECIFICATION/STANDARD DATA | 76301-ST3M350 MANUFACTURERS STANDARD |
Restrictions/Controls & Freight Information | NSN 5320-01-431-5605
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-431-5605
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
