NSN 5320-01-392-3536 HLT8231625, HLT823-16-25, 01-392-3536
Product Details | PIN-RIVET
5320-01-392-3536 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: HLT8231625, HLT823-16-25, 5320-01-392-3536, 01-392-3536, 5320013923536, 013923536
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 JUN 1994 | 01-392-3536 | 67165 ( PIN-RIVET ) |
Drawings & Photos | NSN 5320-01-392-3536
Cross Reference | NSN 5320-01-392-3536
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HLT823-16-25 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HLT823-16-25 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT823-16-25 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HLT823-16-25 | 60516 | WEST COAST AEROSPACE INC |
| HLT823-16-25 | 73197 | HI-SHEAR CORPORATION |
| HLT823-16-25 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT823-16-25 | 97928 | HUCK INTL INC |
| HLT823-16-25 | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-392-3536
Related Products | NSN 5320-01-392-3536
Technical Data | NSN 5320-01-392-3536
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY 718 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5662 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | HI-SHEAR SPEC 258 MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 210000 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 49100 DOUBLE POUNDS PER SQUARE INCH |

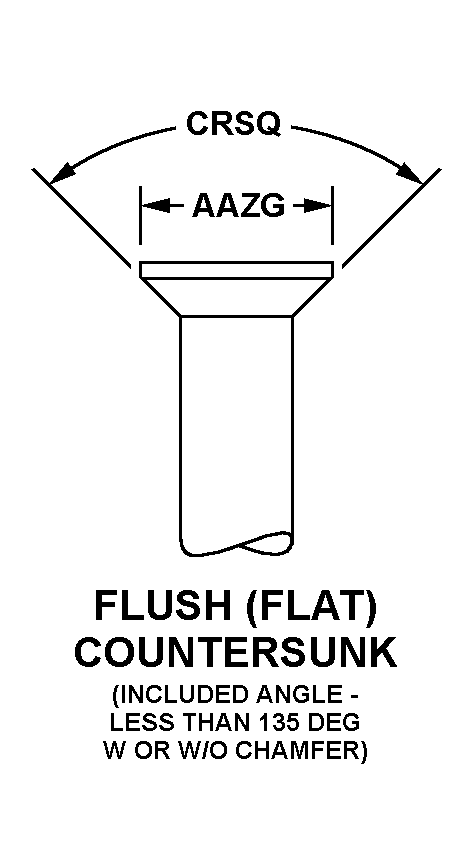

| HEAD STYLE | A9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 1.0068 INCHES MINIMUM AND 1.0139 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |
| FASTENER LENGTH | 2.2375 INCHES MINIMUM AND 2.2575 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.2207 INCHES MINIMUM AND 0.2242 INCHES MAXIMUM |
| SHANK DIAMETER | 0.4990 INCHES MINIMUM AND 0.4995 INCHES MAXIMUM |
| GRIP LENGTH | 1.5575 INCHES MINIMUM AND 1.5675 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.5000 INCHES |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 20 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | CETYL ALCOHOL |
| END ITEM IDENTIFICATION | C-17 |
Restrictions/Controls & Freight Information | NSN 5320-01-392-3536
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5320-01-392-3536
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
