NSN 5320-01-392-3475 NAS1399C3A5, CR267235, CR2672-3-5
Product Details | BLIND RIVET
5320-01-392-3475 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS1399C3A5, CR267235, CR2672-3-5, RV134135, RV1341-3-5, RV1341C35, RV1341C3-5, 10118953 , 1837M69P05, 5320-01-392-3475, 01-392-3475, 5320013923475, 013923475
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 JUN 1994 | 01-392-3475 | 00864 ( RIVET, BLIND ) |

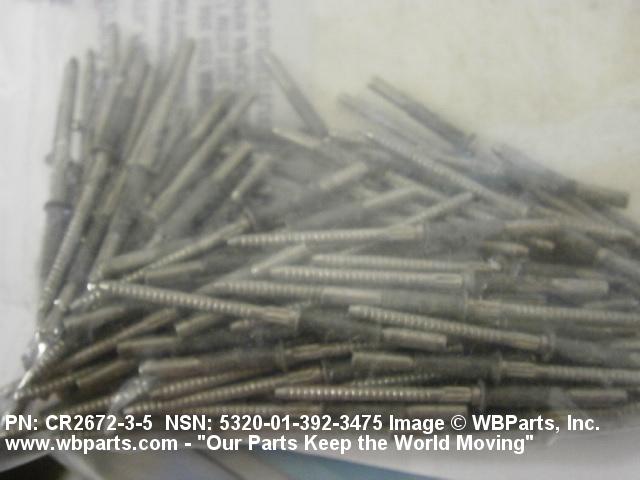

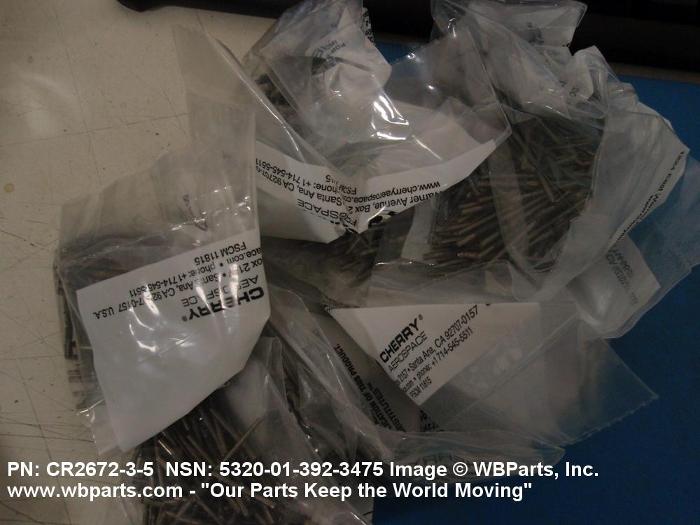

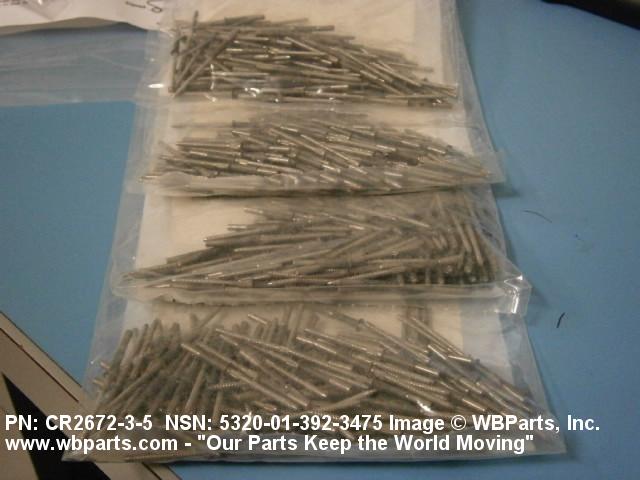

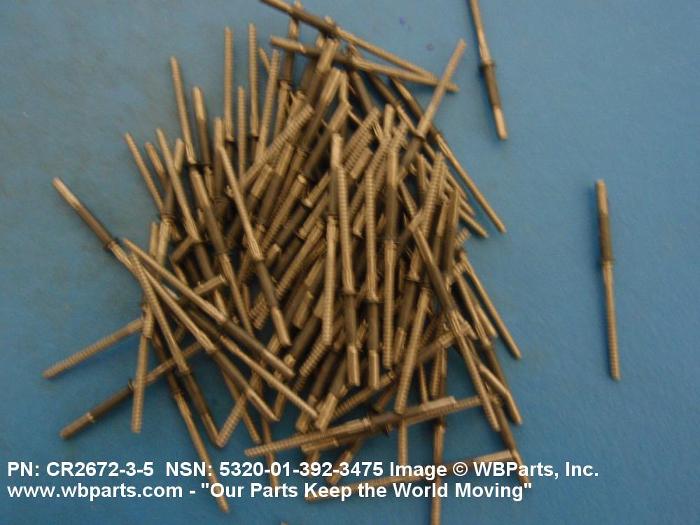

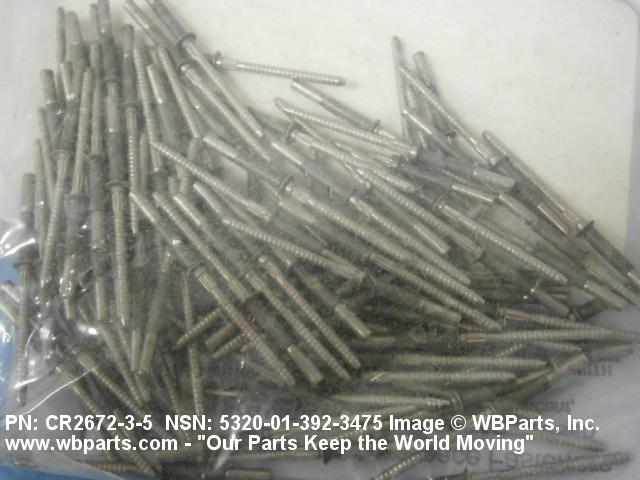

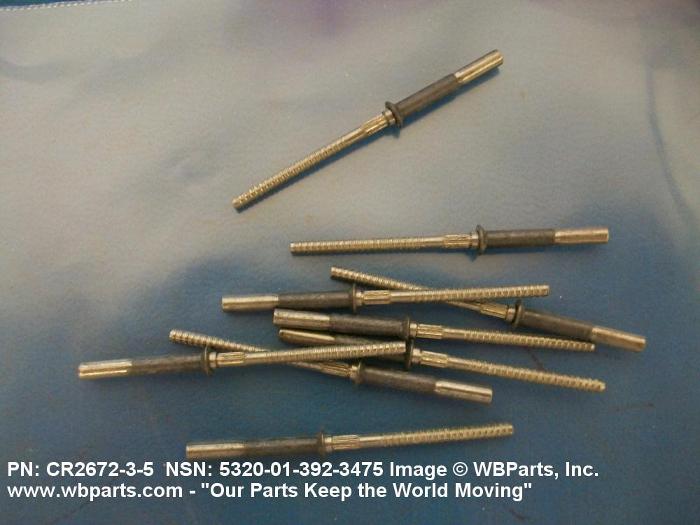

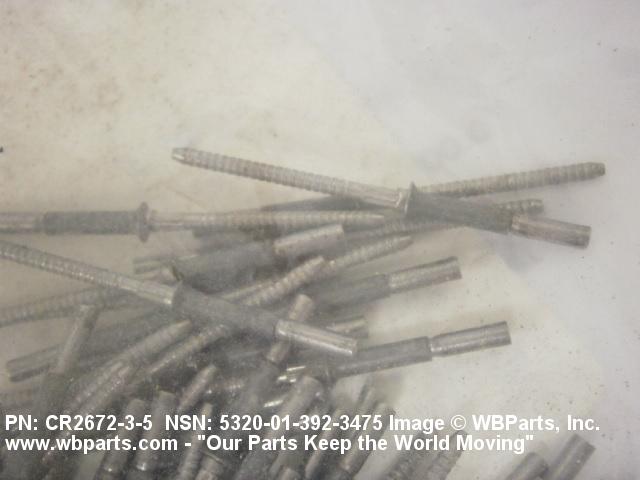

Drawings & Photos | NSN 5320-01-392-3475
Demand History | NSN 5320-01-392-3475
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1399C3A5 | 2024-11-312 | 10000 | United States |
| NAS1399C3A5 | 2024-09-269 | 200 | United States |
| 5320-01-392-3475 | 2022-07-207 | 587 | US |
| 5320-01-392-3475 | 2022-07-206 | 587 | DIBBS |
| 5320-01-392-3475 | 2022-06-152 | 587 | DIBBS |
| NAS1399C3A5 | 2021-04-97 | 50 | DE |
| 5320-01-392-3475 | 2021-03-82 | 60 | DE |
| NAS1399C3A5 | 2020-06-174 | 40 | US |
| NAS1399C3A5 | 2020-06-174 | 40 | US |
| NAS1399C3A5 | 2020-06-174 | 40 | US |
| 5320-01-392-3475 | 2019-08-238 | 200 | DIBBS |
| CR267235 | 2014-04-113 | 200 | US |
| 5320-01-392-3475 | 2013-05-128 | 8 | us |
| 5320-01-392-3475 | 2013-05-128 | 800 | us |
| NAS1399C3A5 | 2013-03-60 | 6 | US |
| CR267235 | 2011-11-319 | 400 | United States |
| 5320-01-392-3475 | 2011-08-230 | 120 | United States |
| 5320-01-392-3475 | 2011-08-230 | 250 | United States |
| 5320-01-392-3475 | 2011-08-230 | 500 | United States |
| 5320-01-392-3475 | 2011-08-230 | 750 | United States |
| CR267235 | 2011-08-223 | 400 | United States |
| CR267235 | 2011-07-195 | 700 | United States |
| 5320-01-392-3475 | 2009-05-147 | 55 | DIBBS |
| NAS1399C3A5 | 2009-05-126 | 100 | Israel |
| NAS1399C3A5 | 2008-08-225 | 72 | US |
Cross Reference | NSN 5320-01-392-3475
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1837M69P05 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| CR2672-3-5 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| NAS1399C3A5 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| RV1341-3-5 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| RV1341C3-5 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-392-3475
Related Products | NSN 5320-01-392-3475
Technical Data | NSN 5320-01-392-3475
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY 400 OR NICKEL ALLOY R-405 LOCKING RING IRON ALLOY 660 SLEEVE IRON ALLOY 660 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281 FED SPEC ALL MATERIAL RESPONSES LOCKING RING AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | PASSIVATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.175 INCHES MINIMUM AND 0.183 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 98.5 DEGREES MINIMUM AND 101.5 DEGREES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| SHANK DIAMETER | 0.093 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| GRIP LENGTH | 0.251 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| MANUFACTURERS CODE | 07482 |
| MFR SOURCE CONTROLLING REFERENCE | 1837M69P05 |
Restrictions/Controls & Freight Information | NSN 5320-01-392-3475
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096320 | RIVETS I/S NICKEL PLATED BUFFED |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-392-3475
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
