NSN 5320-01-388-6264 MS9403131, MS9403-131, 01-388-6264
Product Details | SOLID RIVET
5320-01-388-6264 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS9403131, MS9403-131, 5320-01-388-6264, 01-388-6264, 5320013886264, 013886264
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 APR 1994 | 01-388-6264 | 00861 ( RIVET, SOLID ) |
Drawings & Photos | NSN 5320-01-388-6264
Cross Reference | NSN 5320-01-388-6264
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS9403-131 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-388-6264
Related Products | NSN 5320-01-388-6264
Technical Data | NSN 5320-01-388-6264
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HEAT TREATMENT | SOLUTION HEAT TREATED AND QUENCH HARDENED OVERALL |
| SHEAR STRENGTH | 80000 DOUBLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.238 INCHES MINIMUM AND 0.262 INCHES MAXIMUM |

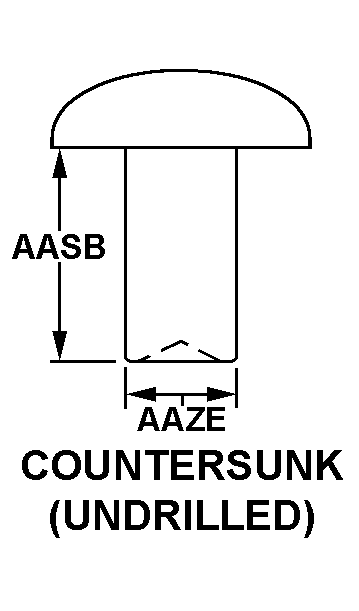

| SHANK STYLE | D5 COUNTERSUNK |
