NSN 5320-01-368-3753 NAS4450S0819, NAS4450S08-19, 01-368-3753
Product Details | PIN-RIVET
5320-01-368-3753 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: NAS4450S0819, NAS4450S08-19, 5320-01-368-3753, 01-368-3753, 5320013683753, 013683753
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 NOV 1992 | 01-368-3753 | 67165 ( PIN-RIVET ) |

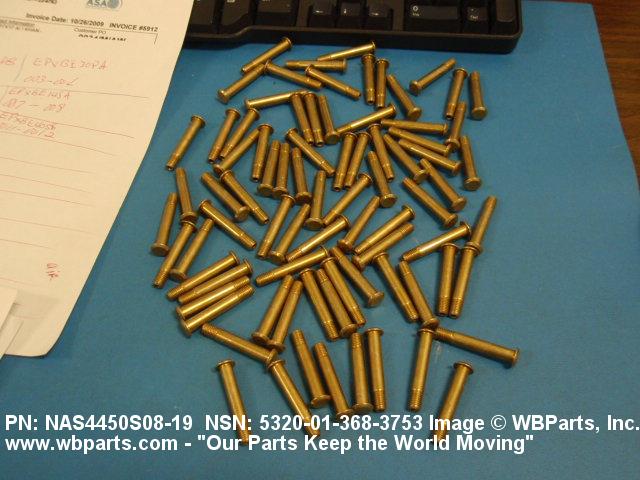

Drawings & Photos | NSN 5320-01-368-3753
Demand History | NSN 5320-01-368-3753
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-368-3753 | 2016-12-361 | 989 | DIBBS |
| NAS4450S0819 | 2011-01-03 | 20 | KR |
| NAS4450S0819 | 2010-04-95 | 46 | United States |
| NAS4450S0819 | 2009-10-303 | 80 | US |
| NAS4450S0819 | 2009-10-300 | 80 | United States |
Cross Reference | NSN 5320-01-368-3753
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS4450S08-19 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-368-3753
Related Products | NSN 5320-01-368-3753
Technical Data | NSN 5320-01-368-3753
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 OR STEEL COMP 4340 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 108000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | A34 FLAT CHAMFER |
| HEAD HEIGHT | 0.061 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.398 INCHES MINIMUM AND 0.413 INCHES MAXIMUM |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |
| FASTENER LENGTH | 1.536 INCHES MINIMUM AND 1.576 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.0947 INCHES MINIMUM AND 0.0967 INCHES MAXIMUM |
| SHANK DIAMETER | 0.2485 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| GRIP LENGTH | 1.126 INCHES MINIMUM AND 1.188 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 28 |
| THREAD DIRECTION | RIGHT-HAND |
Restrictions/Controls & Freight Information | NSN 5320-01-368-3753
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
