Product Details | BLIND RIVET

5320-01-358-9274 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: PLT108753, PLT1087-5-3, 10118921 , 3M1121083, 3M1121-08-3, 5320-01-358-9274, 01-358-9274, 5320013589274, 013589274

Hardware and Abrasives | Rivets

Supply Group (FSG) NSN Assign. NIIN
53 23 MAY 1992 01-358-9274

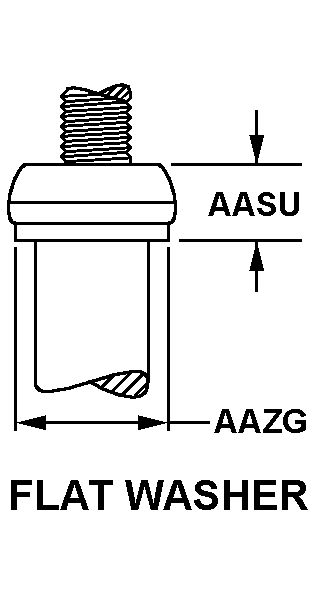

Drawings & Photos | NSN 5320-01-358-9274


Demand History | NSN 5320-01-358-9274

Part Number Request Date QTY Origin
3M1121-08-3 2020-10-281 567 DIBBS
PLT1087-5-3 2020-10-281 567 DIBBS
3M1121-08-3 2019-07-188 810 DIBBS
PLT1087-5-3 2019-07-188 810 DIBBS
3M1121-08-3 2019-03-85 1478 DIBBS
PLT1087-5-3 2019-03-85 1478 DIBBS
3M1121-08-3 2019-03-77 1478 DIBBS
PLT1087-5-3 2019-03-77 1478 DIBBS
5320-01-358-9274 2015-07-182 627 DIBBS
5320-01-358-9274 2015-05-133 107 DIBBS
5320-01-358-9274 2015-05-125 105 DIBBS
5320-01-358-9274 2015-04-120 151 DIBBS
5320-01-358-9274 2015-04-104 63 DIBBS
5320-01-358-9274 2015-02-39 63 DIBBS
5320-01-358-9274 2014-04-93 37 DIBBS
5320-01-358-9274 2014-03-82 37 DIBBS

Cross Reference | NSN 5320-01-358-9274

Part Number Cage Code Manufacturer
3M1121-08-3 76301 BOEING COMPANY, THE DBA BOEING
PLT1087-5-3 92215 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
PLT1087-5-3 98524 MONOGRAM AEROSPACE FASTENERS, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-358-9274

Technical Data | NSN 5320-01-358-9274

Characteristic Specifications
MATERIAL TITANIUM ALLOY UNS R56400 BOLT TITANIUM ALLOY UNS R56400 NUT STEEL COMP 304 OR STEEL COMP 304L SLEEVE
MATERIAL DOCUMENT AND CLASSIFICATION AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE BOLT AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE NUT
HEAD STYLE C37 LOW PROFILE
HEAD HEIGHT 0.0610 INCHES MINIMUM AND 0.0960 INCHES MAXIMUM
HEAD MAJOR DIAMETER 0.2440 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM
SHANK STYLE D34 THREADED SELF-PLUGGING SHANK W/SLEEVE
FASTENER LENGTH 0.8580 INCHES NOMINAL
SHANK DIAMETER 0.1675 INCHES MINIMUM AND 0.1680 INCHES MAXIMUM
GRIP LENGTH 0.1570 INCHES MINIMUM AND 0.2190 INCHES MAXIMUM
EXPANSION DEVICE THREADED STEM

Restrictions/Controls & Freight Information | NSN 5320-01-358-9274

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 106510 RIVETS I/S PLAIN/GALVANIZED ETC
Less than car load rating
Less than truck load rating U 50.0
Water commodity Code 713 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
