NSN 5320-01-351-0494 HL754JT146, HL754JT-14-6, GB511GD76
Product Details | PIN-RIVET
5320-01-351-0494 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: HL754JT146, HL754JT-14-6, GB511GD76, GB511GD7-6, 5320-01-351-0494, 01-351-0494, 5320013510494, 013510494
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 DEC 1991 | 01-351-0494 | 67165 ( PIN-RIVET ) |

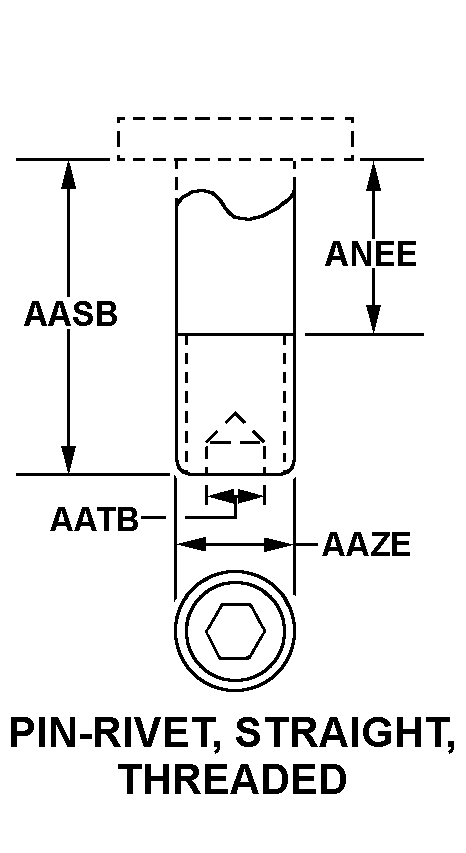

Drawings & Photos | NSN 5320-01-351-0494
Cross Reference | NSN 5320-01-351-0494
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GB511GD7-6 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| GB511GD7-6 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL754JT-14-6 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL754JT-14-6 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL754JT-14-6 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL754JT-14-6 | 73197 | HI-SHEAR CORPORATION |
| HL754JT-14-6 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL754JT-14-6 | L4528 | LISI AEROSPACE CANADA CORP |
