NSN 5320-01-337-7103 AL10AG67, AL10AG-6-7, BACB30VT6K7

Product Details | PIN-RIVET

5320-01-337-7103 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.

Part Alternates: AL10AG67, AL10AG-6-7, BACB30VT6K7, HST10AG67, HST10AG-6-7, WC10AG67, WC10AG-6-7, 10015967, 100-159-6-7, 5320-01-337-7103, 01-337-7103, 5320013377103, 013377103

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	21 APR 1991	01-337-7103	67165 ( PIN-RIVET )

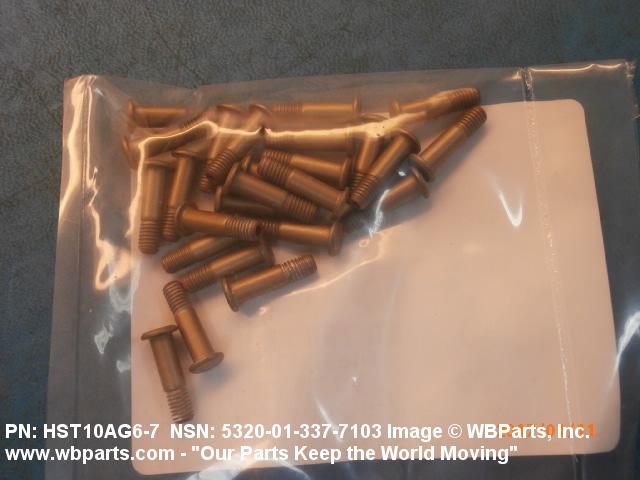

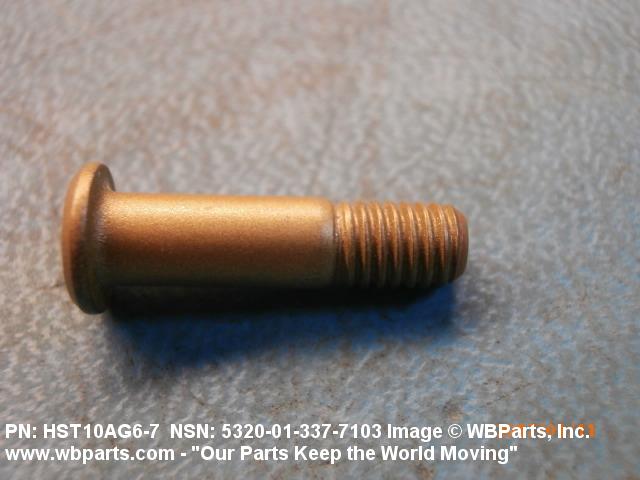

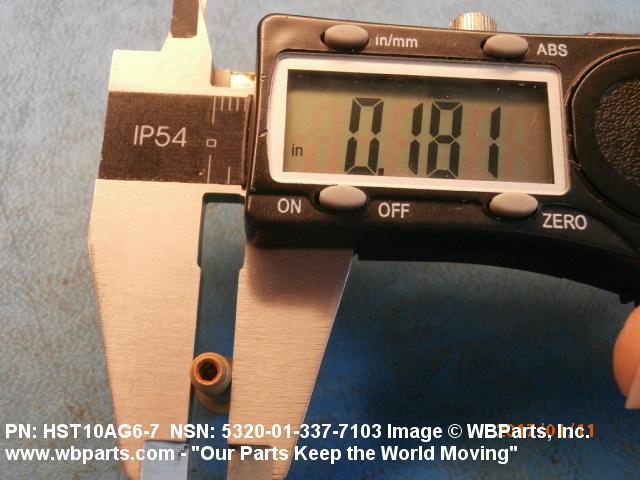

Drawings & Photos | NSN 5320-01-337-7103

Part Number	Request Date	QTY	Origin
HST10AG67	2022-01-31	100	United States
HST10AG67	2022-01-28	1000	United States
BACB30VT6K7	2021-04-96	198	United States
HST10AG67	2020-04-120	570	China
BACB30VT6K7	2019-09-255	2991	DIBBS
HST10AG-6-7	2019-09-255	2991	DIBBS
WC10AG-6-7	2019-09-255	2991	DIBBS
BACB30VT6K7	2019-07-198	2438	DIBBS
HST10AG-6-7	2019-07-198	2438	DIBBS
WC10AG-6-7	2019-07-198	2438	DIBBS
BACB30VT6K7	2019-05-132	2476	DIBBS
HST10AG-6-7	2019-05-132	2476	DIBBS
WC10AG-6-7	2019-05-132	2476	DIBBS
5320-01-337-7103	2017-01-09	25	US
BACB30VT6K7	2014-04-113	9	United States
HST10AG67	2012-08-227	16255	US
HST10AG67	2011-11-319	3450	HK
HST10AG67	2011-11-319	3450	HK
5320-01-337-7103	2011-09-273	2629	DIBBS
5320-01-337-7103	2011-09-255	0	DIBBS
5320-01-337-7103	2011-02-46	1713	DIBBS
5320-01-337-7103	2010-04-100	118	DIBBS
5320-01-337-7103	2009-11-329	1459	DIBBS
5320-01-337-7103	2008-11-322	1046	DIBBS
5320-01-337-7103	2008-08-234	375	DIBBS
5320-01-337-7103	2008-07-206	250	us
5320-01-337-7103	2008-03-80	673	DIBBS

Cross Reference | NSN 5320-01-337-7103

Part Number	Cage Code	Manufacturer
100-159-6-7	97499	BELL HELICOPTER TEXTRON INC.
AL10AG-6-7	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
BACB30VT6K7	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
BACB30VT6K7	81205	THE BOEING COMPANY DBA BOEING
HST10AG-6-7	0PTK6	SPS TECHNOLOGIES INC
HST10AG-6-7	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HST10AG-6-7	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HST10AG-6-7	5M902	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HST10AG-6-7	73197	HI-SHEAR CORPORATION
HST10AG-6-7	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HST10AG-6-7	L4528	LISI AEROSPACE CANADA CORP
WC10AG-6-7	60516	WEST COAST AEROSPACE INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-337-7103

Compare

Related Products | NSN 5320-01-337-7103

5320-01-337-7104, 5320-01-337-7107, 5320-01-337-7108, 5320-01-337-7109, 5320-01-337-7110

Technical Data | NSN 5320-01-337-7103

Characteristic	Specifications
MATERIAL	TITANIUM ALLOY UNS R56400 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ALUMINUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	HI KOTE 1,CAGEC 73197 MFR REF SINGLE TREATMENT RESPONSE OVERALL
SHEAR STRENGTH	95000 SINGLE POUNDS PER SQUARE INCH

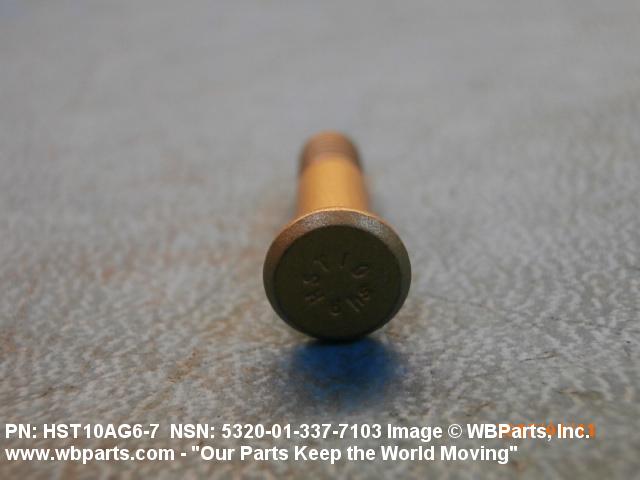

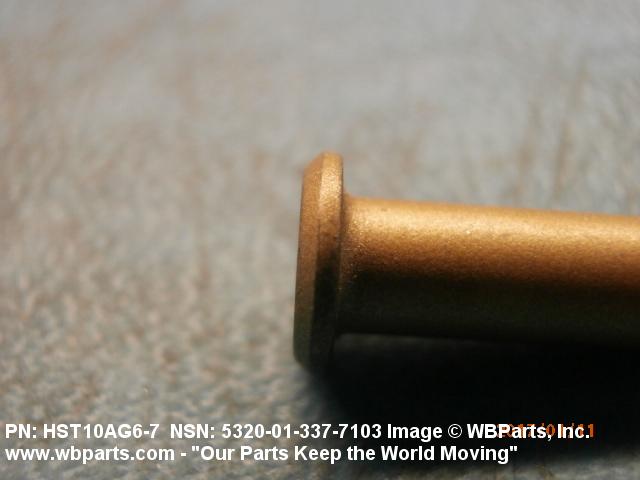

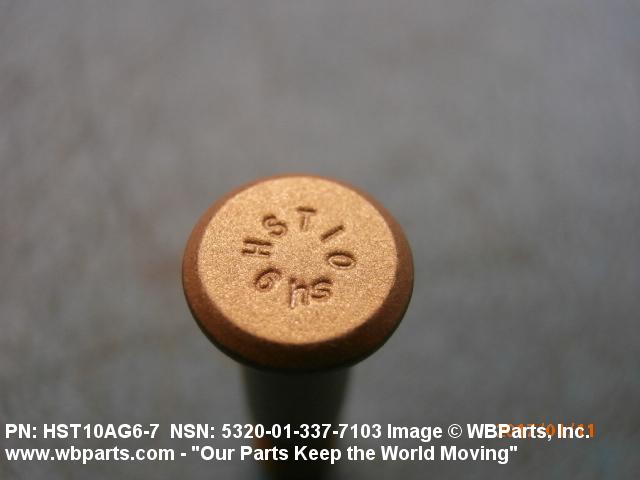

HEAD STYLE	A34 FLAT CHAMFER

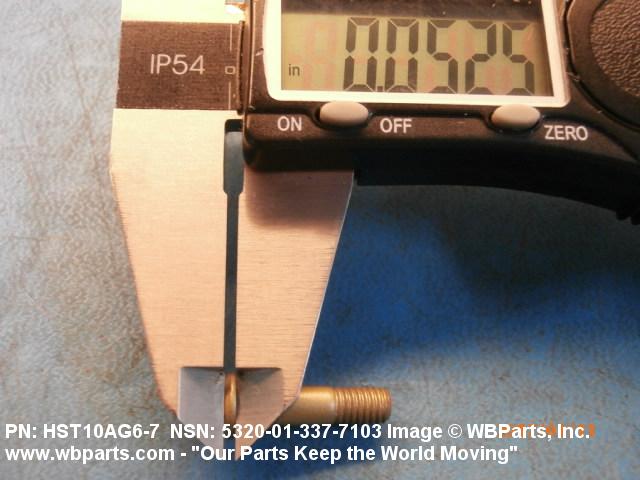

HEAD HEIGHT	0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM

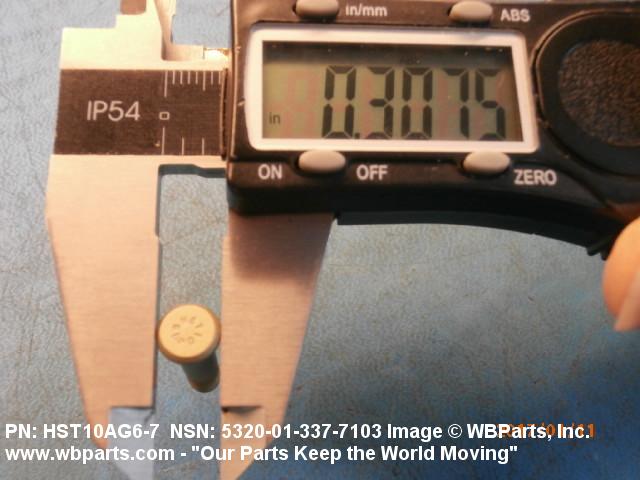

HEAD MAJOR DIAMETER	0.295 INCHES MINIMUM AND 0.315 INCHES MAXIMUM

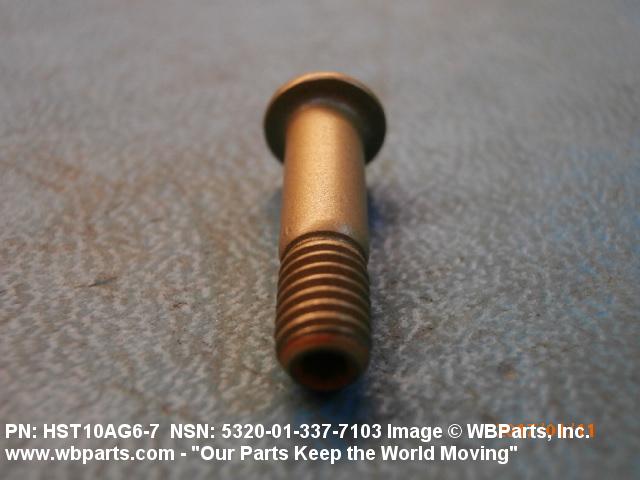

SHANK STYLE	B31 PIN-RIVET, STRAIGHT, THREADED

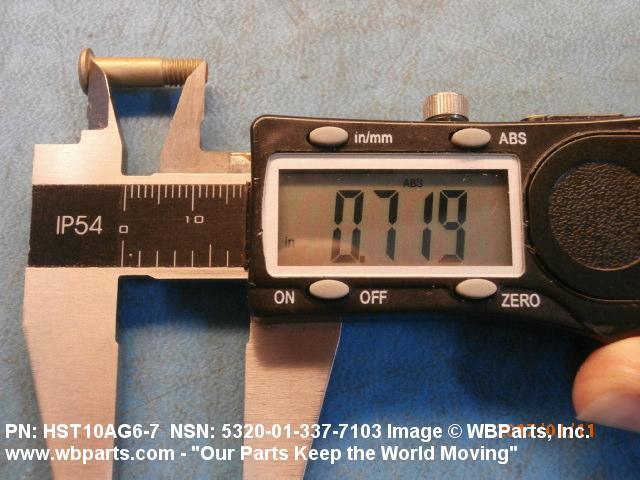

FASTENER LENGTH	0.718 INCHES MINIMUM AND 0.738 INCHES MAXIMUM

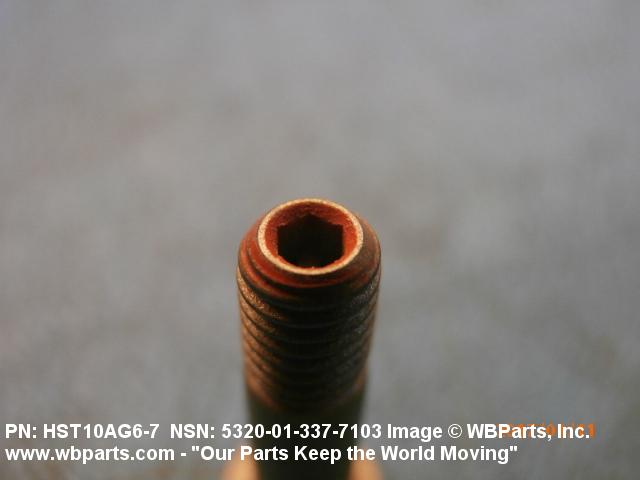

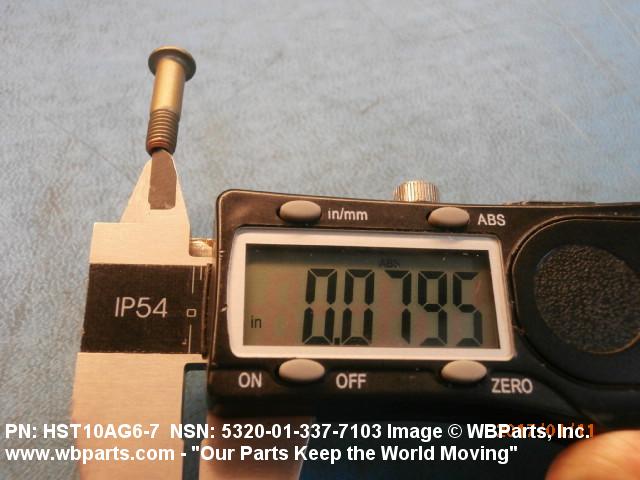

WIDTH BETWEEN FLATS	0.0791 INCHES MINIMUM AND 0.0806 INCHES MAXIMUM

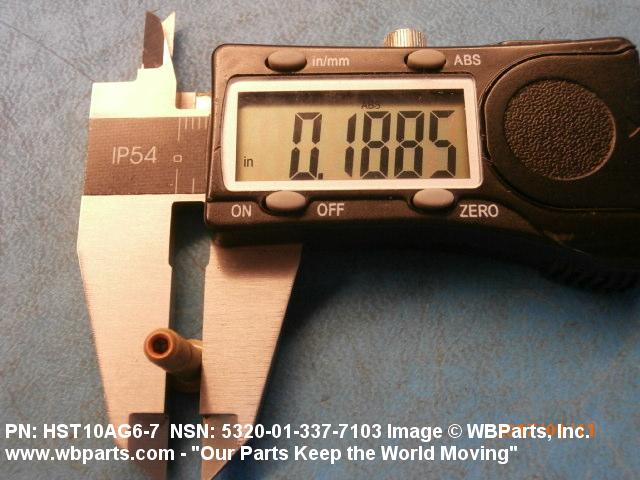

SHANK DIAMETER	0.1885 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM

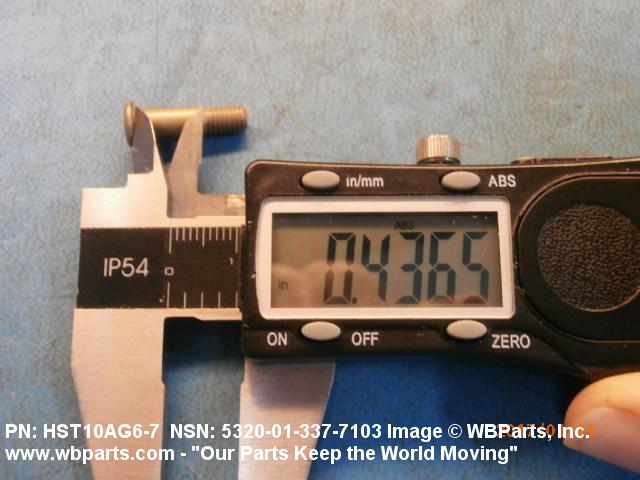

GRIP LENGTH	0.433 INCHES MINIMUM AND 0.443 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD CLASS	3A

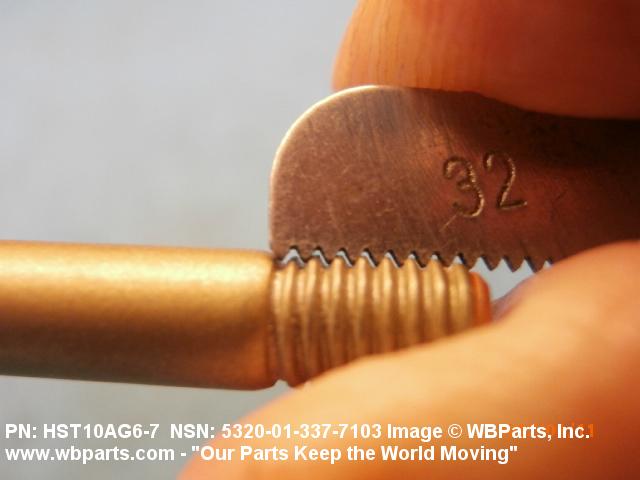

THREAD QUANTITY PER INCH	32
THREAD DIRECTION	RIGHT-HAND
LUBRICATION	CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP
SPECIAL FEATURES	COLOR CODE ORANGE ON THREAD END

Restrictions/Controls & Freight Information | NSN 5320-01-337-7103

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	096320	RIVETS I/S NICKEL PLATED BUFFED
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-337-7103

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
