NSN 5320-01-330-6382 PLT6011AA54, PLT6011AA5-4, 03A328V054
Product Details | BLIND RIVET
5320-01-330-6382 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: PLT6011AA54, PLT6011AA5-4, 03A328V054, 03A328V05-4, 5320-01-330-6382, 01-330-6382, 5320013306382, 013306382
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 DEC 1990 | 01-330-6382 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-01-330-6382
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-330-6382
Related Products | NSN 5320-01-330-6382
Technical Data | NSN 5320-01-330-6382
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R56400 NUT STEEL COMP 303SE OR STEEL COMP 304 SLEEVE TITANIUM ALLOY UNS R56400 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4928 ASSN STD 1ST MATERIAL RESPONSE OR AMS 4967 ASSN STD 2ND MATERIAL RESPONSE NUT QQ-S-763 FED SPEC 1ST MATERIAL RESPONSE OR AMS 5639 ASSN STD 2ND MATERIAL RESPONSE OR AMS 5641 ASSN STD 3RD MATERIAL RESPONSE SLEEVE AMS 4928 ASSN STD 1ST MATERIAL RESPONSE OR AMS 4967 ASSN STD 2ND MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | PASSIVATE SLEEVE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE |
| HEAD STYLE | C17 HEXAGON |
| HEAD HEIGHT | 0.070 INCHES MINIMUM AND 0.096 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |

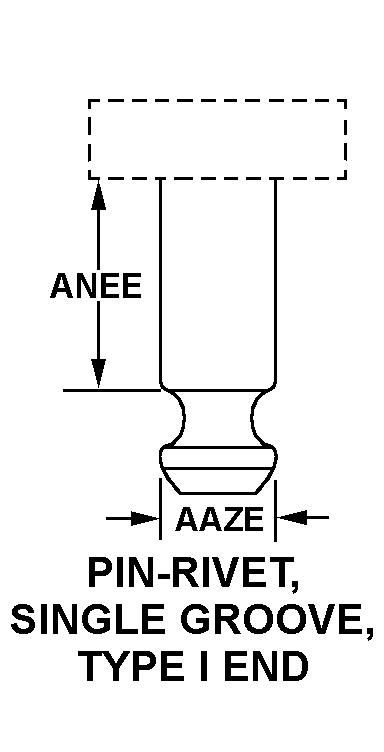

| SHANK STYLE | D28 PIN-RIVET, SINGLE GROOVE, TYPE 1 END |
| FASTENER LENGTH | ANY ACCEPTABLE |
| SHANK DIAMETER | 0.1675 INCHES MINIMUM AND 0.1680 INCHES MAXIMUM |
| GRIP LENGTH | 0.220 INCHES MINIMUM AND 0.281 INCHES MAXIMUM |
| EXPANSION DEVICE | THREADED STEM |
| LUBRICATION | DRY FILM OR CETYL ALCOHOL OR PARAFFIN WAX |
| SPECIAL FEATURES | POWDER BLAST TOP SURFACE OF HEAD,REMAINDER OF BODY OPTIONAL |
Restrictions/Controls & Freight Information | NSN 5320-01-330-6382
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
