NSN 5320-01-328-3830 ST3M428C59, ST3M428C5-9, 01-328-3830
Product Details | PIN-RIVET
5320-01-328-3830 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: ST3M428C59, ST3M428C5-9, 5320-01-328-3830, 01-328-3830, 5320013283830, 013283830
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 OCT 1990 | 01-328-3830 | 67165 ( PIN-RIVET ) |
Drawings & Photos | NSN 5320-01-328-3830
Cross Reference | NSN 5320-01-328-3830
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST3M428C5-9 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| ST3M428C5-9 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| ST3M428C5-9 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| ST3M428C5-9 | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| ST3M428C5-9 | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST3M428C5-9 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| ST3M428C5-9 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-328-3830
Related Products | NSN 5320-01-328-3830
Technical Data | NSN 5320-01-328-3830
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HEAD STYLE | A21 STRAIGHT PAN |
| HEAD HEIGHT | 0.036 INCHES MINIMUM AND 0.048 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.249 INCHES MAXIMUM |

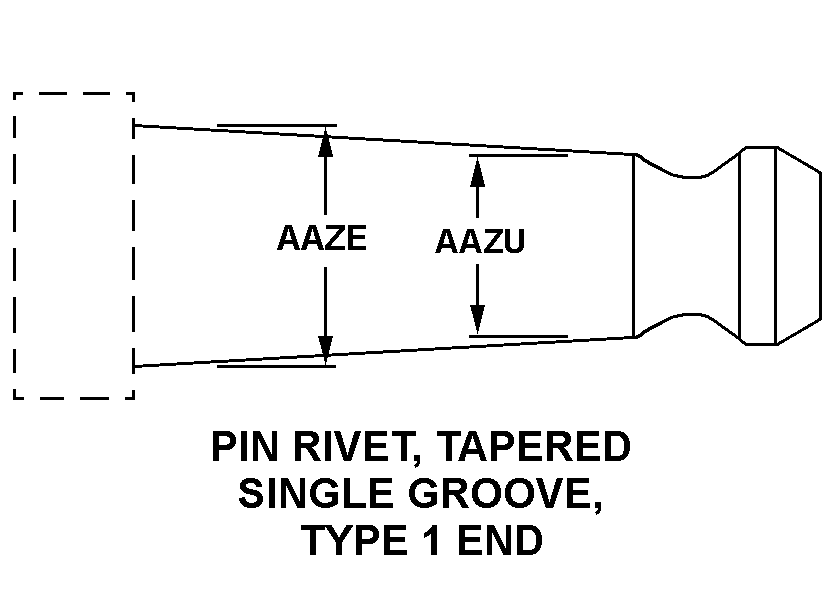

| SHANK STYLE | B47 PIN RIVET, TAPERED SINGLE GROOVE, TYPE 1 END |
