NSN 5320-01-328-1720 MBF2111C8550, MBF2111C8-550 , 03A148V08550
Product Details | BLIND RIVET
5320-01-328-1720 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MBF2111C8550, MBF2111C8-550 , 03A148V08550, 03A148V08-550, 5320-01-328-1720, 01-328-1720, 5320013281720, 013281720
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 OCT 1990 | 01-328-1720 | 00864 ( RIVET, BLIND ) |

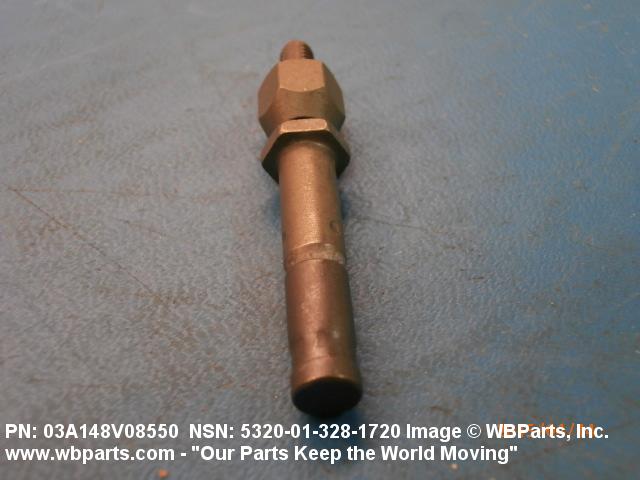

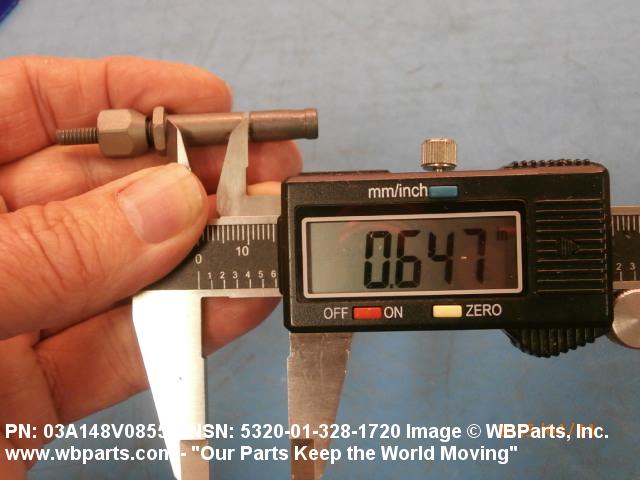

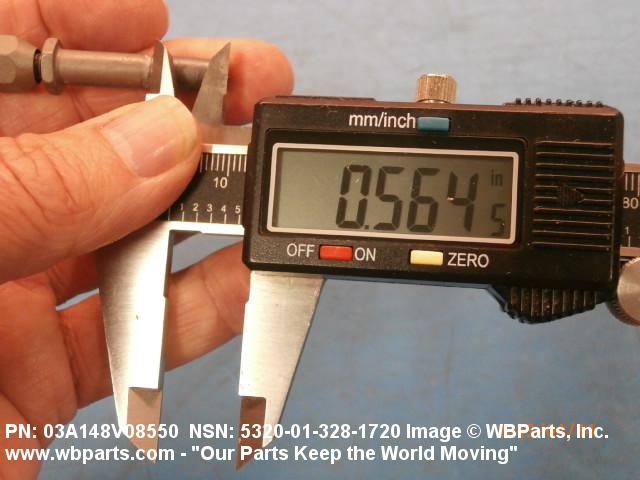

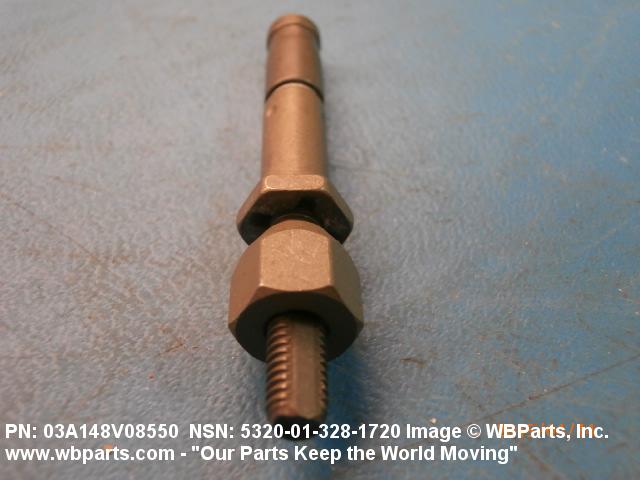

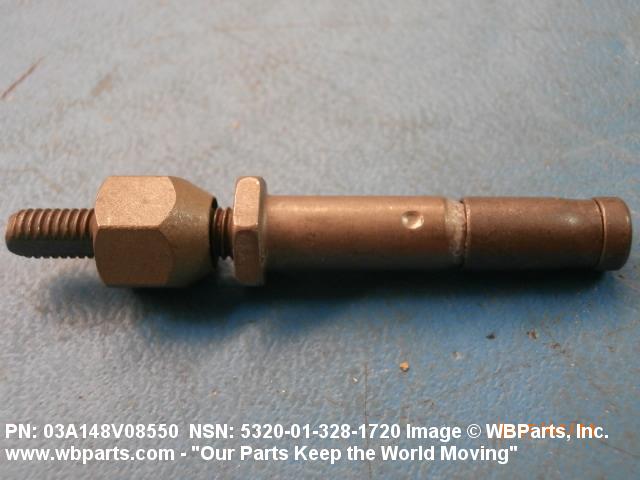

Drawings & Photos | NSN 5320-01-328-1720
Demand History | NSN 5320-01-328-1720
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-328-1720 | 2015-11-324 | 38 | DIBBS |
| 5320-01-328-1720 | 2015-11-313 | 38 | DIBBS |
| 5320-01-328-1720 | 2015-10-287 | 38 | DIBBS |
| 03A148V08550 | 2015-03-69 | 38 | us |
| 03A148V08550 | 2013-01-08 | 38 | United States |
| 5320-01-328-1720 | 2012-05-146 | 40 | DIBBS |
| 03A148V08550 | 2012-05-125 | 40 | United States |
Cross Reference | NSN 5320-01-328-1720
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 03A148V08-550 | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| MBF2111C8-550 | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MBF2111C8-550 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MBF2111C8-550 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-328-1720
Related Products | NSN 5320-01-328-1720
Technical Data | NSN 5320-01-328-1720
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY NUT STEEL COMP 304 SLEEVE IRON ALLOY 660 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-T-9047 MIL SPEC 1ST MATERIAL RESPONSE OR AMS 4928 ASSN STD 2ND MATERIAL RESPONSE OR AMS 4967 ASSN STD 3RD MATERIAL RESPONSE NUT AMS 5639 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | PASSIVATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| HEAD STYLE | C17 HEXAGON |

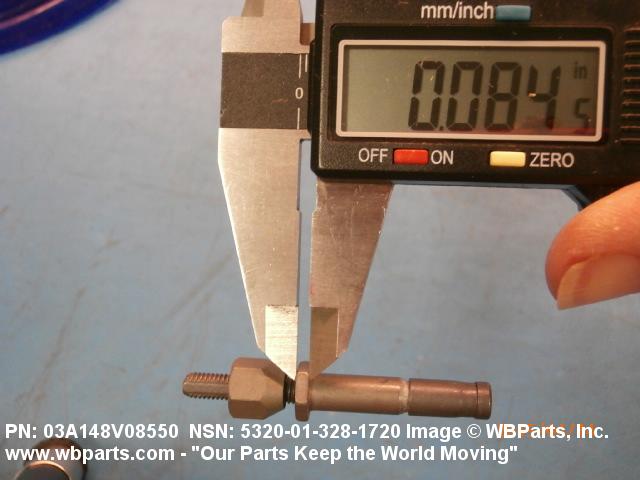

| HEAD HEIGHT | 0.083 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |

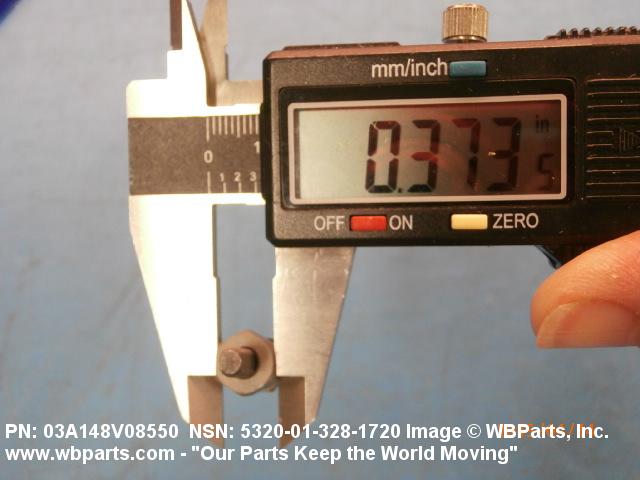

| WIDTH ACROSS FLATS | 0.367 INCHES MINIMUM AND 0.376 INCHES MAXIMUM |
| SHANK STYLE | D34 THREADED SELF-PLUGGING SHANK W/SLEEVE |
| FASTENER LENGTH | ANY ACCEPTABLE |

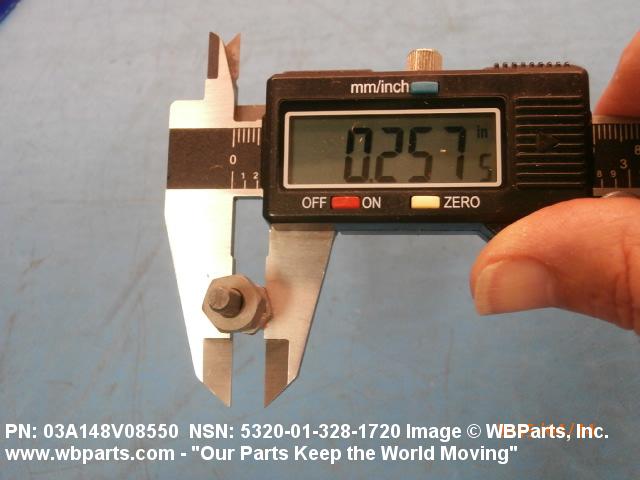

| SHANK DIAMETER | 0.2575 INCHES MINIMUM AND 0.2595 INCHES MAXIMUM |
| GRIP LENGTH | 0.500 INCHES MINIMUM AND 0.550 INCHES MAXIMUM |
| EXPANSION DEVICE | THREADED STEM |
| LUBRICATION | DRY FILM OR CETYL ALCOHOL OR PARAFFIN WAX |
| SPECIAL FEATURES | GRIT BLAST TOP OF HEADS |
Restrictions/Controls & Freight Information | NSN 5320-01-328-1720
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-328-1720
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
