NSN 5320-01-289-6073 MS20470E66, MS20470E6-6, PR48266
Product Details | SOLID RIVET

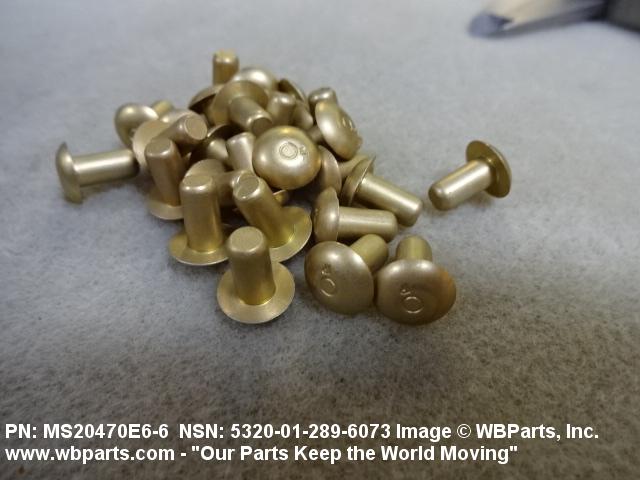

5320-01-289-6073 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20470E66, MS20470E6-6, PR48266, PR-4826-6, 10118816 , 11017566, 110-175-6-6, 5320-01-289-6073, 01-289-6073, 5320012896073, 012896073
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 NOV 1988 | 01-289-6073 | 00861 ( RIVET, SOLID ) |
Drawings & Photos | NSN 5320-01-289-6073
Demand History | NSN 5320-01-289-6073
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-289-6073 | 2019-01-11 | 555 | DIBBS |
| 5320-01-289-6073 | 2019-01-03 | 555 | DIBBS |
| MS20470E66 | 2018-09-270 | 1 | United States |
| 5320-01-289-6073 | 2017-10-298 | 200 | SG |
| 5320-01-289-6073 | 2017-02-52 | 226 | DIBBS |
| 5320-01-289-6073 | 2016-09-267 | 650 | US |
| 5320-01-289-6073 | 2016-08-214 | 133 | DIBBS |
| 5320-01-289-6073 | 2016-06-162 | 86 | DIBBS |
| 5320-01-289-6073 | 2016-06-154 | 86 | DIBBS |
Cross Reference | NSN 5320-01-289-6073
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-289-6073
Related Products | NSN 5320-01-289-6073
Technical Data | NSN 5320-01-289-6073
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 COMP 7050 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 CL 1A MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAT TREATMENT | T-73 SOLUTION HEAT TREATED OVERALL |
| SHEAR STRENGTH | 41000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C28 UNIVERSAL |

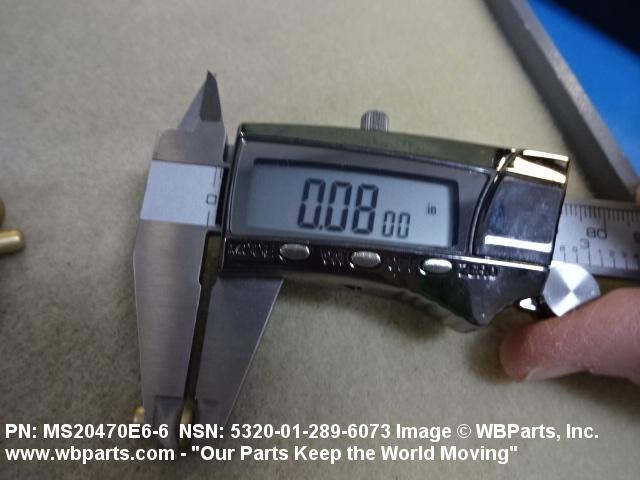

| HEAD HEIGHT | 0.080 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.356 INCHES MINIMUM AND 0.394 INCHES MAXIMUM |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |

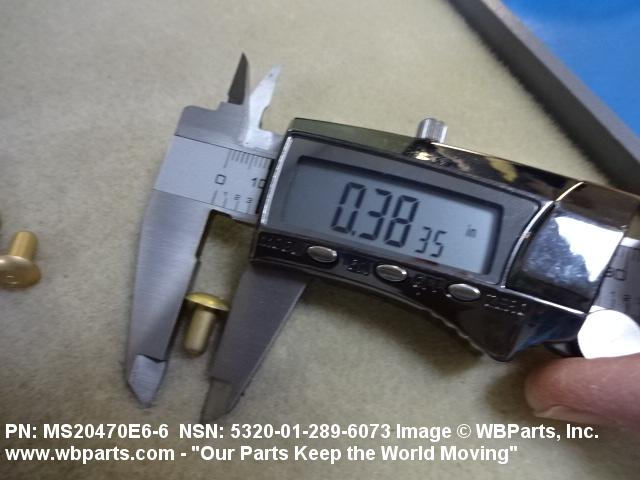

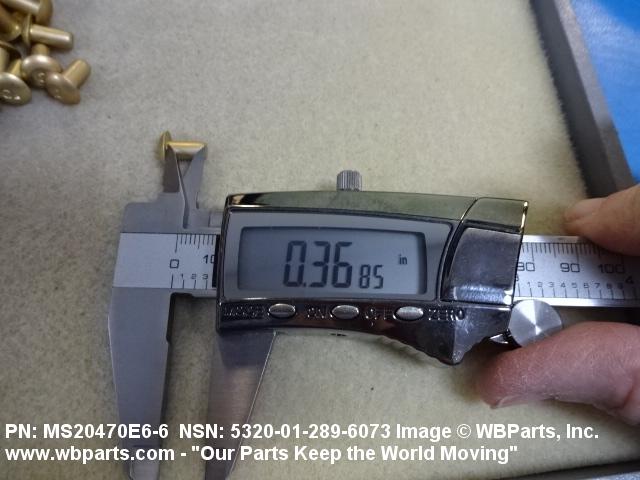

| FASTENER LENGTH | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |

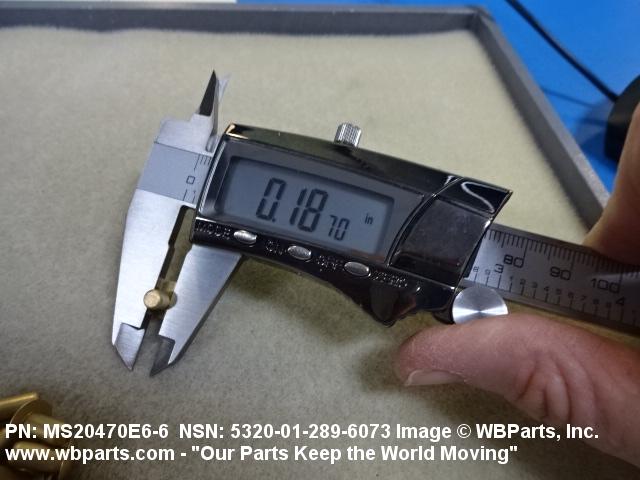

| SHANK DIAMETER | 0.186 INCHES MINIMUM AND 0.191 INCHES MAXIMUM |
